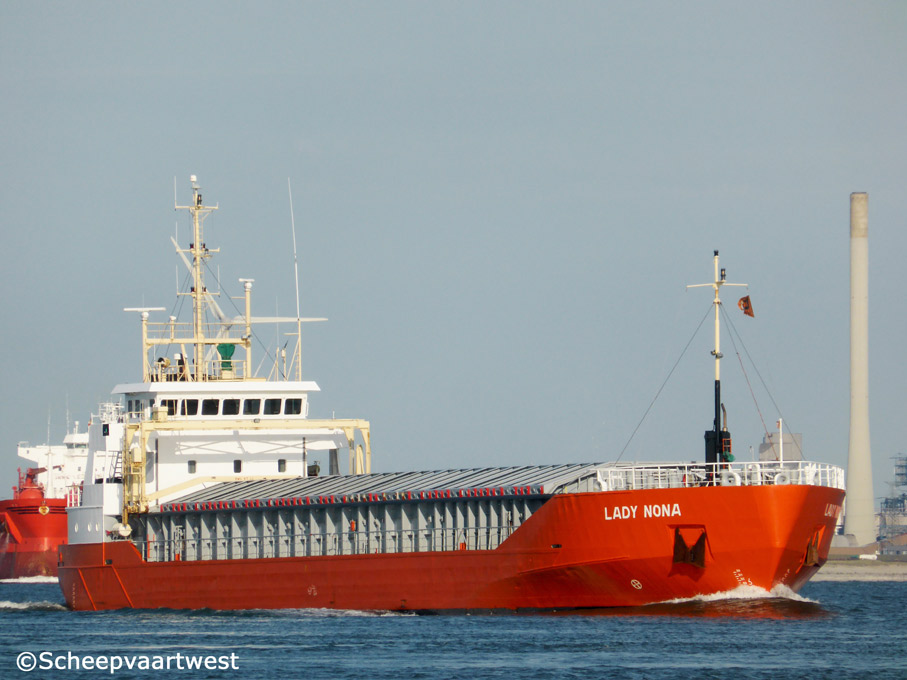

Westerschelde 04 August 2014 |
 |

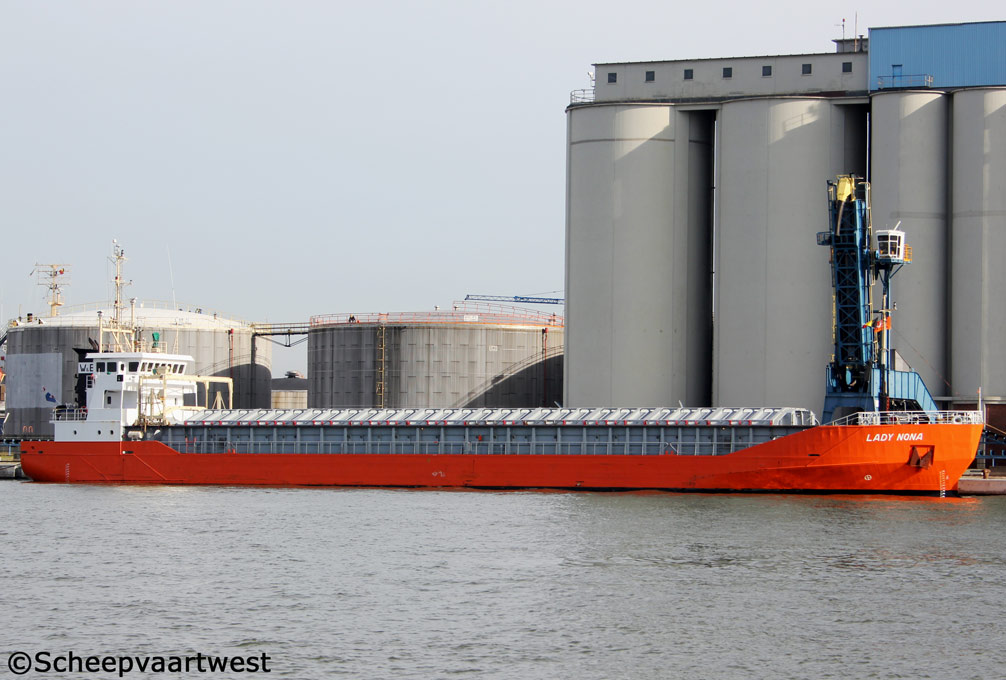

| Antwerpen 31/10/14 |
|
Name |
LADY NONA |
|
Previous names |
2002 - 10/2008 Nona |
|
Type |
Multi-Purpose general dry cargo ship |
|
IMO-number |
9243875 |
|
Call sign |
PBGO |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
1.978 t |
|
DWT |
Summer: 3.002 t |
|
DWCC |
Summer: 2.985 t Winter: 2.895 t |
|
NT |
784 t |
|
Length |
79,98 m overall 76,20 m between perpendiculars |
|
Breadth |
12,16 m extreme |
|
Draught |
Summer: 5,00 m |
|
Air draft |
22,00 m in ballast |
|
Depth |
6,45 m moulded |
|
Speed |
Max.: 13,1 knots |
|
Built |
2002 |
|
Keel laid |
2001 |
|
Launch date |
27/04/2002 |
|
Date of completion |
07/06/2002 |
|
Builder |
Koninklijke Niestern Sander B.V. Delfzijl The Netherlands |
|
Yard number |
910 |
|
Hull material |
Steel |
|
Watertight bulkheads |
4 |
|
Number of decks |
1 |
|
Main engine |
1x Caterpillar 3512BHD - 4 stroke single acting 12 cylinder 170 x 215 mm diesel engine - 1.249 kW / 1.700 hp at 1.600 rpm Start type: Electrical starter Built: 2001 Manufacturer: Caterpillar Tractor Company Inc., Peoria (Illinois) - U.S.A. |
|
Gearbox |
1x Reintjes WAF-1172 - Reduction: 7,048:1 |
|
Propellers |
1x Solid propeller - aft at 227 rpm Diameter: 2.600 mm - 5 blades |
|
Electric installations |
400/230 Volt 50 Hz |
|
Generators |
1x Sisu Diesel 645DSBIMG - 6 cylinder 111 x 145 mm diesel engine 180 kW coupled with Stamford HC.M434D1 generator 275 kVA at 1.500 rpm 1x Sisu Diesel 634DSBIG - 6 cylinder 108 x 134 mm diesel engine 150 kW coupled with Stamford UC.M274H1 generator 175 kVA at 1.500 rpm 1x Sisu Diesel 420DSRIG - 4 cylinder 108 x 120 mm diesel engine 90 kW coupled with Stamford generator 97 kVA at 1.500 rpm Built: 2001 Manufacturer: Sisu Diesel |
|
Bow thruster |
1x Promac - 180 kW |
|
Number of holds |
1 Hold 1: 49,70 x 10,00 x 7,83/8,82 m |
|
Hold capacity |
Grain/bale: 149.584 ft³ / 4.236 m³ |
|
Number of hatches |
1 Hatch 1: 49,70 x 10,00 m |
|
Hatch type |
Pontoon |
|
Timber |
3.000 m³ under deck |
|
Deck strength |
Tanktop: 10 t/m² |
|
Ventilation |
6x Air-changes /h |
|
Tank capacities |
Ballast water: 1.104 m³ Fuel oil: 129 m³ Lubricating Oil: 6 m³ Potable Water: 33 m³ Sewage: 6 m³ Sludge: 5 m³ |
|
Anchor equipment |
2 Weight: 1.195 kg each Length: 220,00 m |
|
Lifting equipment |
1x Gantry crane - SWL 8,0 t 1x Boat crane - SWL 1.580 kg |
|
Manager |
Wijnne & Barends Cargadoors- en Agentuurkantoren BV Handelskade Oost 5 Delfzijl The Netherlands |
|
Owner |
Beheermaatschappij Timberfleet II B.V. Delfzijl The Netherlands |
|
Previous names & shipping companies |
06/2002 - 11/2008 Nona - from C.V. Timberfleet, Delfzijl - The Netherlands 11/2008 - 11/2009 Nona - Beheermaatschappij Timberfleet II B.V., Delfzijl - The Netherlands |
|
Renamed |
11/2019 Balder Chili, Puerto Montt - Call sign: CA7868 |
|
Latest data adjustment |
17 January 2019 |
