Vlissingen 27 October 2014 |
|
Name |

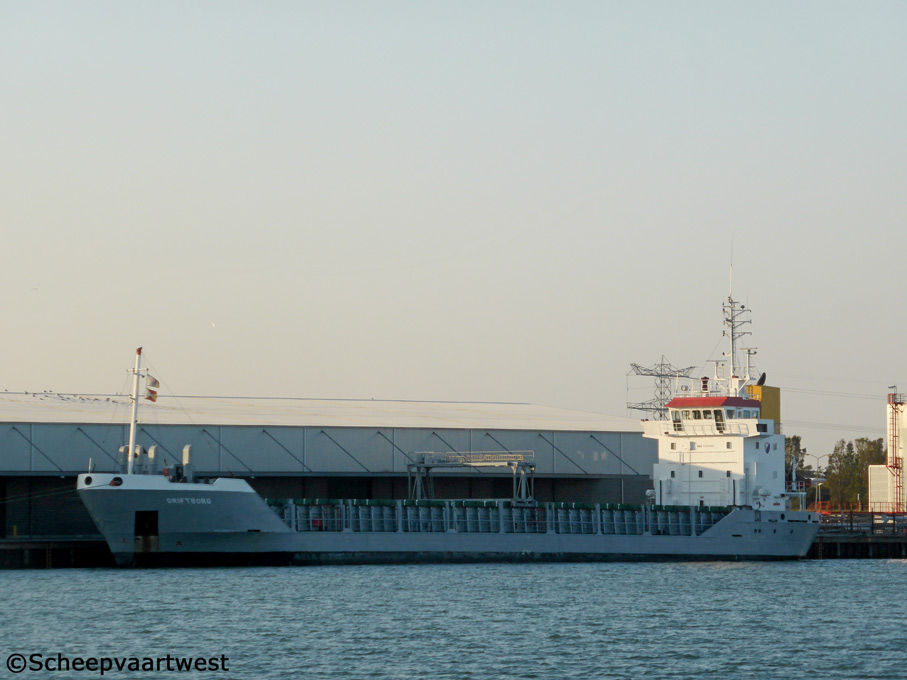

GRIFTBORG |
|
Previous names |
1995 - 09.20012 Griftborg - from m.s. Milena W.Walker K.G., Willemstad - Ned.Antillen - management Wagenborg Shipping B.V., Delfzijl - The Netherlands 09.2012 - 09.2014 Lehmann Fjord |
|
Type |
General cargo ship - Containership |
|
IMO-number |
9116008 |
|
Call sign |
PJAW |
|
Flag |
Curacao |
|
Port of registry |
Willemstad |
|
GT |
2.771 t |
|
DWT |
Summer: 4.149 t |
|
NT |
1.548 t |
|
Number of 20ft containers |
261 |
|
Length |
90,20 m overall 84,98 m between perpendiculars |
|
Breadth |
13,60 m |
|
Draught |
5,71 m |
|
Air draft |
35,10 m |
|
Freeboard |
1.215 mm |
|
Depth |
7,20 m |
|
Speed |
12,0 knots |
|
Built |
1995 |
|
Keel laid |
07.1994 |
|
Launch date |
1995 |
|
Date of completion |
29.03.1995 |
|
Builder |
De Hoop Foxhol (Volharding Shipyard BV) Hoogezand The Netherlands |
|
Yard number |
324 |
|
Hull material |
Steel |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Stork-Werkspoor 8SW280 - 4 stroke single acting 8 cylinder 280 x 300 mm diesel engine - 1.714 kW / 2.040 hp at 900 rpm Built: 1994 Builder: Stork-Wartsila Diesel BV, Zwolle - The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 175 rpm 4 blades |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 300 kVA - 240 kW |
|
Generators |
2x Diesel generatorsets each 141 kVA - 113 kW - 174 hp |
|
Number of holds |
1 |
|
Total capacity of holds |
5.638 m³ |
|
Fuel capacity |
192 m³ |
|
Latest data adjustment |
18 December 2014 |
