Vlissingen 25 February 2012 |
|
Name |

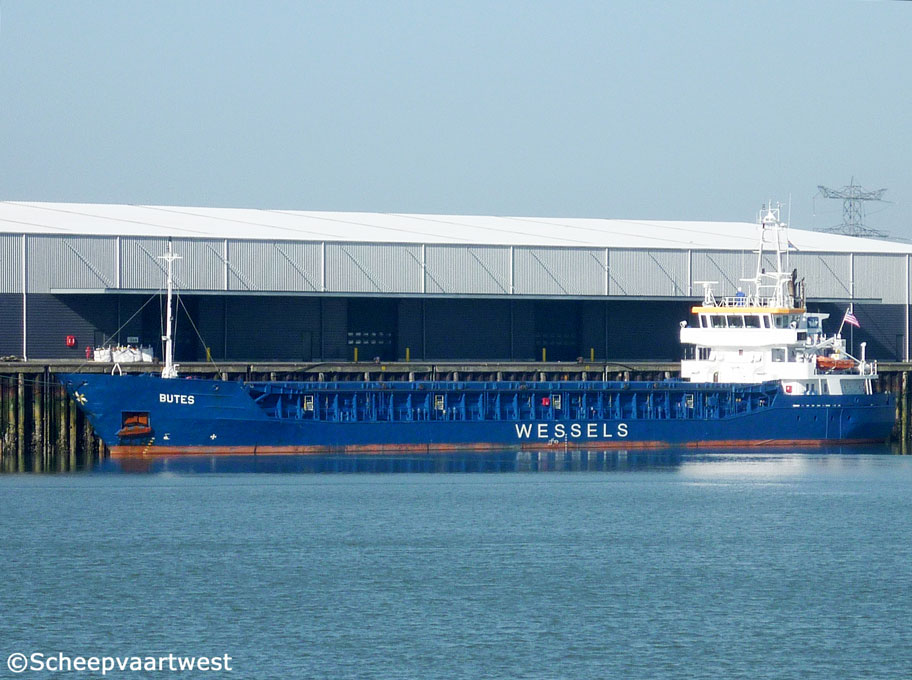

BUTES |
|
Previous names |
2010 - 2011 S.C. Navol |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers Boxshapped seagoing multi-purpose ship |
|
IMO-number |
9409637 |
|
Call sign |
A8UR6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
2.452 t |
|
DWT |
Summer: 3.784 Winter: 3.667 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
On deck: 36 |
|
Length |
87,84 m overall 82,10 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
Summer: 5,60 m Winter: 5,49 m |
|
Air draft |
21,50 m |
|
Forecastle |
5,85 m |
|
Depth |
7,10 m moulded |
|
Speed |
Max: 11,0 knots Service: 9,0 knots |
|
Built |
2010 |
|
Keel laid |
29/06/1998 |
|
Launch date |
03/12/2009 |
|
Date of completion |
30/03/2010 |
|
Builder |
Slovenske Lodenice Komarno a.s. Rolnickej Skoly 1519 945 01 Komarno Slovak Republic |
|
Yard number |
2981 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Movable bulkheads |
2x Moveable bulkheads |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20C - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW at 1.000 rpm Year of Manufacture: 2009 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 260 rpm |
|
Boilers |
1x Water heater, oil fired - 7,5 bar Year of manufacture: 2009 |
|
Bow thruster |
1x 185 kW |
|
Electric installations |
2x Plants each 400/220 V - 230 kVA 1x Plant 400 V - 300 kVA 1x Plant 400 V - 50 kVA 1x Plant 24 V - 50 Ah 2x Plants each 24 V - 50 Ah 1x Plant 24 V - 140 Ah 1x Plant 24 V - 180 Ah 1x Plant 24 V - 180 Ah |
|
Shaft generator |
1x 300 kVA |
|
Generators |
2x Main diesel generatorsets each 230 kVA |
|
Emergency generator |
1x Diesel generatorset 50 kVA |
|
Batteries |
1x Battery for automation 180 Ah 1x Battery for other purpose 180 Ah 1x Battery for UPS radio 140 Ah 2x Batteries for start auxiliary engine each 50 Ah 1x Battery for start emergency engine 50 Ah |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 185 kW, forward |
|
Number of holds |
1x Box 56,55 x 10,20 x 8,15 m |
|
Cargo hold capacity |
Bale & grain: 4.615 m³ / 162.977 ft³ |
|
Hold ventilation |
6x Air changes hour |
|
Number of hatches |
1 56,60 x 10,40 m |
|
Hatch cover type |
Kvaerner Multifold Crocodile |
|
Max permitted loads |
Tanktop: 15 t/m² On deck: 1,6 t/m² |
|
Tank capacities |
MGO: 291,6 m³ Ballast water: 1.340 t |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
|
Crew size |
9 |
|
Manager |
Wessels Reederei GmbH & Co. KG Industriestr. 12-14 49733 Haren/Ems Federal Republic of Germany |
|
Registered owner |
MS "BUTES" Schiffahrts GmbH & Co. KG Industriestr. 12-14 49733 Haren/Ems Federal Republic of Germany |
|
Renamed |
07/2020 Wilson Dirdal Antigua & Barbuda, St. John’s - Call sign: V2HH2 Owner: MS "WES BUTES" Schiffahrts GmbH & Co. KG Manager: Wessels Reederei GmbH & Co. KG Operator: Wilson ASA - Norway |
|
Latest data adjustment |
08 October 2023 |
