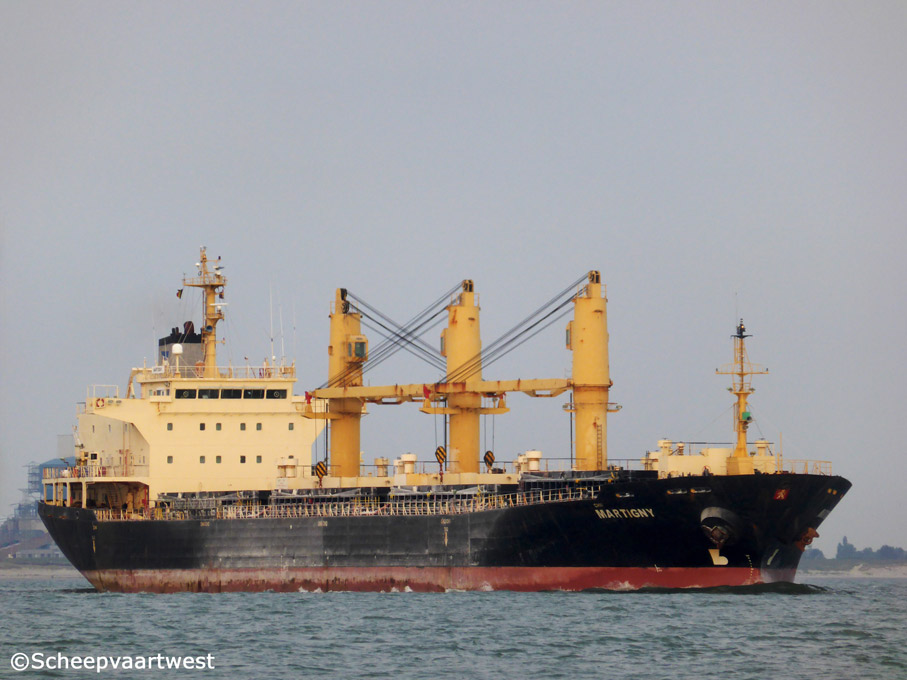

Westerschelde 31 July 2014 |
|
Name |
MARTIGNY |
|
Previous names |
19.05.2002 - 28.05.2003 VOC Regal 05.2003 - 10.2006 Clipper Regal |
|
Type |
Bulk carrier |
|
IMO-number |
9229867 |
|
Call sign |
HBLY |
|
Flag |
Switzerland |
|
Previous flags |
19.05.2002 - 28.05.2003 Commonwealth of the Bahamas |
|
Port of registry |
Basel |
|
GT |
12.578 t Suez: 14?144 t |
|
DWT |
Summer: 20.035 t |
|
NT |
6.861 t Panama: 10.570 t Suez: 12.155 t |
|
Length |
154,75 m overall 143,50 m between perpendiculars |
|
Breadth |
23,70 m |
|
Draught |
9,55 m |
|
Freeboard |
3.870 mm |
|
Depth |
13,00 m |
|
Speed |
14,0 knots |
|
Built |
2002 Transformation year: 2008 |
|
Keel laid |
08.11.2000 |
|
Date of completion |
05.02.2002 |
|
Builder |
Sekwang Heavy Industries Mokpo Co., Ltd. |
|
Yard number |
H1114 |
|
Hull material |
Mild steel (Ordinary strength steel) |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W/STX 8S35MC MK7 -2stroke 8 cylinder 350 x 1400 mm diesel engine - 5.920 kW / 8.044 hp at 173 rpm Builder: STX Engine Co, Ltd., Changwon - South Korea |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHM 101,00 m² |
|
Shaft generator |
1x 438 kVA - 350 kW |
|
Generators |
2x Main diesel generatorsets each 500 kVA - 400 kW - 619 hp |
|
Emergency generator |
1x Diesel generatorset 100 kVA - 80 kW - 112 hp |
|
Number of holds |
4 |
|
Total capacity of holds |
Bale: 25.655 m³ Grain: 27.005 m³ |
|
Number of tanks |
Ballast: 18 Diesel oil: 7 Fuel oil: 7 Lubricating oil: 5 Fresh water: 3 Waste water: 2 Sludge: 1 |
|
Tank capacities |
Fresh water : 246 m³ Fuel Oil: 1.156 m³ / 1.086,64 t Tank Ballast: 6.138 m³ |
|
Cargo gear |
3x Cranes - 30,0 t each |
|
Manager |
Massoel SA Rue du Mont-Blanc 19 1201 Genève |
|
Registered owner |
Massmariner SA |
|
Sister ships |
Andermatt - IMO 9244075 Arosa - IMO 9229879 Lugano - IMO 9244087 |
|
Latest data adjustment |
29 December 2014 |
