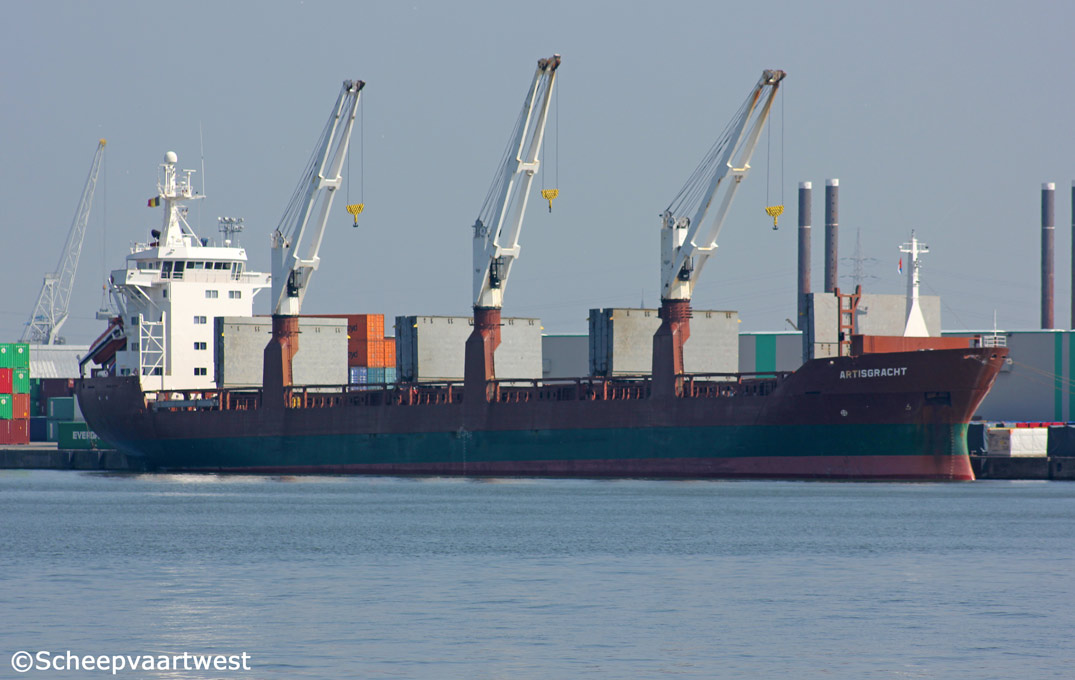

Artisgracht 01

Antwerpen 18 May 2014



Name

ARTISGRACHT

Type

Multi-purpose general cargo ship

IMO-number

8811936

Call sign

PCUI

Flag

The Netherlands

Port of registry

Amsterdam

GT

7.949 t

DWT

Summer: 12.150 t

NT

4.160 t

Number of 20ft containers

Hold: 272

Deck: 406

Total: 678

Number of 40ft containers

Hold: 136

Deck: 136

Total: 322

Reefer capacity

30

Power: 650 kW

Length

129,60 m overall

120,60 m between perpendiculars

Breadth

18,90 m moulded

19,03 m extreme

Draught

Summer: 8,63 m

8,93 m for timber

Depth

11,65 m moulded

Speed

13,5 knots ballast

13,0 knots laden

Max;: 15,0 knots

Built

1990

Date of completion

07.09.1990

Builder hull

Frisian Shipyard C.V.
Harlingen

The Netherlands

Builder completion

Tille Scheepsbouw B.V.
Kootstertille
The Netherlands

Yard number

271

Hull material

Steel

Number of decks

2

Main engine

1x Wärtsilä 12V32 - 4 sttroke single acting 12 cylinder 320 x 350 mm diesel engine - 6.730 hp / 4.950 kW

Manufacturer : Wärtsilä Diesel Oy, Vaasa - Finland

Propellers

1x Controllable pitch propeller

Generators

3x Generator each 348 kW

1x Generator 320 kW

Bow thruster

1x 200 hp / 215 kW

Cargo capacity

Grain / bale: 525.000 ft³ / 14.870 m³

If tween deck installed 31.750 ft³ / 900 m³ less in hold

Hatches

Weather deck:

N° 1: 26,60 x 15,80 m

N° 2: 25,20 x 15,80 m

N° 3: 26,60 x 15,80 m

Steel, end folding type

Tweed deck:

85,40 x 15,80 m

Consisting of 16 steel pontoons:

10x 6,35 x 15,80 m

2x 4,36 x 15,80 m

4x 3019 x 15,80 m

Floor space

Tanktop: 1.200 m²

Tween deck: 1.350 m²

Weather deck: 1.420 m²

Timber intake

16.500 m³ length packages

Maximum load

Weather deck hatch covers: 1,75 t/m²

Tween deck hatch covers: 3,70 t/m²

Tanktop: 20,0 t/m²

Air changes

About 30x per hour

Bunker capacity

IFO - Intermediate Fuel oil: 1.230 m³

MGO - Marine Gas Oil: 165 m³

Water ballast: 4.000 m³

Cargo gear

3x deck cranes situated on starboard - SWL 40,0 t each

Manager

Spliethoff´s Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam

The Netherlands

Registered owner

Rederij Artisgracht
Amsterdam
The Netherlands

Previous owners

1990 - 07.2012 C.V. Scheepvaartonderneming Raamgracht & C.V. Scheepvaartonderneming Artisgracht
Amsterdam

The Netherlands

Renamed

2016 Yuriy Tarapurov - Russia - Call sign: UHMQ

Latest data adjustment

12 January 2015
