Antwerpen 11 July 2014 |
|
Name |

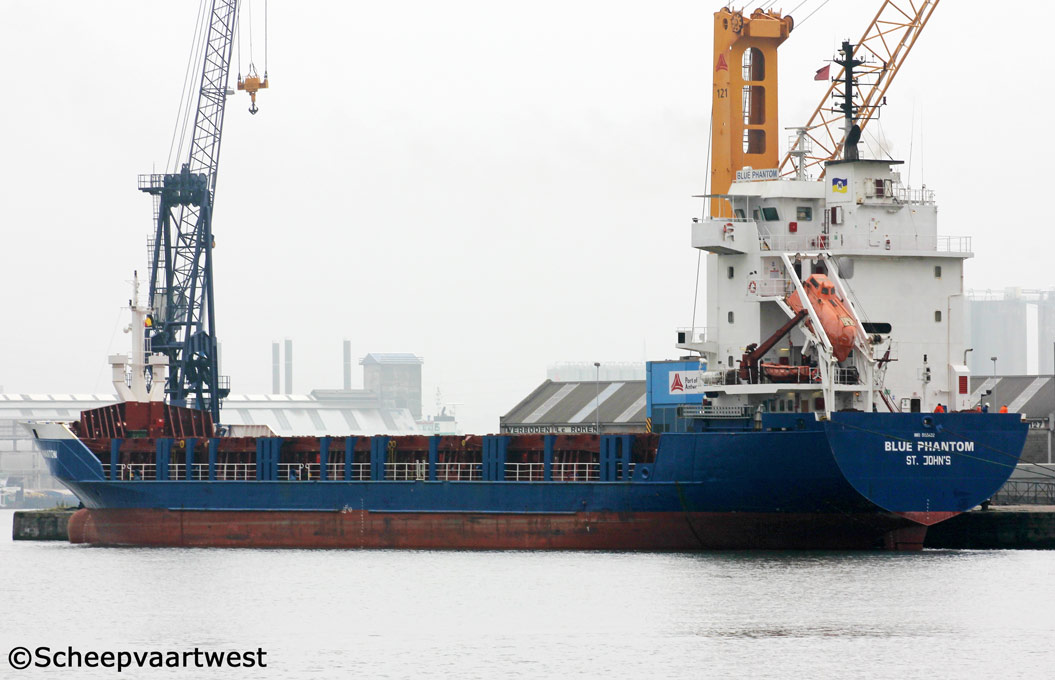

BLUE PHANTOM |
|
Previous names |
1998 - 02/2008 OPDR Cartagena 02/2008 - 02/2014 Fletum |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers |
|
IMO-number |
9155432 |
|
Call sign |
V2DH8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
1998 - 2000 Cyprus, Limassol 2000 - 2006 Spain - Call sign: EASG 2006 - 2014 Isle of Man |
|
GT |
4.115 t |
|
DWT |
Summer: 5.184 t |
|
DWCC |
Summer: 4.900 t Winter: 4.70 t |
|
NT |
2.005 t |
|
Number of 20ft containers |
374 |
|
Reefer capacity |
36 |
|
Length |
100,62 m overall 95,31 m registered |
|
Breadth |
16,20 m registered |
|
Draught |
6,39 m |
|
Forecastle |
7,56 m |
|
Poop |
11,37 m |
|
Depth |
8,20 m moulded |
|
Speed |
14,0 knots |
|
Built |
1998 |
|
Keel laid |
06/10/1997 |
|
Launch date |
15/01/1998 |
|
Date of completion |
07/1998 |
|
Builder |
Yangzhijiang Shipyard Emeizui, Huangshan Jiangyin People's Republic of China |
|
Yard number |
449 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 9M32 - 4 stroke 9 cylinder 320 x 480 mm combustion engine 3.960 kW / 5.384 bhp at 600 rpm Reduced power: 2.999 kW Year of manufacture: 1996 Manufacturer: MaK Deutschland Branch of Caterpillar Motoren GmbH & Co. KG, Kiel Service Station Kiel Am Holzhafen 7 28217 Bremen Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 156 rpm |
|
Boilers |
1x Water heater, oil fired - 5,0 bar 1x Heating surface: 15,0 m² Year of manufacture: 1996 |
|
Electric installations |
2x Plants each 380/ 220 V - 425 kVA 1x Plant 380 V - 550 kVA 1x Plant 380 V - 126 kVA |
|
Shaft generator |
1x 550 kVA |
|
Generators |
2x Main diesel generatorsets each 425 kVA |
|
Emergency generator |
1x Diesel generatorset 126 kVA |
|
Compressed air receivers |
1x Receiver 500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 350 kW, forward |
|
Number of holds |
1 65,10 x 13,02 x 8,60 m |
|
Cargo hold capacity |
Grain: 7.235 m³ |
|
Number of hatches |
1 |
|
Tank capacities |
Fuel oil: 351 m² Water ballast: 1.758 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m |
|
Crew size |
16 |
|
Manager |
Meyering Bereederungs GmbH & Co. KG Bockholter Weg 3a 49733 Haren/Ems Federal Republic of Germany |
|
Registered owner |
Blue Phantom GmbH & Co. KG Bockholter Weg 3a 49733 Haren/Ems Federal Republic of Germany |
|
Renamed |
12/2016 Lyra Portugal, Madeira - Call sign: CQIE6 Manager: Interscan Schiffahrtsges Mbh - Germany Owner: Lyra Interscan UG (haftungsbeschränkt) & Co. KG |
|
Latest data adjustment |
11 June 2022 |
