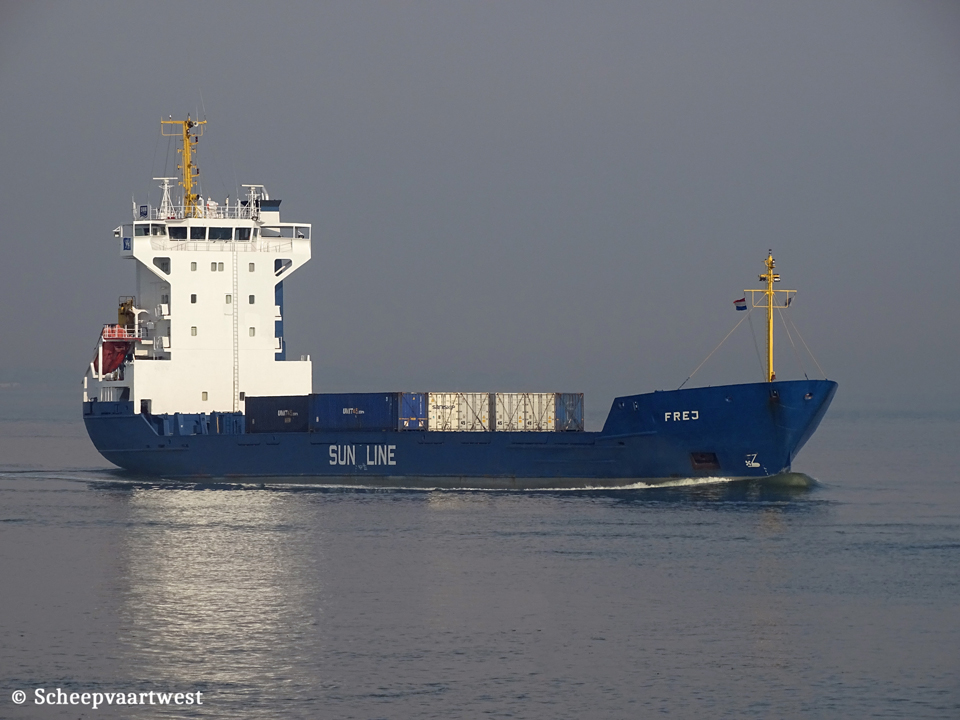

Westerschelde 04 July 2019 |
 |
 |
 |
 |
 |
 |
|||||

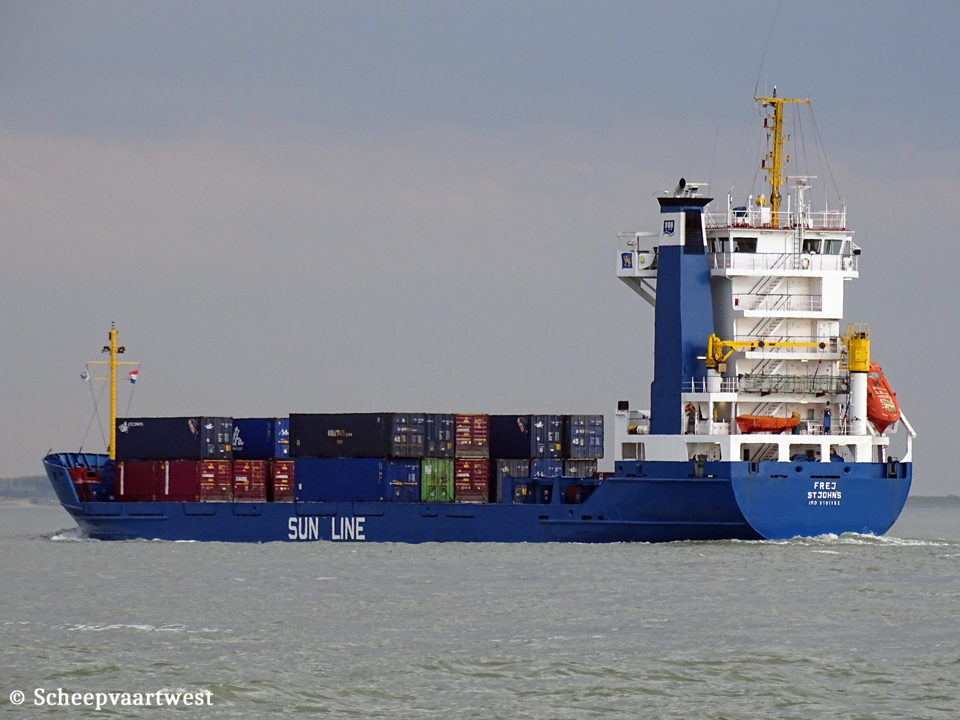

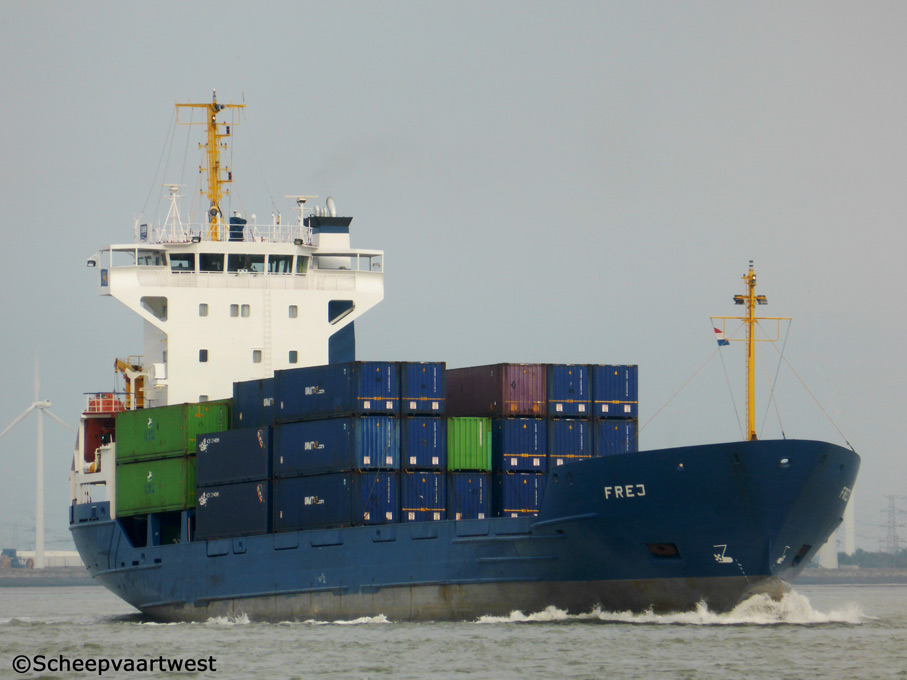

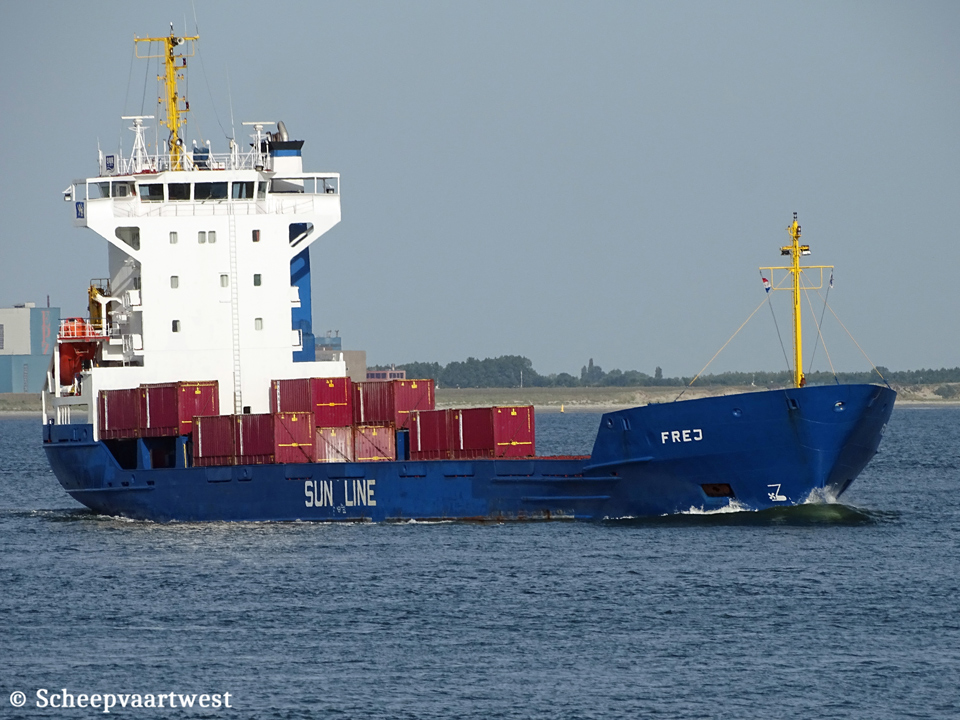

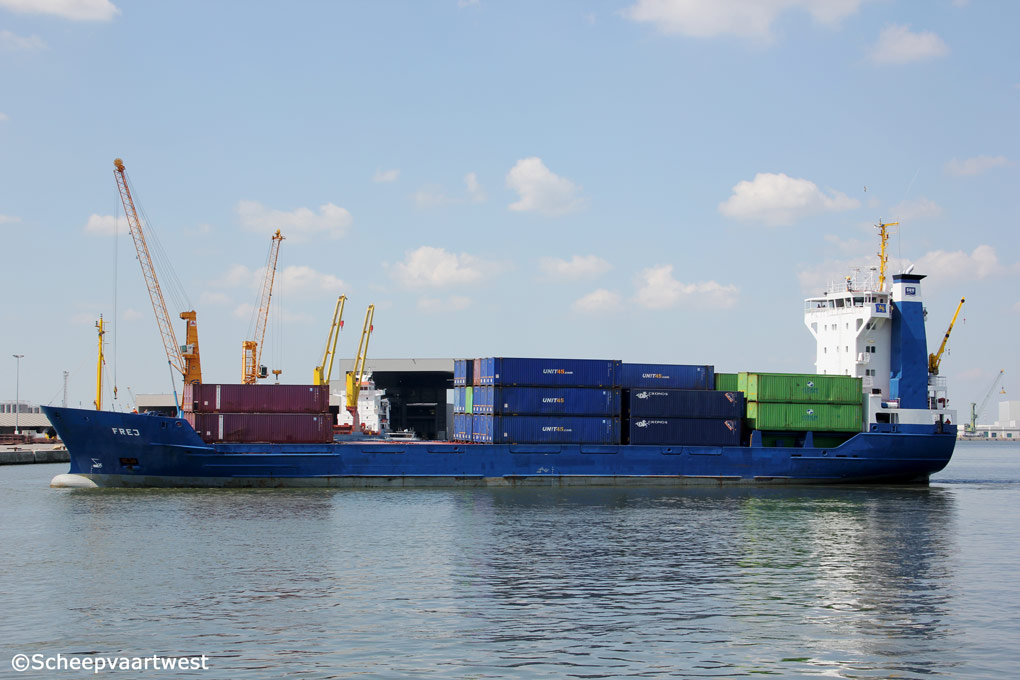

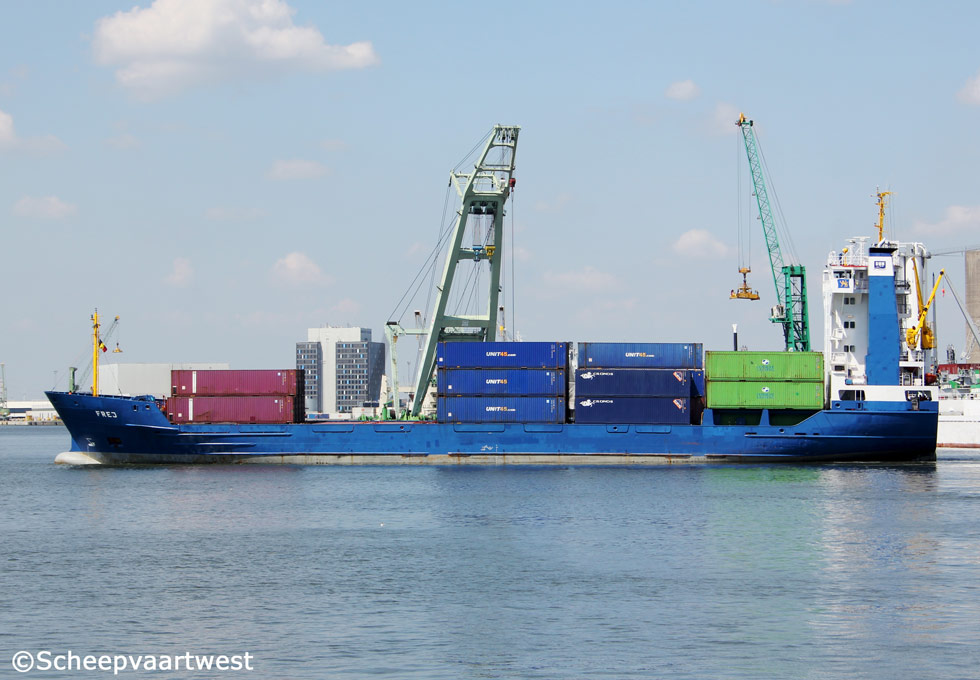

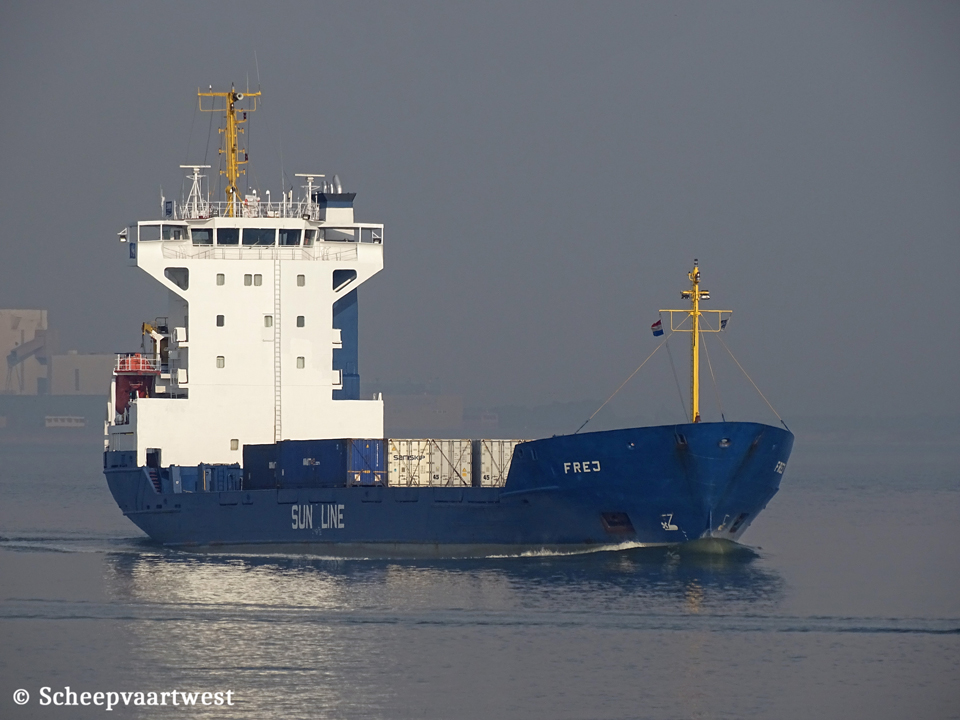

| Westerschelde 25/07/14 | Antwerpen 24/07/14 | Antwerpen24/07/14 | Westerschelde 11/08/20 | Westerschelde 11/08/20 | Westerschelde 11/04/16 | |||||
|
Name |
FREJ |
|
Previous names |
1994 - 12/2006 Frej 12/2006 - 01/2014 Trans Frej |
|
Type |
General dry cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9101156 |
|
Call sign |
V2AF7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.997 t |
|
DWT |
Summer: 4.470 t |
|
NT |
1.301 t |
|
Number of 20ft containers |
304 |
|
Reefer capacity |
30 |
|
Length |
97,53 m overall 91,40 m between perpendiculars 91,72 m registered |
|
Breadth |
15,90 m registered |
|
Draught |
5,93 m |
|
Forecastle |
9,82 m |
|
Poop |
9,68 m |
|
Depth |
7,54 m moulded |
|
Speed |
14,8 knots |
|
Built |
1994 |
|
Keel laid |
28/10/1993 |
|
Launch date |
17/10/1994 |
|
Date of completion |
25/11/1994 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1101 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x Krupp MaK 8M453C - 4 stroke 8 cylinder 320 x 420 mm combustion engine 2.700 kW / 3.671 bhp at 600 rpm Year of manufacture: 1994 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 178 rpm |
|
Electric installations |
2x Plants each 400/ 220 V - 285 kVA 1x Plant 400 V - 625 kVA 1x Plant 400 V - 35 kVA |
|
Shaft generator |
1x 625 kVA |
|
Generators |
2x Main diesel generatorsets each 285 kVA |
|
Emergency generator |
1x Diesel generatorset 35 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 320 kW, forward |
|
Number of holds |
2x Box holds, steel floored Hold 1 :40,95 x 7,86/13,06 x 6,00 m Hold 2 : 24,85 x 13,06 x 6,00 m |
|
Cargo hold capacity |
Grain: 4.405 m³ Bales: 3.973 m³ |
|
Hold ventilation |
Electrically 2 air changes/h |
|
Number of hatches |
Hatch 1 : 6,25 x 7,86 m Hatch 2, 3, 4, 5 : 27,91 x 13,06 m |
|
Hatch type |
5x Hydraulic folding steel covers |
|
Tank capacities |
Fuel oil: 322 m² Water ballast: 1.250 m³ Fresh water: 49 t Water ballast: 1.250 m³ |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m Diameter: 42 mm |
|
Lifting equipment |
1x Crane - SWL 1,6 t |
|
Crew size |
15 |
|
Manager |
Reederei Speck Birte Schmalfeld Im Dorfe 9 24797 Hörsten Federal Republic of Germany |
|
Registered owner |
MS "FREJ" Claus-Markus Speck GmbH & Co. KG Im Dorfe 9 24797 Hörsten Federal Republic of Germany |
|
Latest data adjustment |
04 June 2021 |
