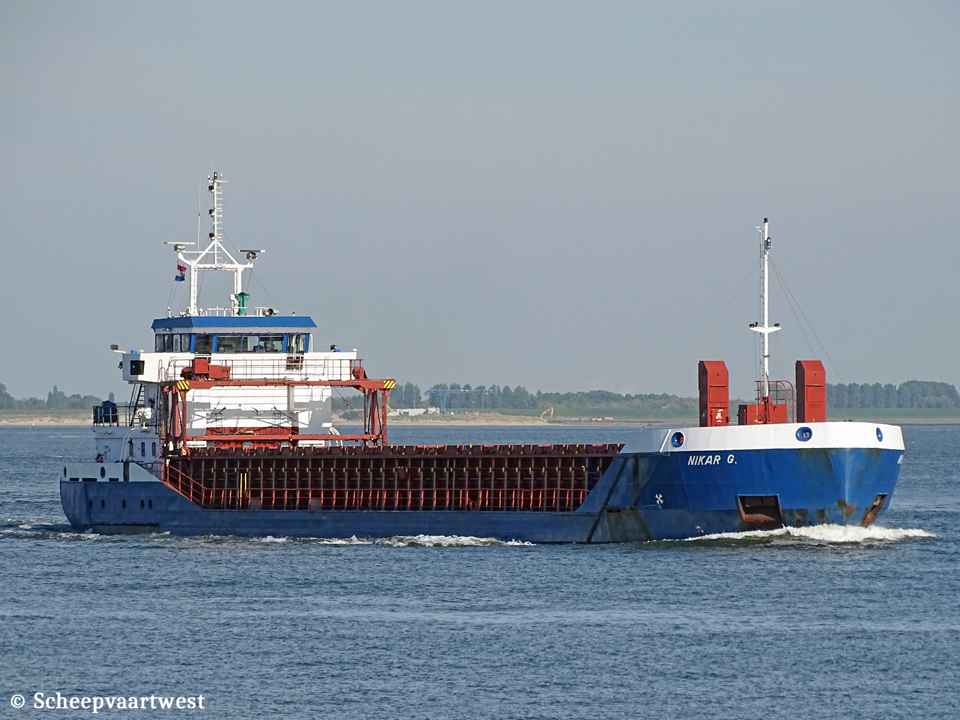

Nikar G IMO 9197777 03

Westerschelde 24 April  2020

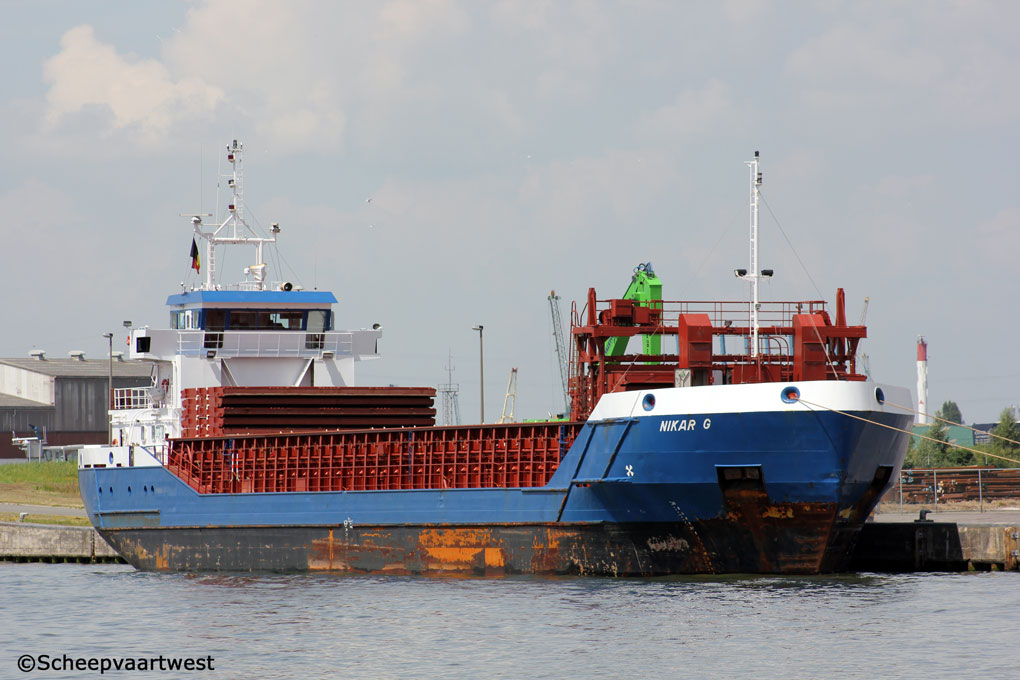

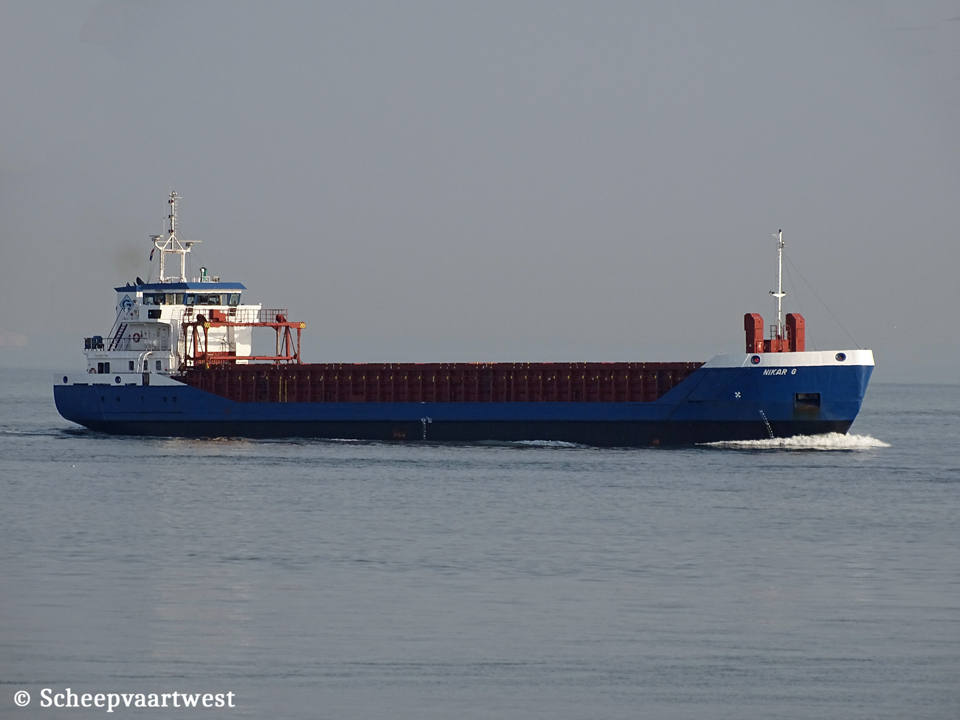

Nikar G IMO 9197777 02   Nikar G 01
Westerschelde 11/08/20   Antwerpen 07/07/14


Name

NIKAR G

Type

Multi-purpose general cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers

IMO-number

9197777

Call sign

V2OD4

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.301 t

DWT

Summer: 3.154 t

NT

1.289 t

Number of 20ft containers

132

Length

82,48 m overall

79,25 m registered

Breadth

12,41 m registered

Draught

5,30 m

Keel to mast end

24,50 m

Forecastle

8,85 m

Speed

Service: 11,0 knots

Max: 15,6 knots

Built

2000

Keel laid

29/06/1998

Launch date

24/11/1999

Date of completion

01/04/2000

Builder casco

Daewoo Mangalia Heavy Industries S.A.

Str. Portului Nr.1

8727 Mangalia

Romania

Yard number: 1004

Builder completion

Pattje Saimax

Eemshaven

The Netherlands

Yard number: 413

Hull type

Double hull

Double bottom, continuous from peak to peak bulkhead

Number of bulkheads

2

Main engine

1x Mak 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.447 hp at 750 rpm

Year of manufacture: 1999

Manufacturer: Krupp Mak Maschinenbau GmbH

Falckensteiner Str. 2

24159 Kiel

Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 220 rpm

Boilers

1x Water heater, oil fired - 5,0 bat

Year of manufacture: 1999

Electric installations

2x Plants each 380/220 V - 113 kVA

1x Plant 380 V - 300 kVA

1x Plant 380 V - 113 kVA

Shaft generator

1x 240 kW / 300 kVA

Generators

2x Main diesel generatorsets each 113 kVA

Emergency generator

1x Diesel generatorset 113 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller Schottel - 200 kW, forward at 1.470 rpm

Number of holds

1

Cargo hold capacity

Grain/Bale: 4.782 m³ / 167.400 ft³

Number of hatches

1

56,20 x 10,20 m

Max permitted loads

Tanktop: 14,0 t/m²

Tank capacities

Fuel oil: 217 m³

Water ballast: 1.360 m³

Anchor equipment

3x Anchors weight each 1.740 kg

Chain length: 440,00 m

Diameter: 32 mm

Crew size

10

ISM & commercial manager

Gerdes Bereederungs GmbH & Co. KG

Hermannstrasse 1A

49733 Haren/Ems

Federal Republic of Germany

Registered owner

Gerems Schiffahrts GmbH & Co. KG MS "NIKAR G"

Care of Gerdes Bereederungs und Verwaltungs GmbH

Hermannstrasse 1A

49733 Haren (Ems)

Germany

Renamed

2021 Peak Anfield

Antigua & Barbuda, St. John’s - Call sign: V2OD4

Owner: Peak Anfield B.V. - The Netherlands

Manager: Gronberg Ship Management B.V. - The Netherlands

Latest data adjustment

22 January 2022
