Westerschelde 18 May 2017 |
 |
 |
 |
||

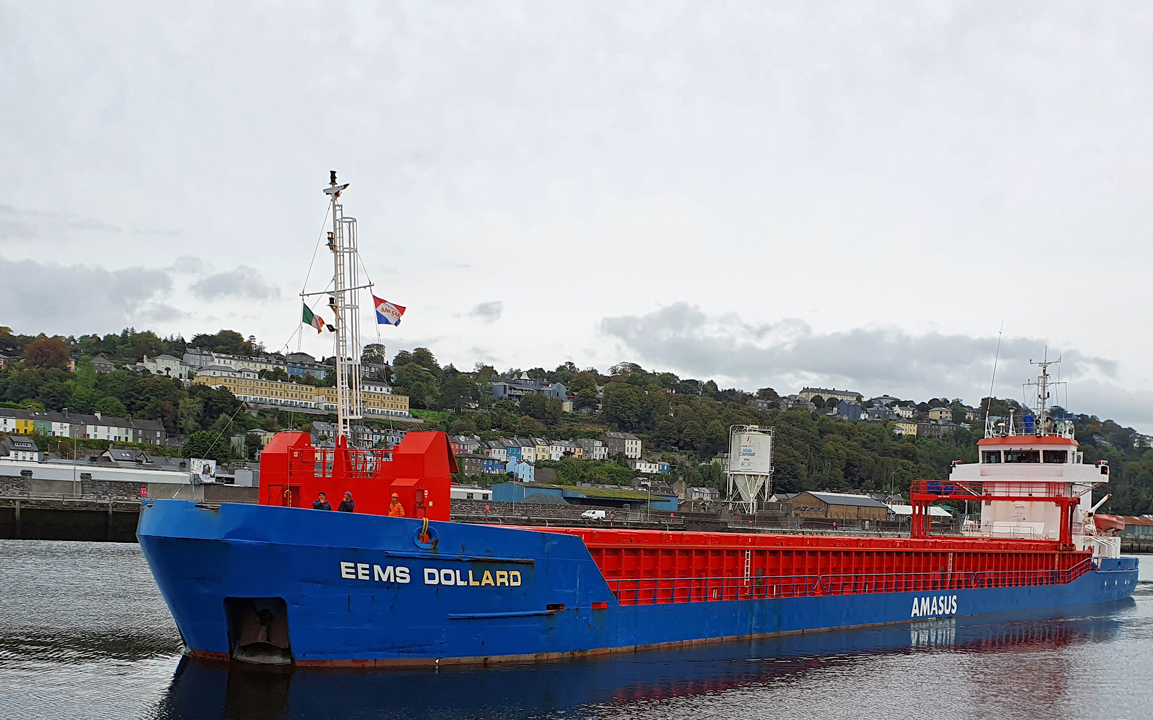

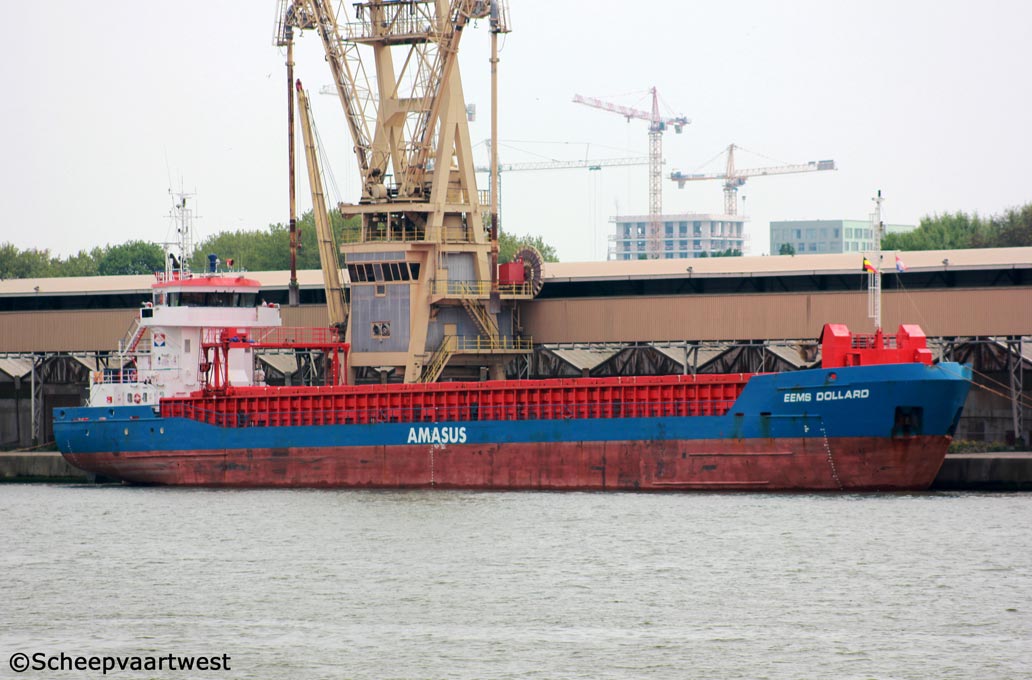

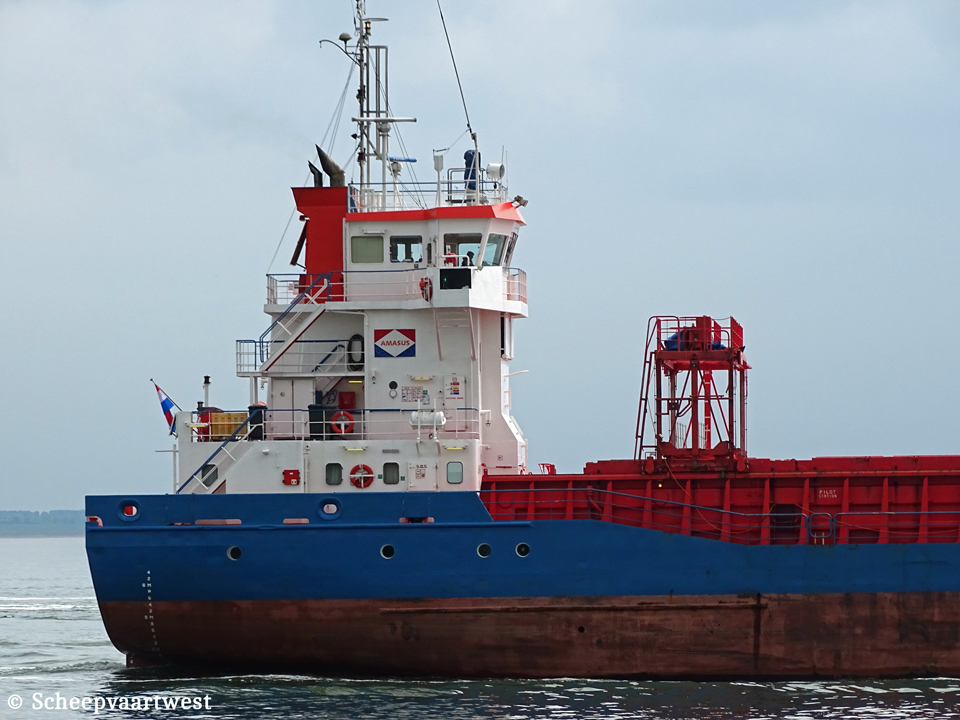

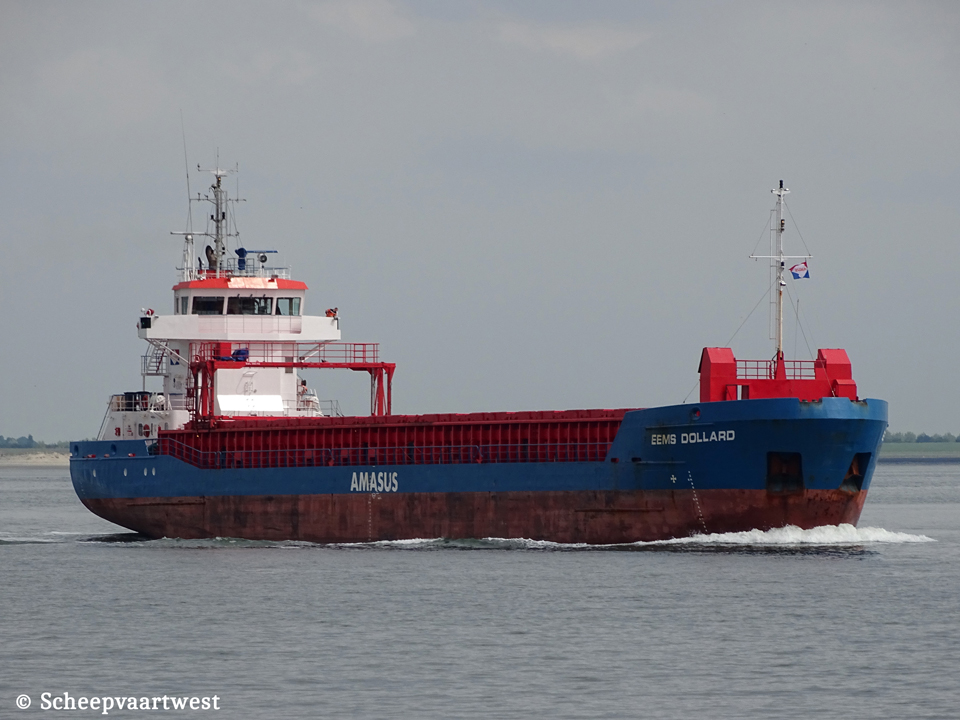

| Westerschelde 18/05/17 | Antwerpen 25/04/15 | Cork, Ireland 12/10/22 | ||
|
Name |
EEMS DOLLARD |
|
Previous names |
01/2004 - 09/2008 Artemis |
|
Type |
Multi-purpose general cargo ship - Heavy cargo |
|
IMO-number |
9278337 |
|
Call sign |
PBLV |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flag |
The Netherlands, Sneek - Call sign: PBLV |
|
GT |
2.545 t |
|
DWT |
Summer: 3.850 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
188 |
|
Length |
88,78 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m |
|
Draught |
Max: 5,40 m |
|
Keel to mast end |
24,80 m |
|
Air draft |
21,50 m |
|
Freeboard |
1.597 mm |
|
Depth |
7,00 m moulded |
|
Speed |
Max: 12,5 knots Service: 10,5 knots |
|
Built |
2004 |
|
Launch date |
2003 |
|
Date of completion |
09/01/2004 |
|
Builder casco |
ATVT Sudnobudivnyi Zavod Zaliv Shipyard Kerch Ukrainian Yard number: 01703 |
|
Builder completion |
Damen Shipyard Bergum Bergum The Netherlands Yard number: 9348 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.066 bhp at 1.000 rpm Built: 2002 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller solid - aft at 256 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Generators |
1x Diesel generatorset 330 kVA - 264 kW - 352 hp 1x Diesel generatorset 120 kVA - 96 kW - 150 hp |
|
Emergency generator |
1x Diesel generatorset 57 kVA - 46 kW - 72 hp |
|
Bow thruster |
1x 1.470 kW |
|
Number of holds |
1 Dimensions: 62,50 x 10,12 x8,40 m |
|
Hold capacity |
Grain & bale: 185.338 ft³ / 5.250 m³ |
|
Number of hatches |
1 Dimensions: 62,90 x 10,35 m |
|
Hatch type |
Pontoon |
|
Permissible loads |
On deck: 1,6 t/m² Tanktop: 15,0 t/m² |
|
ISM manager |
Amasus Support B.V. Farmsum The Netherlands |
|
Registered owner |
C.V. ms. Eems Dollard (Amasus Shipping B.V.) Delfzijl The Netherlands |
|
Previous names & owners |
12/2003 Artemis - Oudvaart Shipping B.V., Sneek - The Netherlands 09/04.2007 Artemis - Artemis C.V., Sneek - The Netherlands 05/09/2008 Eems Dollard - Eems Dollard C.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
13 October 2022 |
