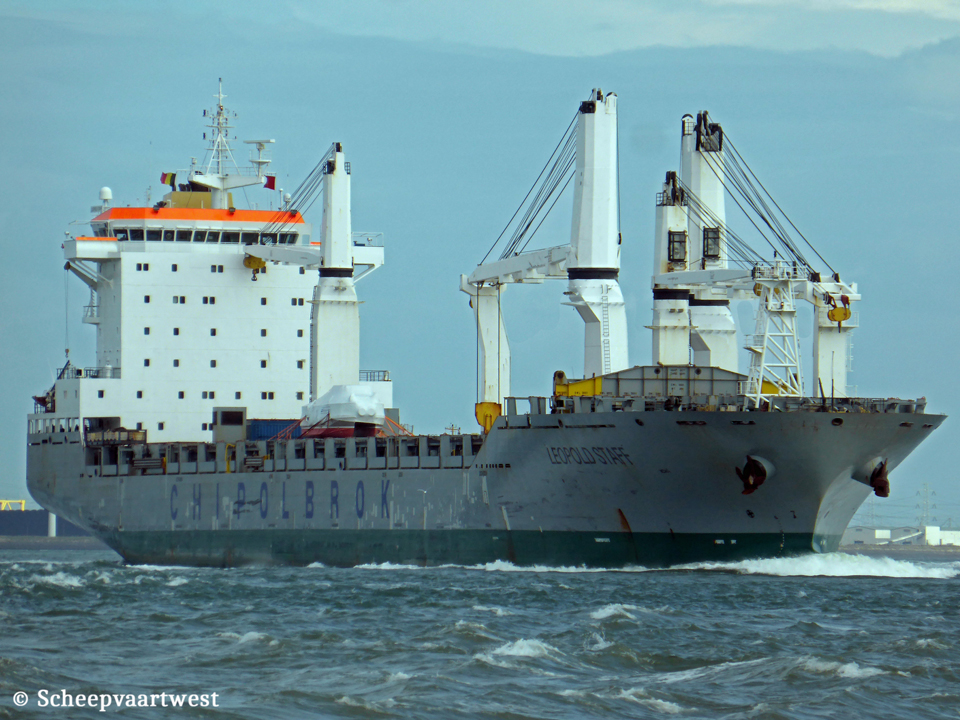

Westerschelde 18 September 2015 |
 |
 |
|

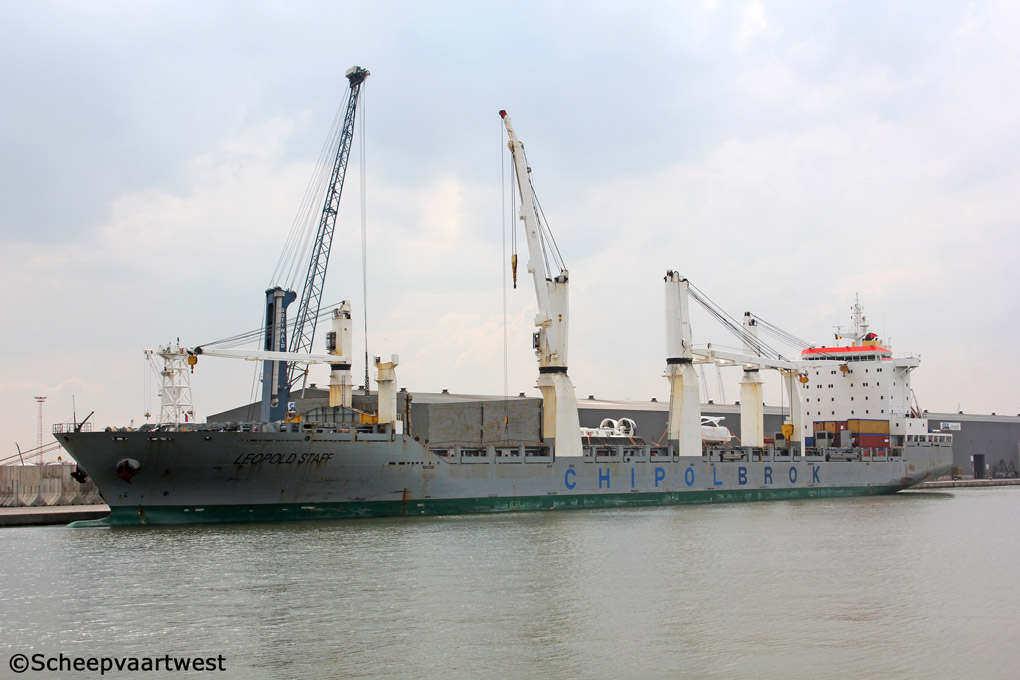

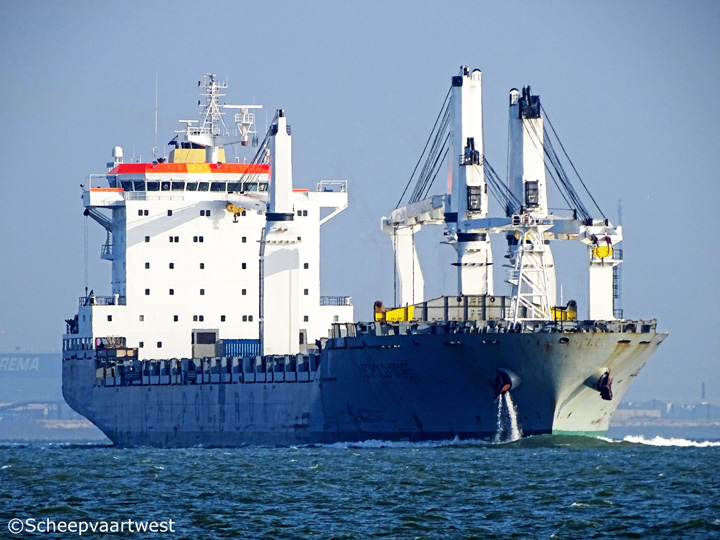

| Westerschelde 26/01/17 | Antwerpen 25/04/14 | |
|
Name |
LEOPOLD STAFF |
|
Type |
Multi purpose heavy-lift cargo ship - Adapted for carriage of containers - Strength for carriage of heavy cargoes |
|
IMO-number |
9272228 |
|
Call sign |
5LPC6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
2004 - 2017 Cyprus, Limassol- Call sign: P3XQ9 2017 - 2024 Malta, Valletta - Call sign: 9HA4540 |
|
GT |
24.167 t Suez: 24.002 t |
|
DWT |
Summer: 30.469 t |
|
NT |
10.714 t Suez: 20.515 t Panama: 21.181 t |
|
Number of 20ft containers |
On deck: 1.096 In hold: 796 Total: 1.892 |
|
Reefer capacity |
50 |
|
Length |
199,80 m overall |
|
Breadth |
27,80 m registered |
|
Draught |
Max.: 11,0 m |
|
Keel to mast end |
51,10 m |
|
Depth |
15,50 m |
|
Speed |
Service: 13,4 knots Max.: 19,2 knots |
|
Built |
2004 |
|
Launch date |
21/06/2004 |
|
Date of completion |
08/12/2004 |
|
Builder |
Shanghai Shipyard Shanghai China |
|
Yard number |
0194 |
|
Hull material |
Steel |
|
Main engine |
1x Sulzer 7RT-FLEX60C - 2 stroke 7 cylinder 600 x 2.250 mm combustion engine 16.250 kW / 22.461 hp at 102,0 rpm |
|
Propellers |
1x Solid propeller |
|
Boilers |
1x Oil fired Aalborg Mission OS1600 - 7,0 bar 1x Exhaust gas Aalborg AV-4 - 7, 0 bar |
|
Generators |
3x Wärtsilä 6L20 diesel engines connected with ABB AMG 450L8 generator each 1.020 kVA - 450 Volt 60 Hz at 900 rpm |
|
Emergency generator |
1x Damp D2866TE diesel generatorset 212,5 kVA - 450 Volt 60 Hz |
|
Bow thruster |
1x 900 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 40.143 m³ Bale: 37.000 m³ |
|
Ventilation |
Mechanical: 6 air changes per hour |
|
Tank capacities |
Fuel oil 98%: 2.741,83 m³ Diesel oil: 98%: 175,4 m³ Lubricating oil 98%: 142,6 m² Fresh water 100%: 275,5 m³ Ballast water 100%: 11.886,1 m³ |
|
Cargo gear |
2x Deck cranes - SWL 320,0 t each 2x Deck cranes - SWL 50,0 t each |
|
ISM a commercial manager |
Chipolbrok Chinese - Polish Joint Stock Shipping 26th-34th Floors, Gongshanglian Building, 55, Yan'an Donglu, Huangpu Qu Shanghai, 200002 China |
|
Registered owner |
Muras Shipping Co., Ltd. Care of Chinese-Polish Joint Stock Shipping Co. 26th-34th Floors, Gongshanglian Building, 55, Yan'an Donglu, Huangpu Qu Shanghai, 200002 China |
|
Latest data adjustment |
14 February 2024 |
