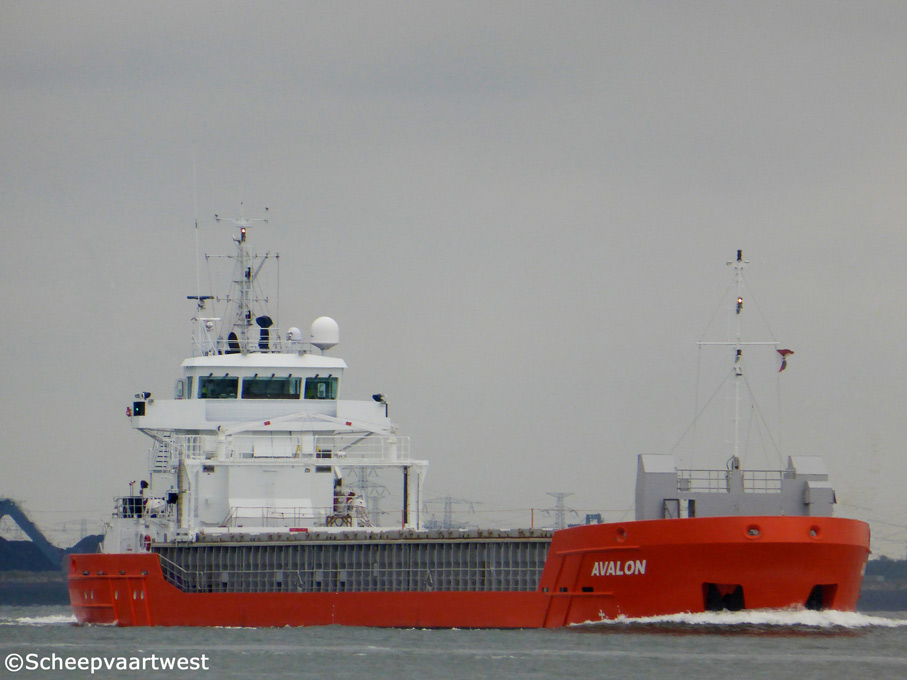

Westerschelde 19 June 2014 |

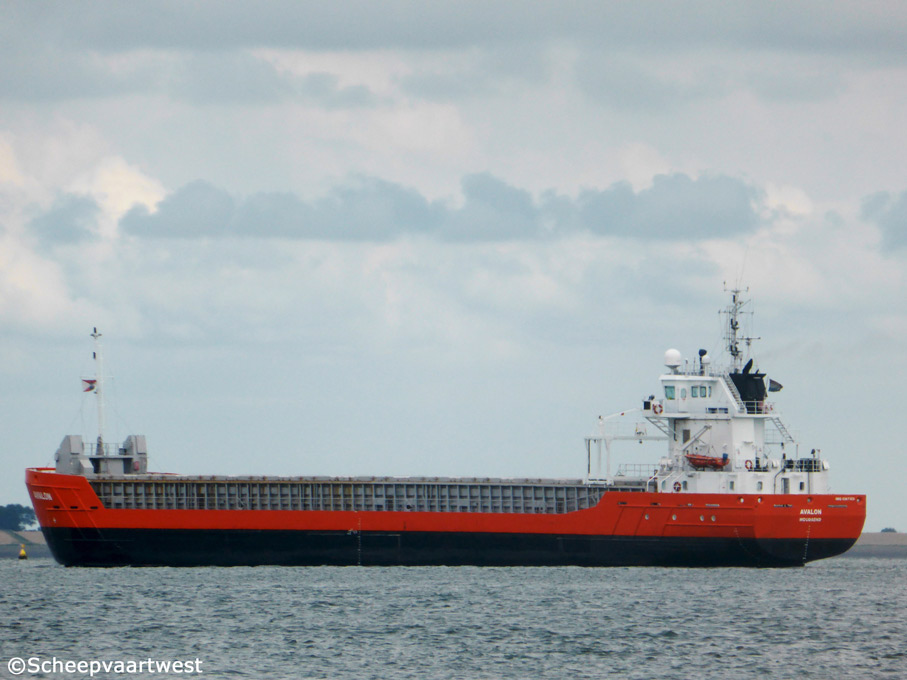

Westerschelde 18/06/14 |
Name |
AVALON |
Type |
Multi-purpose dry cargo carrier - Strengthened for heavy cargoes - container cargoes in hold and on hatchcovers |
IMO-number |
9387322 |
Call sign |
PBSF |
Flag |
The Netherlands |
Port of registry |
Woudsend |
GT |
2.545 t |
DWT |
Summer: 3.850 t |
NT |
1.460 t |
Number of 20ft containers |
In hold: 113 On hatch: 68 Total: 181 |
Length |
88,60 m overall 84,99 m between perpendiculars |
Breadth |
12,50 m moulded |
Draught |
5,43 m moulded |
Air draft |
24,80 m |
Freeboard |
1.597 mm |
Depth |
7,00 m to main deck |
Speed |
Service: 11,0 knots |
Built |
2009 |
Launch date |
20/09/2008 |
Date of completion |
18/04/2009 |
Builder Casco |
Brodogradiliste Sava D.D. Macvanska Mitrovica Serbia |
Builder completion |
Damen Shipyards Bergum Bergum The Netherlands |
Yard number |
9390 |
Hull material |
Steel |
Watertight compartment |
4 |
Movable bulkhead |
2 |
Continuous decks |
1 |
Main engine |
1x MaK 8M20C - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.065 hp at 1.000 rpm Start type: Compressed air Built: 2008 Builder: Caterpilar Motoren GmbH&Co KG, Kiel - Germany |
Gearbox |
1x Reintjes LAF-1563L - Reduction: 4.429:1 |
Propellers |
1x Screw propeller controllable pitch - aft at 235 rpm 4 Blades - Diameter: 2.600 mm |
Shaft generator |
1x 435 kVA - 348 kW |
Generators |
1x Sisu 634-DSBIG - 6 cylinder 108 x 134 mm diesel generatorset 175 kVA - 140 kW - 204 hp at 1.500 rpm |
Emergency generator |
1x 420-DSRG Sisu - 4 cylinder 108 x 120 mm diesel generatorset 77 kVA - 62 kW - 102 hp at 1.500 rpm |
Bow thruster |
1x Veth-Jet 2-K-1200 fixed pitch propeller - 236 kW, forward |
Number of holds |
1x Boxshaped hold narrowing fore and aft Dimensions: 61,66 x 10,12 x 8,43 m |
Total capacity of holds |
Grain: 5.250 m³ / 185.400 ft³ |
Number of hatches |
1 Dimensions: 62,50 x 10,12 m |
Hatch type |
Steel pontoon hatches with 1 gantry crane |
Hold ventilation |
6x Electrical driven Air changes/h |
Max. permitted loads |
Tanktop: 15 t/m² Hatchcovers: 1,6 t/m² |
Tank capacities |
Ballast water: 1.340 m³ Potable Water: 55 m³ Fuel oil: 211,9 m³ Lubricating Oil: 8,6 m³ Dirty Oil: 4 m³ Sewage: 12 m³ Sludge: 4 m³ |
Anchor equipment |
2 Chain length: 193,00 m Weight: 1.350 kg each |
Cargo gear |
Gearless |
Accommodation |
For Captain and Crew of a total 08 persons with heating, ventilation and air-conditioning |
Manager |
Wagenborg Shipping B.V Marktstraat 10 9934 CK Delfzijl The Netherlands |
Registered owner |
Avalon B.V. Woudsend The Netherlands |
Previous owner |
04/2009 - 08/2017 Avalon Shipping C.V., Woudsend - The Netherlands |
Renamed |
03/2020 Verena Cyprus, Limassol - Call sign: 5BLT5 Owner: Hermann Lohmann Schifffahrt GmbH. & Co. KG, Haren/Ems - Germany Manager: Lohmann Bereederungen GmbH. & Co. K.G., Haren/Ems - Germany |
Latest data adjustment |
18 June 2020 |
