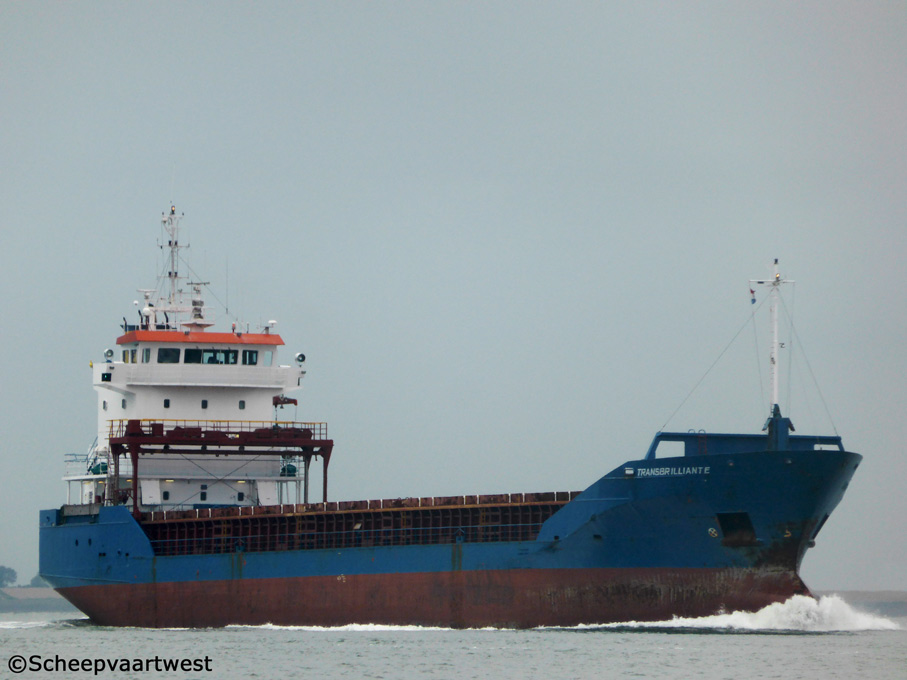

Westerschelde 19 June 2014 |
|
Name |
TRANSBRILLIANTE |
|
Previous names |
1997 - 02/2005 Morgenstond II 02/2005 - 04/2005 AKN Prestige 04/2005 - 05/2006 Baltic Prstige 05/2006 - 09/2009 Morgenstond II 09/2009 - 02/2013 Brilliante |
|
Type |
Multi-purpose general cargo ship - Equipped for carriage of containers |
|
IMO-number |
9142643 |
|
Call sign |
ZDHH4 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
1997 - 2002 The Netherlands, Siddeburen - Call sign: PCBH 2002 - 2005 The Netherlands, Delfzijl - Call sign: PCBH 2005 - 2006 The Netherlands, Rhoon 2006 - 2015 Gibraltar, Gibraltar, Call sign: ZDHH4 |
|
GT |
3.782 |
|
DWT |
Summer: 5.557 |
|
NT |
2.129 |
|
Number of 20ft containers |
In hold: 114 On deck: 148 Total: 262 |
|
Number of 40ft containers |
In hold: 48 On deck: 70 Total: 118 |
|
Length |
100,85 m overall 94,85 m between perpendiculars |
|
Breadth |
14,50 m moulded |
|
Draught |
6,85 m |
|
Keel to mast end |
31,20 m |
|
Air draft |
26,70 m in ballast |
|
Forecastle |
7,84 m |
|
Poop |
12,40 m |
|
Depth |
8,25 m moulded |
|
Speed |
Max: 13,8 knots Service: 10,5 knots |
|
Built |
1997 |
|
Keel laid |
01/08/1996 |
|
Launch date |
15/03/1997 |
|
Date of completion |
16/04/1997 |
|
Builder |
Scheepswerf Ferus Smit B.V. Scheepswervenweg 7 9608 PD Westerbroek The Netherlands |
|
Yard number |
309 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
8x Movable gain bulkheads |
|
Movable bulkheads |
2x Moveable grain bulkheads |
|
Continuous decks |
1 |
|
Main engine |
Stork/Wärtsilä 9L26 - 4 stroke single acting 9 cylinder 260 x 320 mm combustion engine 2.925 kW at 1.000 rpm Year of manufacture: 1997 Manufacturer: Stork-Wärtsilä Diesel B.V. Assendorperlure 5 8017 AA Zwolle The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Compressed air receivers |
2x Receivers each 355 litres - 9,0 bar |
|
Bow thruster |
1x 350 kW, forward |
|
Number of holds |
1 71,40 x 12,00 x 9,40 m |
|
Cargo hold capacity |
Grain: 7.706 m³ Bales: 7.640 m³ |
|
Number of hatches |
Hatch 1: 31,95 x 12,03 m Hatch 2: 38,20 x 12,00 m |
|
Hatch cover type |
Pontoon with Gantry |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,7 t/m² |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m |
|
Cargo gear |
Gearless |
|
Manager |
Transatlantic Ship Management AB Lilla Bommen 4A 404 28 Göteborg Sweden |
|
Previous managers |
|
|
Owner |
Multipurpose Bulkers AS, Gibraltar Gibraltar |
|
Registered owner |
Industrial Shipping AS Haakon Vll's Gate 10 0119 Oslo Norway |
|
Previous names & owners |
|
|
Renamed |
2015 Amber Spirit Antigua & Barbuda, St. John’s - Call sign: 9142643 Owner: Amberspirit Shipping Ltd. Manager: Amberseas Maritime Management OU, Talinn - Estonia |
|
Latest data adjustment |
02 January 2024 |
