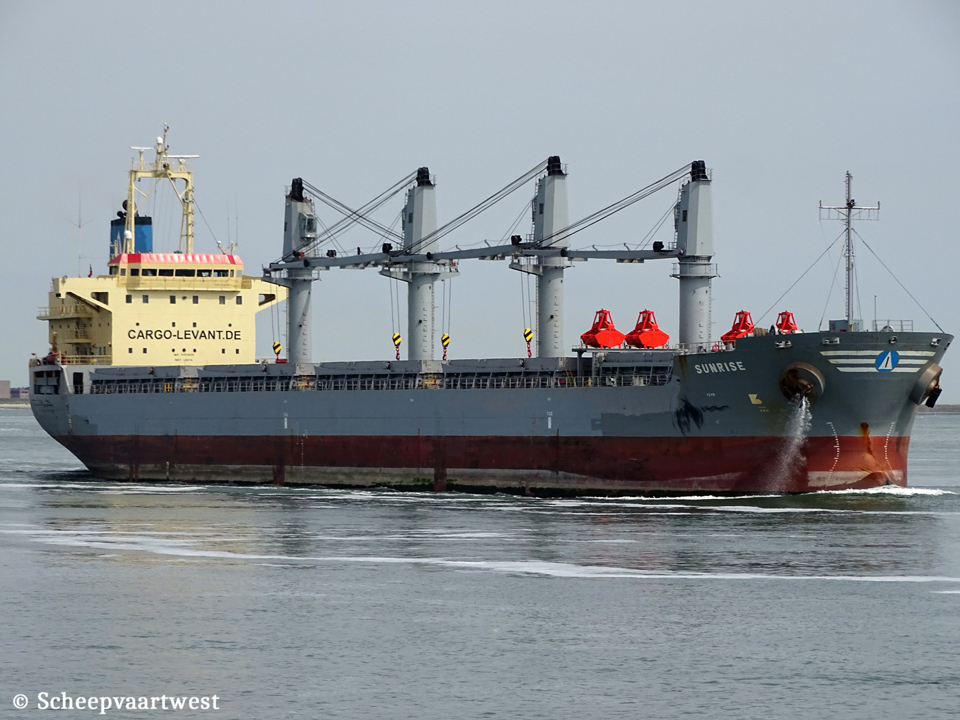

Westerschelde 23 May 2019 |
 |
 |
 |
||

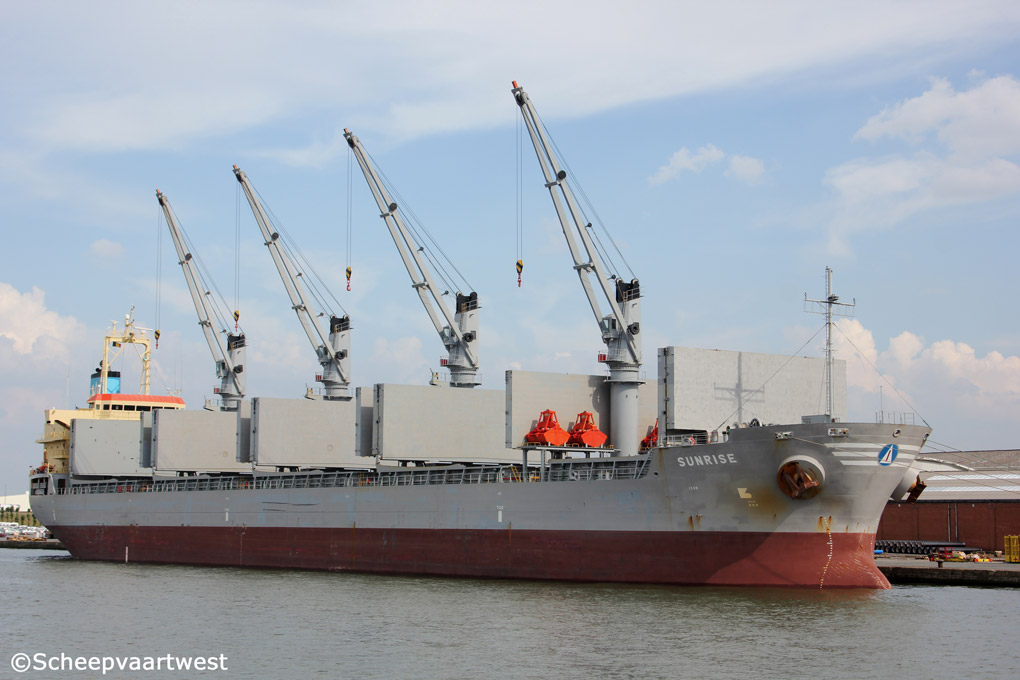

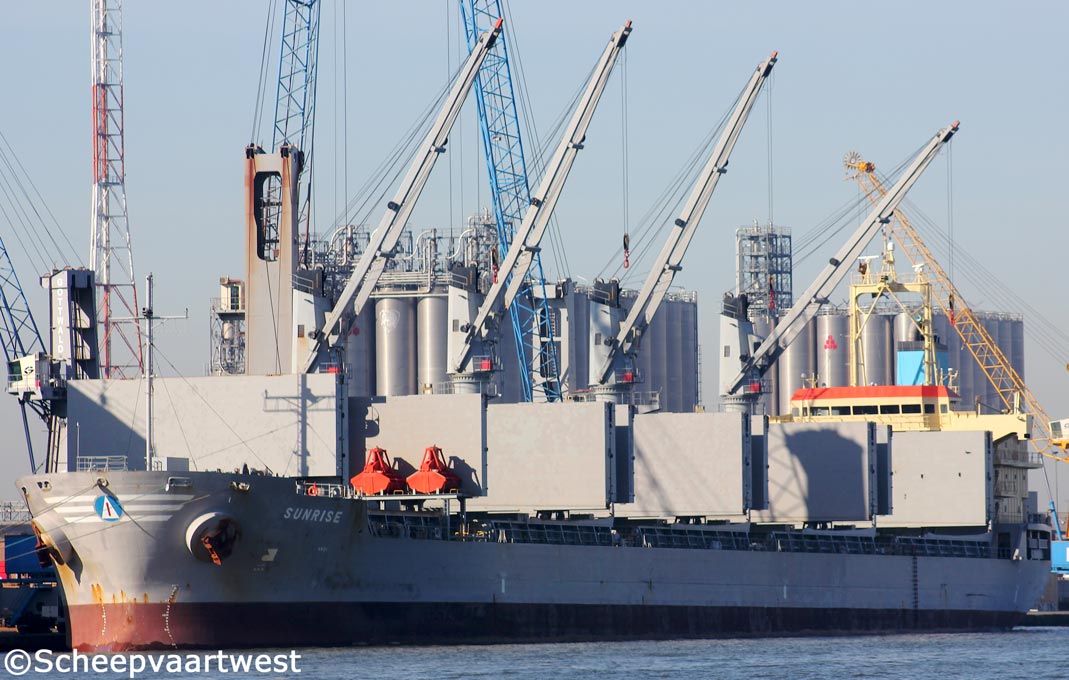

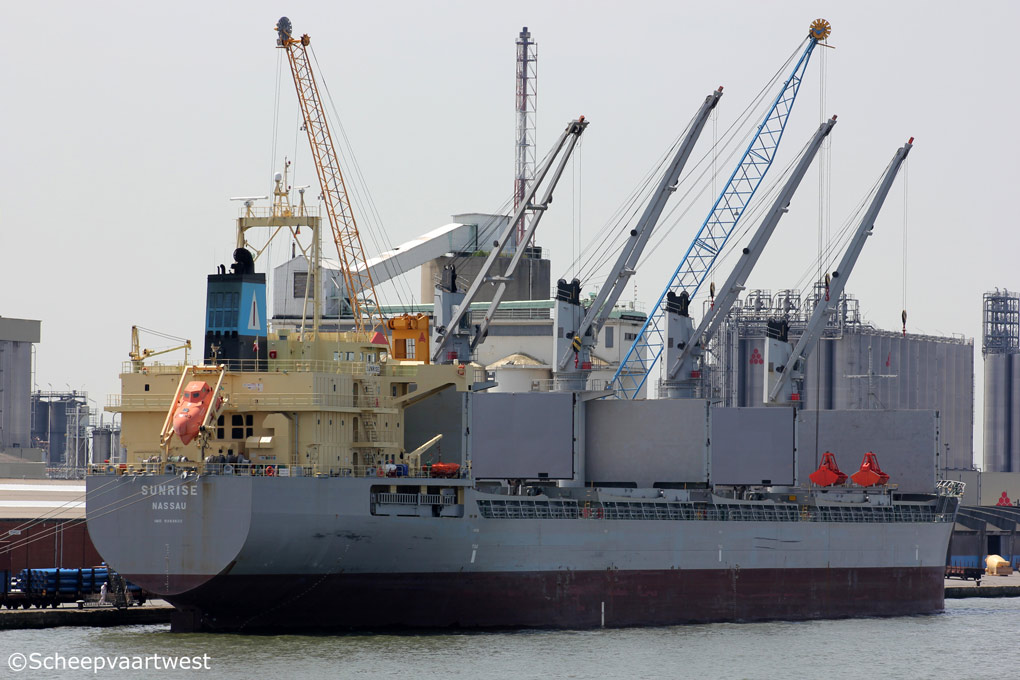

| Antwerpen 24/07/14 | Antwerpen 12/03/15 | Antwerpen 22/07/14 |
|
Name |
SUNRISE |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading - Handysize |
|
IMO-number |
9393620 |
|
Call sign |
C6XM3 |
|
Flag |
Commonwealth of the Bahamas |
|
Port of registry |
Nassau |
|
GT |
22.697 t registered Suez: 23.071,98 t |
|
DWT |
Summer: 37.268 t |
|
NT |
12.674 t registered Panama: 18.913 t Suez: 20.999,08 t |
|
Length |
177,84 m overall |
|
Breadth |
28,60 m moulded |
|
Draught |
10,85 m |
|
Moulded LxBxD |
169,80 x 28,60 x 15,00 m |
|
Registered LxBxD |
170,58 x 28,60 x 15,00 m |
|
Freeboard |
4.190 mm |
|
Depth |
15,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2009 |
|
Keel laid |
28/08/2008 |
|
Launch date |
31/10/2008 |
|
Delivery date |
16/01/2009 |
|
Builder |
Saiki Heavy Industries Co., Ltd. Saiki Japan |
|
Yard number |
1173 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Bulkhead |
Non tight: 8 Water tight: 48 Oil tight: 6 |
|
Main engine |
1x Mitsubishi/Akasaka Diesel 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine 7.080 kW / 9.626 bhp at 133,0 rpm Manufacturer: Akasaka Diesels Limited |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 452 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 130,0 rpm Manufacturer: Nakashima Propeller Co., Ltd. Head Office & Works |
|
Boilers |
1x Auxiliary vertical composite boiler - 6,9 bar Evaporation: 2,14 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x YANMAR 6N18(AL)-DV diesel generatorsets each 563 kVA - 450 kW - 679 hp Manufacturer: Nishishiba Electric Co., Ltd. |
|
Emergency generators |
1x Diesel generatorset 100 kVA - 80 kW - 143 hp |
|
Number of holds |
5 |
|
Holds capacity |
Bales: 45.706,85 m³ Grain: 46.030,12 m³ |
|
Number of tanks |
Ballast: 14 Lubricating Oil: 11 Fuel Oil: 9 Fresh Water: 6 Diesel Oil: 5 Sludge: 4 Chain: 2 Waste Water: 2 |
|
Tank capacities |
Diesel Oil: 315,36 m³ Freshwater: 233,68 m³ Fuel Oil: 1.450,89 m³ Tank Ballast: 14.299,32 m³ Lub oil: 93,70 m³ |
|
Lifting equipment |
1x Provision crane - SWL 1,5 t Manufacture: Mansei Inc. |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Manufacture: Mitsubishi Heavy Industries Ltd. |
|
Grabs |
4x Electro hydraulic each 8,0 m³ Manufacture: Salzgitter Maschinnenbau AG |
|
Crew size |
25 |
|
ISM & commercial manager |
Alberta Shipmanagement Ltd. Ioannou Apostolopoulou 26, Chalandri 152 31 Athens Greece |
|
Registered owner |
Westaway Investments Ltd. Care of Alberta Shipmanagement Ltd. Ioannou Apostolopoulou 26, Chalandri 152 31 Athens Greece |
|
Latest data adjustment |
25 February 2022 |
