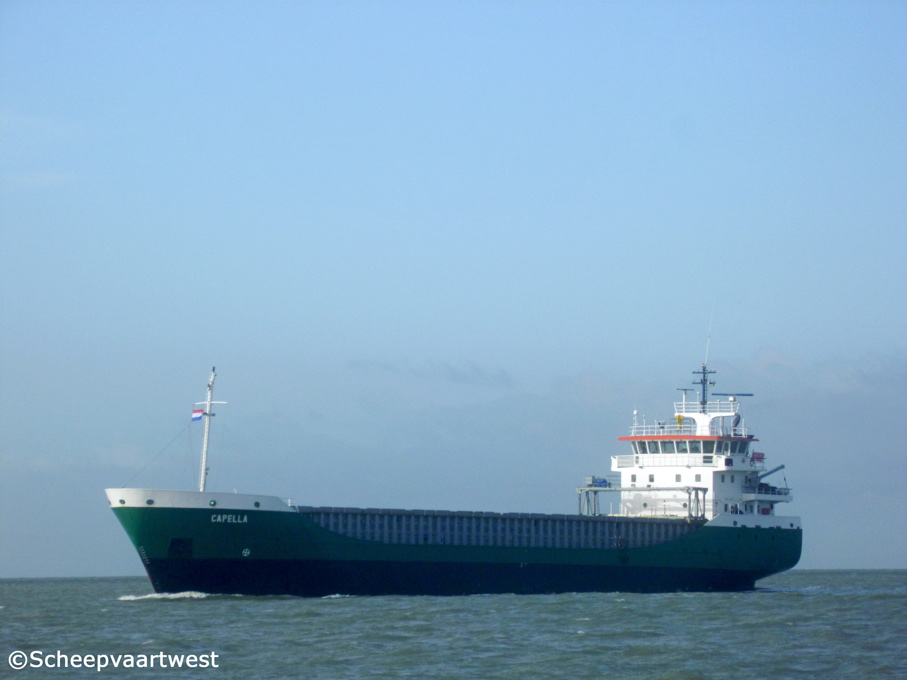

Capella 01

Westerschelde 21 February 2014



Name

CAPELLA

Previous names

1999 - 03.2005 Transmare - The Netherlands, Harlingen - Call sign: PCAS

Type

General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

Box-shaped Singledecker

IMO-number

9190171

Call sign

ZDGT8

Flag

Gibraltar

Port of registry

Gibraltar

GT

2.780 t

DWT

Summer: 3.792 t

NT

1.587 t

Number of 20ft containers

In hold: 96

On deck: 88

Total: 184

Length

89,25 m overall

84,96 m registered

Breadth

13,30 m registered

Draught

5,67 m

Forecastle

8,75 m

Poop

13,20 m

Depth

7,15 m moulded

Speed

12,0 knots

Built

1999

Keel laid

20.04.1998

Launch date

24.04.1999

Date of completion

29.05.1999

Builder

Scheepswerf Peters B.V.
Haatlandhaven 1
8263 AS Kampen
The Netherlands

Yard number

462

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Movable bulkhead

2

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine - 1.800 kW at 750 rpm

Year of manufacture: 1998

Manufacturer: MaK Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 217 rpm

Electric installations

1x Plant 380/220 V - 155 kVA

1x Plant 380 V - 475 kVA

1x Plant 380 V - 82 kVA

Shaft generator

1x 475 kVA

Generators

1x Main diesel generatorset 155 kVA

Emergency generator

1x Diesel generatorset 82 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster 370 kW, forward

Number of holds

2

Each 31,00 x 11,16 8,65 m height

Holds tapering fore 7,20 m and aft 5,00 m

Hold capacity

Grain: 5.687 m³

Number of hatches

2

Each 31,00 x 11,16 m

Tank capacities

Fuel oil: 259 m²

Water ballast: 1.602 m³

Anchor equipment

3x Anchors weight each 1.920 kg

Chain length: 440,00 m

Manager

Reederei Heinz Corleis KG
Freiburger Str. 3
21682 Stade
Federal Republic of Germany

Owner

M.S. Capella G.m.b.H. & Co. KG
Gibraltar

Registered owner

MS "CAPELLA" GmbH & Co. KG
Freiburger Str. 3
21682 Stade
Federal Republic of Germany

Previous names & owners

1999 - 03.2005 Transmare - C.V. Scheepvaartonderneming 'Transmare', Harlingen - The Netherlands

Latest data adjustment

13 February 2015
