Westerschelde 05 June 2014 |
 |

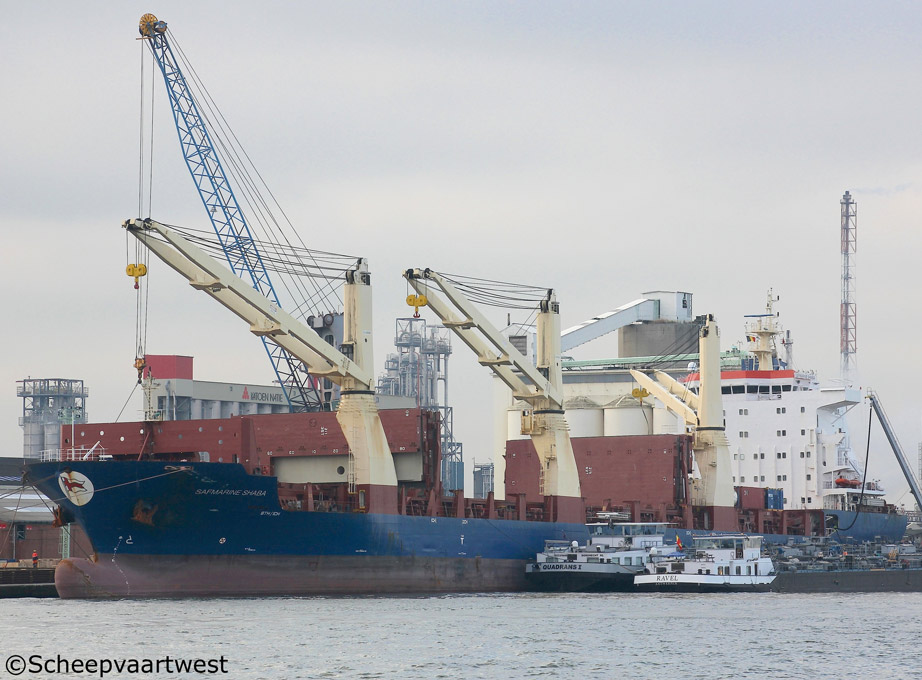

| Antwerpen 14/12/15 |
|
Name |

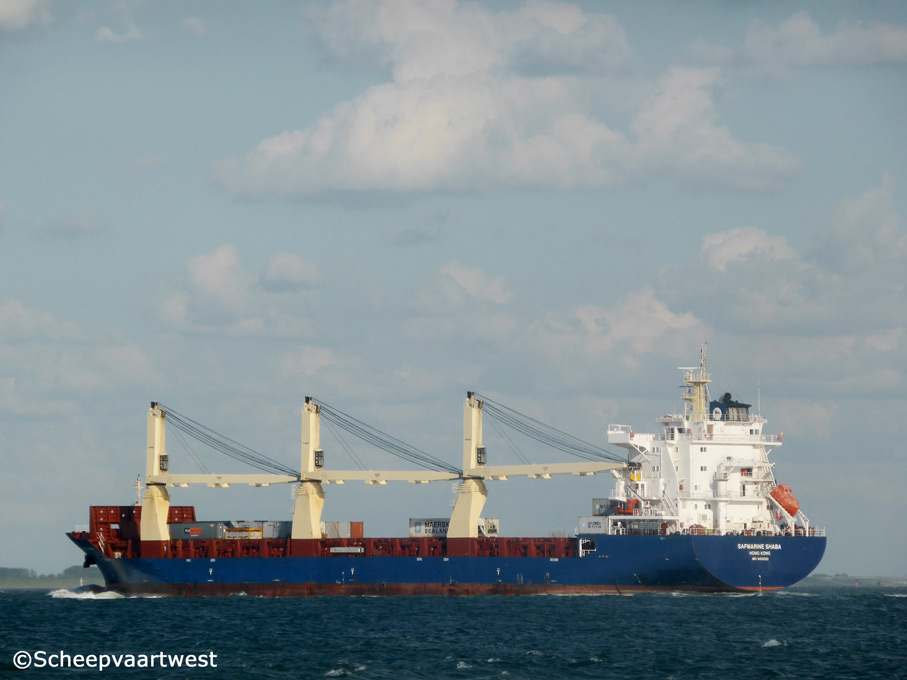

SAFMARINE SHABA |
|
Previous names |
Launch as: Su Gang 2 |
|
Type |
Multi-purpose general cargo vessel - Equipped for the transport of containers |
|
IMO-number |
9430222 |
|
Call sign |
VRIP5 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
14.859 t |
|
DWT |
Summer: 18.010 t |
|
NT |
6.315 t |
|
Number of 20ft containers |
In hold: 424 On deck: 623 Total: 1.051 |
|
Reefer capacity |
144 |
|
Length |
161,50 m overall 153,50 m between perpendiculars |
|
Breadth |
25,26 m extreme 25,18 m moulded |
|
Draught |
Summer: 8,61 m |
|
Keel to mast end |
44,20 m |
|
Depth |
12,43 m to main deck |
|
Speed |
Max.: 17,0 knots Service: 15,6 knots Economic: 13,0 knots |
|
Built |
2012 |
|
Keel laid |
28/10/2009 |
|
Launch date |
01/03/2011 |
|
Date of completion |
13/02/2012 |
|
Builder |
Jiangsu Sugang Shipbuilding Yizheng China |
|
Yard number |
18000-2 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/STX 6S50MC-C - 2 stroke 6 cylinder combustion engine 9.960 kW / 13.542 bhp at 127,0 rpm |
|
Propellers |
1x Fixed pinch mono-block propeller 4 Blades |
|
Boilers |
1x Auxiliary boiler, composite Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Daihatsu 6DK-20 main diesel generatorsets each 900 kW |
|
Bow thruster |
1x 750 kW, forward |
|
Number of holds |
3 |
|
Cargo hold capacity |
Grain: 25.521 m³ / 901.263 ft³ |
|
Number of hatches |
3 |
|
Hatch cover type |
Hydraulic folding |
|
Floor space |
Under deck: 3.836 m² / 41.290 ft² On deck: 2.008 m² / 21.614 ft² |
|
Max permitted loads |
Tanktop: 18,0 t/m² Tweendeck: 3,5 t/m² Hatch covers: 2,5 t/m² |
|
Tank capacities 100% |
HFO: 1.663 m³ MDO: 175,9 m³ Ballast: 7.655,8 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
3x Mc Gregor cranes - SWL 80 t each Combinable: 160 t Situated: portside |
|
Crew |
18 |
|
Manager |
Enzian Shipmanagement Bremgartnerstrasse 7 8003 Zürich Switzerland |
|
Operator |
Safmarine Containers Lines NV Schaliënstraat 3 2000 Antwerpen Belgium |
|
Owner |
Safmarine MPV NV |
|
Renamed |
02/2016 Thorco Rio Hong Kong - Call sign: VRIP5 Operator: Thorco Shipping A/S 2019 BBC Rio 2019 Republic of Panama, Panama City – Call sign: 3E3336 2022 Antigua & Barbuda, St. John’s – Call sign: V2HO8 Owner: Briese Schiffahrts GmbH & Co. KG "MS Plaggenburg" – Germany Manager: Briese Heavylift GmbH & Co KG - Germany |
|
Latest data adjustment |
24 April 2024 |
