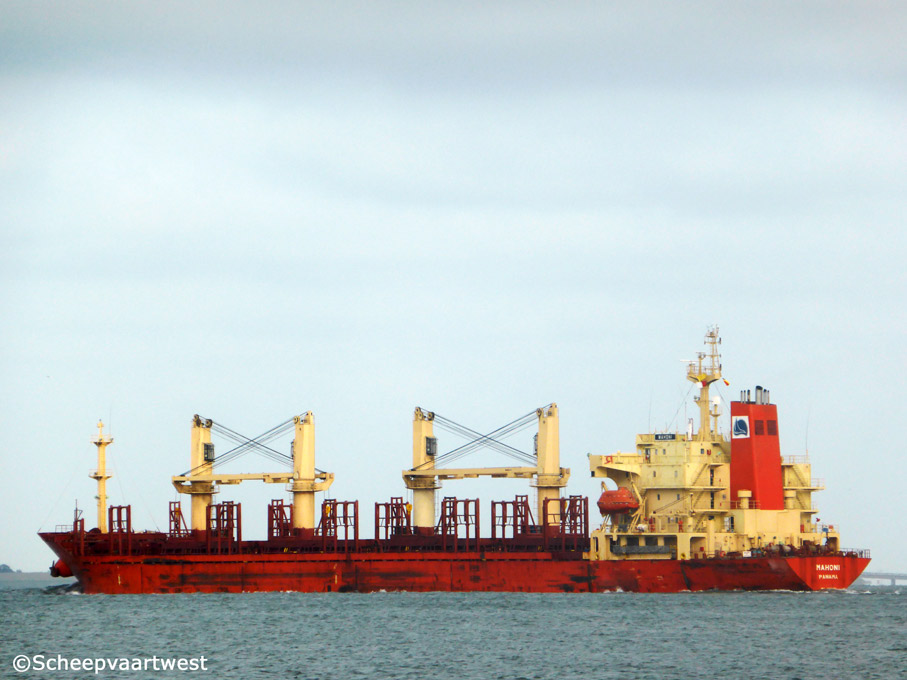

Mahoni 01

Westerschelde 17 June 2014

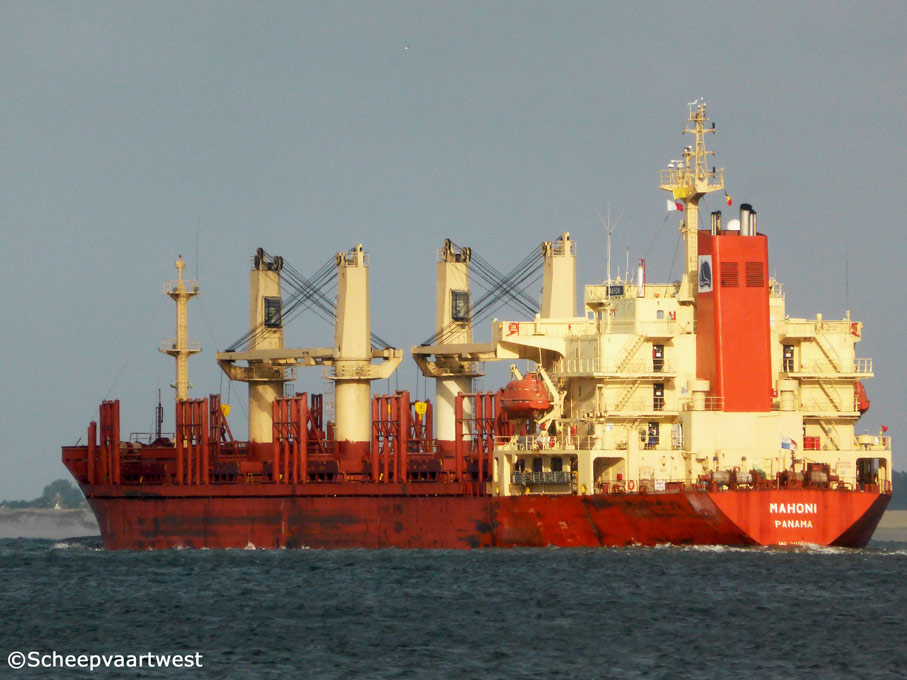

Mahoni 02
Westerschelde 17/06/14



Name

MAHONI

Previous names

1997 - 09.2011 New Diamond

Type

Bulk carrier

IMO-number

9117868

Call sign

3FST6

Flag

Republic of Panama

Port of registry

Panama City

GT

16.498 t

DWT

Summer: 27.239 t

Length

167,00 m overall

Breadth

26,20 m

Draught

9,91 m

Freeboard

3.917 mm

Depth

13,80 m

Speed

14,0 knots

Built

1997

Keel laid

23.08.1996

Launch date

14.11.1996

Date of completion

09.01.1997

Builder

Hanjin Heavy Industries & Construction Co., Ltd.
Ulsan
South Korea

Yard number

631

Hull material

Steel

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 5L50MC - 2 stroke single acting 5 cylinder 500 x 1.620 mm diesel engine 5.479 kW / 6.700 hp at 127,0 rpm

Built: 11.1996

Builder: Doosan Heavy Industries & Construction Co, Ltd., Changwon - South Korea

Propellers

1

Generators

3x Diesel generatorsets each 500 kVA - 450 Volt

Number of holds

5

Hold capacity

35.155 m³

Number of hatchway

5

Hatch 1: 10,40 x 13,40 m

Hatch 2: 16,00 x 15,00 m

Hatch 3: 19,20 x 15,00 m

Hatch 4: 19,20 x 15,00 m

Hatch 5: 19,20 x 15,00 m

Tank capacities

Fuel oil: 1.404,8 m³

Fresh water: 271,4 m²

Water ballast: 16.447,1 m³

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

STX Pan Ocean Co. Ltd.
Seoul
South Korea

Technical manager

STX Marine Service Co., Ltd.

Registered owner

PT Meranti Maritime
Republic of Panama

Previous names & owners

1997 - 2011 New Diamond - New Ocean CX Shg., Republic of Panama

Latest data adjustment

07 March 2015
