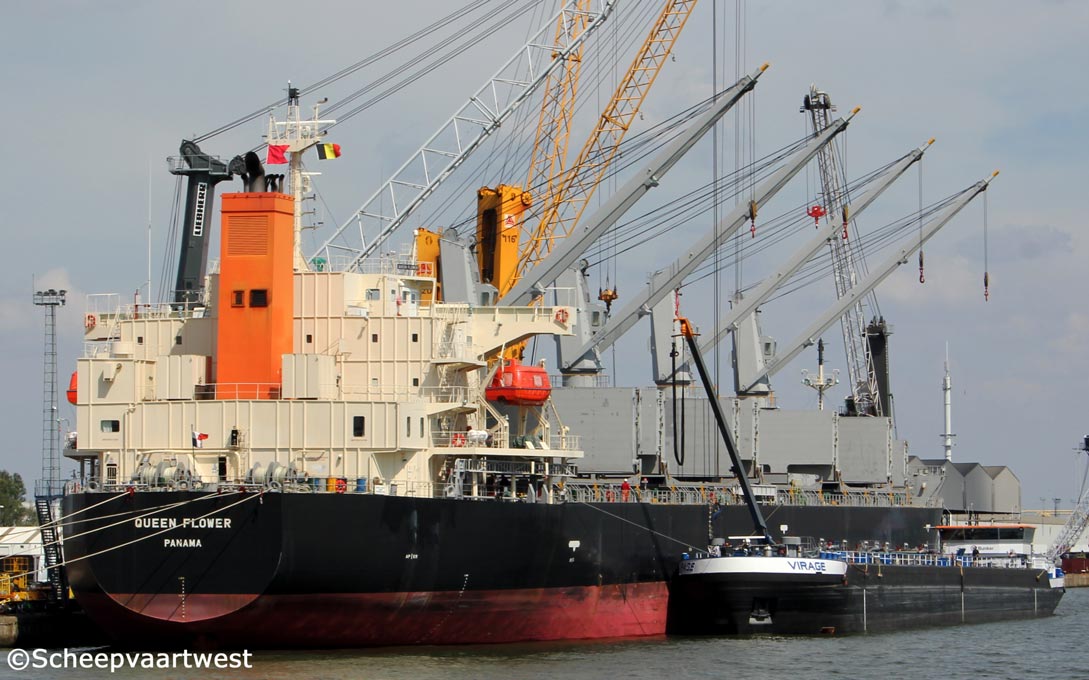

Queen Flower 01

Antwerpen 24 July 2014



Name

QUEEN FLOWER

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9673604

Call sign

3FFT5

Flag

Republic of Panama

Port of registry

Panama City

GT

29.109 t registered

DWT

Summer: 50.477 t

NT

15.554 t registered

Length

182,98 m overall

Breadth

32,26 m moulded

Draught

Summer: 12,15 m

Moulded L x B x D

179,30 x 32,26 x 17,15 m

Registered L x B x D

179,30 x 32,26 x 17,15 m

Freeboard

Summer: 5.053 mm

Depth

17,15 m moulded

Speed

Max.: 16,0 knots

Built

2013

Keel laid

28.12.2010

Launch date

20.01.2013

Date of completion

20.02.2013

Builder

Oshima Shipbuilding Co., Ltd.
Saikai
Japan

Yard number

10649

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 7.760 kW at 107,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 475 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 1,88 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators - 1.850 kVA

Cargo hold capacity

Bale: 58.700 m³

Grain: 59.117 m³

Tank capacities

Fuel oil: 2.006 m³

Fresh water: 344 m³

Water ballast: 20.268 m³

Manager

Toei Japan
Kobe
Japan

Owner

Yamamoto Kisen
Kure
Japan

Registered owner

Queen Flower, S.A.

Latest data adjustment

19 March 2015
