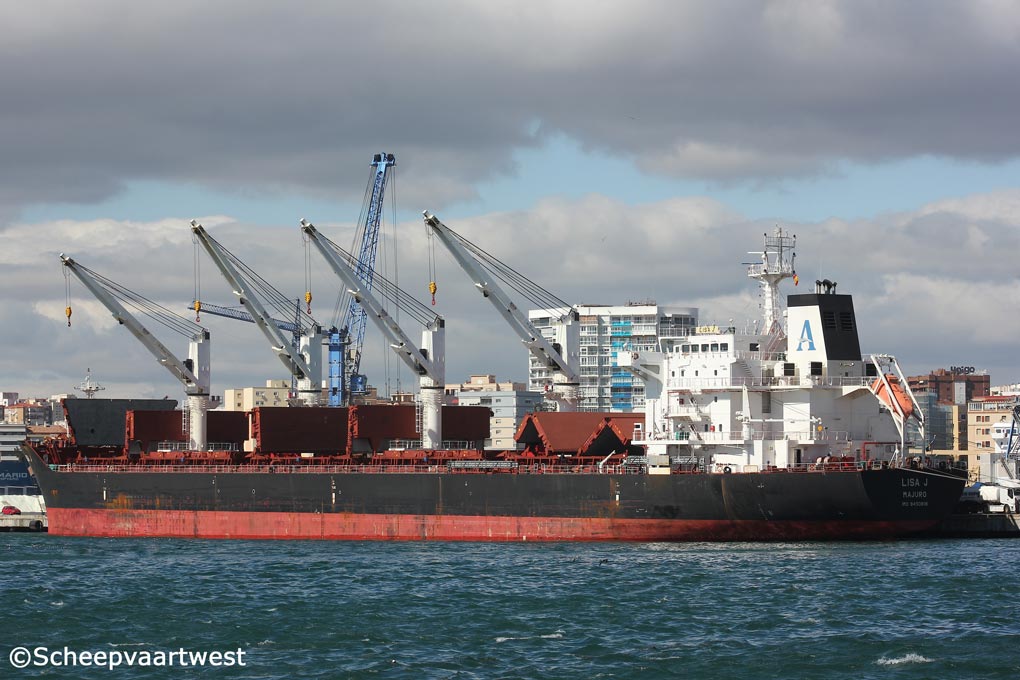

Lisa J 02

Malaga - Spain 23 February 2015

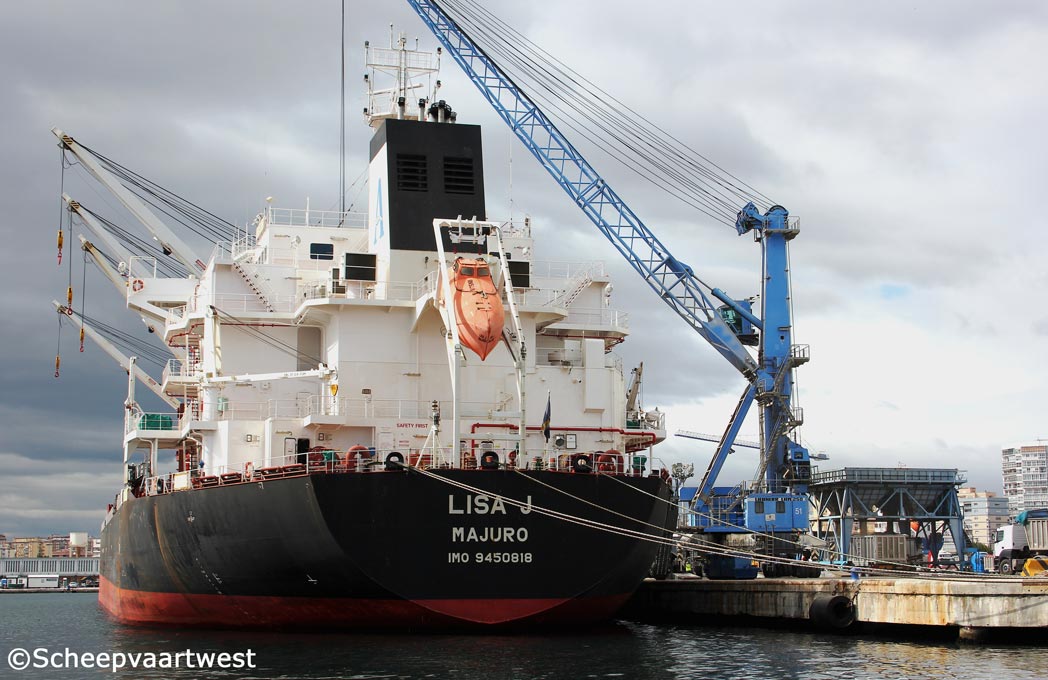

Lisa J 01
Malaga, Spain 21/02/15



Name

LISA J

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9450818

Call sign

V7SN8

Flag

Marshall Island

Port of registry

Majuro

GT

23.456 t registered

DWT

Summer: 34.426 t

NT

11.522 t registered

Length

180,00 m overall

Breadth

30,00 m moulded

Draught

Summer: 9,92 m

Moulded L x B x D

172,00 x 30,00 x 14,70 m

Registered L x B x D

172,95 x 30,00 x 14,70 m

Freeboard

4.825 mm

Depth

14,70 m moulded

Built

2010

Keel laid

17.05.2010

Launch date

12.07.2010

Date of completion

31.08.2010

Builder

SPP Shipbuilding Tongyoung Shipyard Co. Ltd.
Tongyoung
South Korea

Yard number

4010

Hull material

Steel

Main engine

1x Doosan/MAN B&W 5S50MC-C (MK Vll) - 2 stroke single acting 5 cylinder 500 x 2.000 mm diesel engine - 7.900 kW / 10.750 bhp at 127,0 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 450 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 8,8 bar

Evaporation: 3,06 t/h

Manufacturer: SPP Machine Tech Co., Ltd.

Generators

4x Generators - 3.525 kVA

Hold capacity

Grain: 48.765 m³

Tank capacities

Fuel oil: 1.740 m²

Fresh water: 326 m³

Water ballast: 11.441,60 m³

Cargo gear

4x Macgregor electro-hydraulic single Jib deck cranes - SWL 35,0 t each

4x SMAG-Peiner grabs - 12,00 m³ each

Manager

Wallem Shipmanagement Limited

Commercial manager

Apex Bulk Carriers

681 5th Ave, 11th Floor
New York Ny
U.S.A.

Registered owner

Three Navigation Company LLC

Latest data adjustment

29 March 2015
