Antwerpen 12 March 2015 |
|
Name |

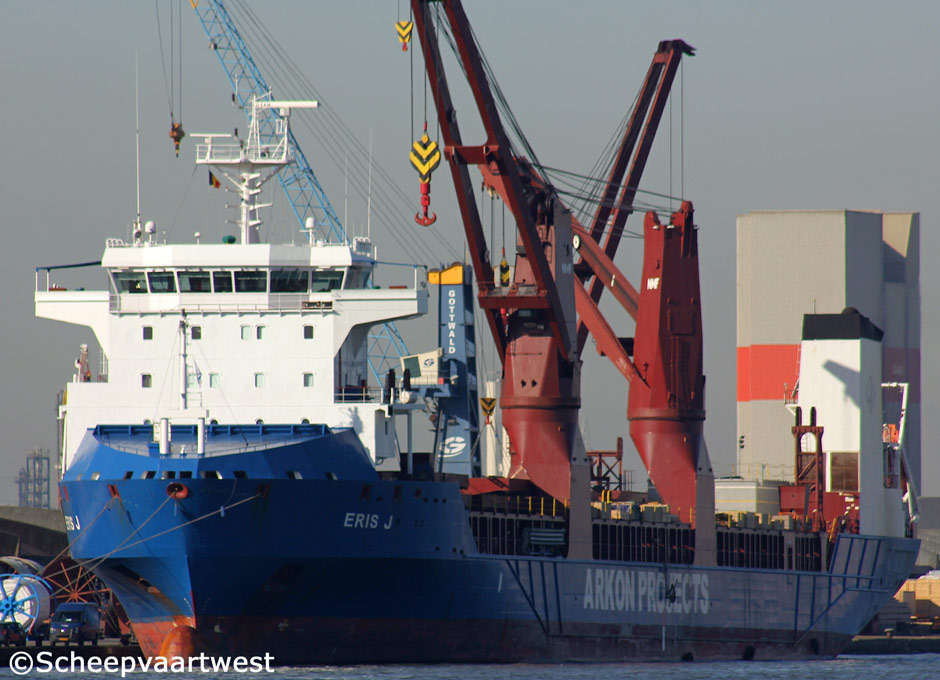

ERIS J |
|
Previous names |
2010 Launch as: Eris J 2010 - 08.2013 Industrial Fighter HHL Everest |
|
Type |
Multi-purpose dry cargo ship - heavylifter Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9506734 |
|
Call sign |
V2FF8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
12.810 t |
|
DWT |
14.288 t |
|
NT |
5.938 t |
|
Number of 20ft containers |
985 |
|
Reefer plugs |
30 |
|
Length |
153,43 m overall 146,35 m registered |
|
Breadth |
23,20 m registered |
|
Draught |
9,10 m |
|
Forecastle |
14,45 m |
|
Bridge |
104,00 m |
|
Depth |
12,80 m moulded |
|
Speed |
17,5 knots |
|
Built |
2010 |
|
Keel laid |
02.12.2008 |
|
Launch date |
10.05.2010 |
|
Date of completion |
23.11.2010 |
|
Builder |
Sainty Shipbuilding (Yangzhou) Corp., Ltd. |
|
Yard number |
07STIG056 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä/Hitachi 6RT-Flex50-B - 2 stroke 6 cylinder 500 x 2.050 mm diesel engine - 9.960 kW at 124,0 rpm Year of manufacture: 2008 Manufacturer: Hitachi Zosen Corporation, Ariake Machinery Works |
|
Propellers |
1x Solid propeller (keyless) - aft at 124,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 34,1 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 157,7 m² Year of manufacture: 2009 Manufacturer: |
|
Electric installations |
3x Plants each 440 V - 950 kVA 1x Plant 440 V - 406,25 kVA 1x Plant 12 V - 200 Ah 1x Plant 12 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah |
|
Generators |
3x Main diesel generatorsets each 950 kVA |
|
Emergency generator |
1x Diesel generatorset 406,25 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for UPS radio 200 Ah 1x Battery for UPS navigation 200 Ah 1x Battery for other purpose 200 Ah |
|
Compressed air receivers |
2x Receivers each 1.900 litres - 33,0 bar 1x Receiver 1.000 litres - 9,0 bar |
|
Bow thruster |
1x Transverse thruster 900 kW, forward |
|
Cargo hold capacity |
Grain: 19.800 m³ |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain Length: 577,50 m |
|
Cargo gear |
2x Cranes - SWL 400 t combi upto 800 t 1x Cranes - SWL 80 t |
|
Crew |
16 |
|
Crew size |
22 |
|
Manager |
Jüngerhans Heavy-Lift-Fleet Services GmbH & Co.KG |
|
Managing owner |
Jüngerhans Maritime Services GmbH & Co. KG |
|
Operator |
ARKON Shipping Projects GmbH & Co. KG Boschstrasse 16 D-49733 Haren (Ems) |
|
Registered owner |
MS "ERIS J" Schiffahrtsges. mbH & Co. KG |
|
Latest data adjustment |
05 April 2015 |
