Westerschelde 22 April 2015 |
Vlissingen 11/12/19 |
Name |

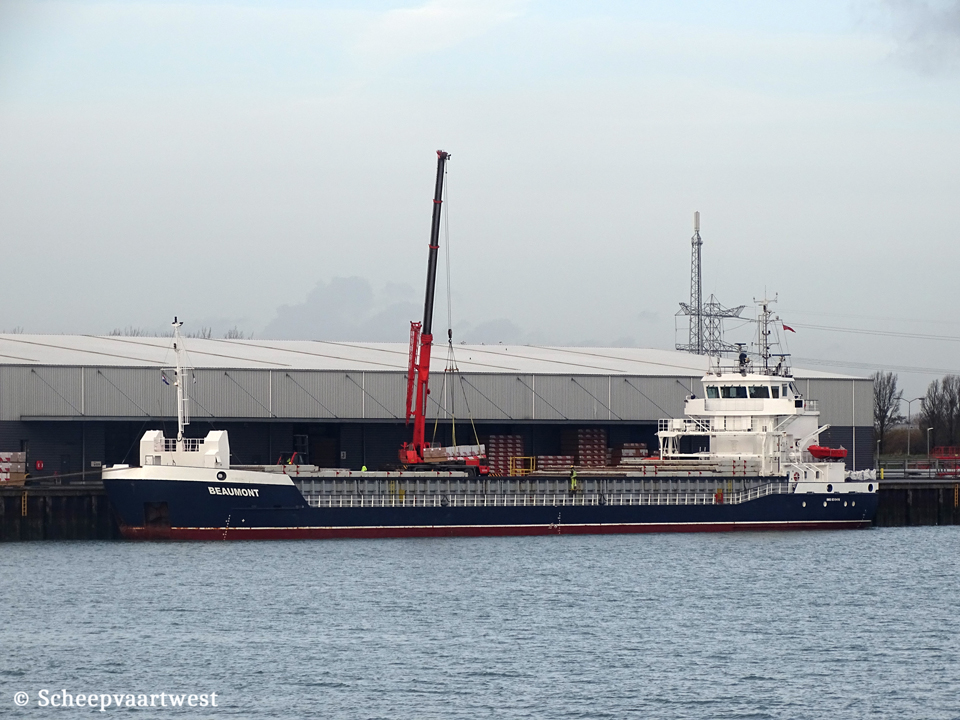

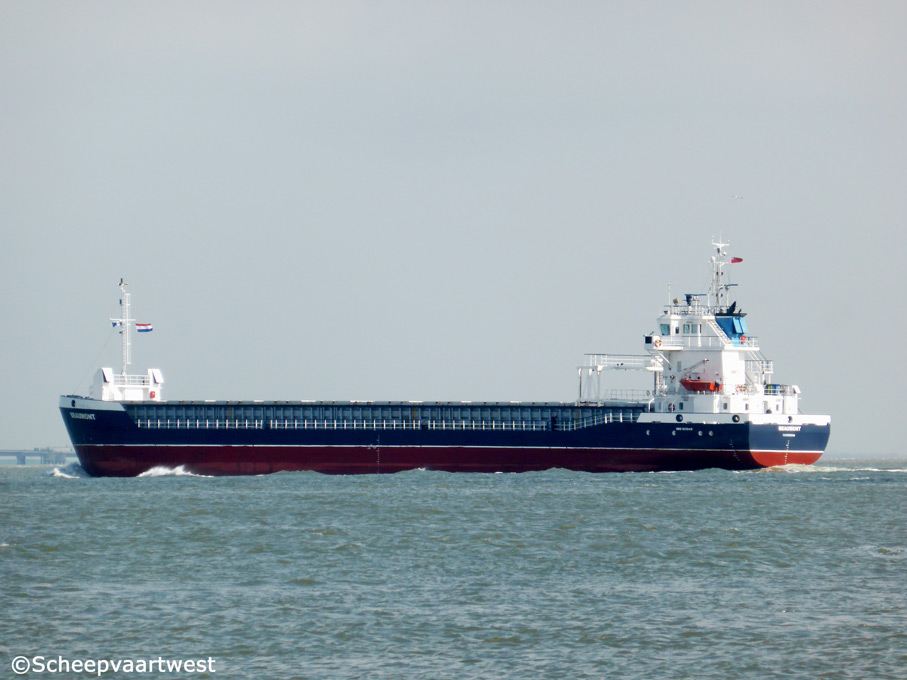

BEAUMONT |
Previous name |
Launch as: Blue Sea |
Type |
Multi-purpose dry cargo ship - Equipped for dangerous goods - Strengthened for heavy cargo Damen Combifreighter 3850 |
IMO-number |
9319416 |
Call sign |
MRJD2 |
Flag |
United Kingdom |
Port of registry |
Faversham |
Previous flag |
04/2005 - 02/2007 The Netherlands, Balk - Call sign: PHDC |
GT |
2.545 t |
DWT |
Summer: 3.792 t |
NT |
1.460 t |
Number of 20ft containers |
188 |
Length |
88,60 m overall 84,99 m registered |
Breadth |
12,50 m registered |
Draught |
Summer: 5,42 m Winter: 5,12 m |
Keel to mast end |
24,80 m |
Air draft |
17,30 m |
Forecastle |
6,45 m |
Quarterdeck |
16,22 m |
Depth |
7,00 m moulded |
Speed |
12,0 knots |
Built |
2005 |
Keel laid |
16/04/2004 |
Launch date |
26/11/2004 |
Delivery date |
15/04/2005 |
Build casco |
Tallina Laevatehus OU Tallin Estonia |
Builder completion |
B.V. Scheepswerf Damen Bergum Industrieterrein Zuid 9250 AA Bergum The Netherlands |
Yard number |
9350 |
Hull material |
Shipbuilding steel (standard) |
Hull type |
Double bottom, continuous from peak to peak bulkhead |
Watertight bulkheads |
7 |
Movable bulkhead |
2x Moveable bulkheads (9 positions) suitable for grain/ subdivision |
Continuous decks |
1 |
Main engine |
1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.067 bhp at 1.000 rpm Reduced power: 1.368 kW Year of manufacture: 2004 Manufacturer: Caterpillar, Inc. 3701 South Street Lafayette, 47905 United States of America |
Propellers |
1x Fixe pitch propeller - aft at 226 rpm |
Boilers |
1x Water heater, oil fired - 5,0 bar |
Generators |
2x Valmet/Sisu 620DSBG diesel generatorset 185 kVA 1x Scania D1(12) diesel generatorset 65 kVA |
Emergency & harbour gen. |
1x Valmet Sisu 420DSRG diesel generatorset 35 kVA |
Compressed air receivers |
2x Receivers each 150 litres - 33,0 bar |
Bow thruster |
1x 220 kW, forward |
Number of holds |
1 Dimensions: 62,70 x 10,10 x 6,75 m |
Hold capacity |
Grain: 185.400 ft³ / 5.250 m³ |
Number of hatches |
1 Dimensions: 62,70 x 10,10 m |
Tank capacities |
Ballast: 1.340 t Bunkers: 211,9 m³ |
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
Lifting device |
1x A-frame crane - SWL 12,5 t |
ISM & commerical manager |
Faversham Ships Care of Faversham Ships Ltd. 5, Ferry Road East Cowes, PO32 6RA United Kingdom |
Previous manager |
04/2005 - 03/2007 VF Shipping B.V., Delfzijl - The Netherlands |
Registered owner |
Atlas Navigation Co. Ltd. Peel East Cowes Isle of Man |
Previuous names & owners |
04/2005 - 03/2007 Beaumont - Unisea Shipping B.V., Balk - The Netherlands 03/2007 - 04/2011 Beaumont - Faversham Ships Ltd., Faversham - United Kingdom |
Latest data adjustment |
27 May 2022 |
