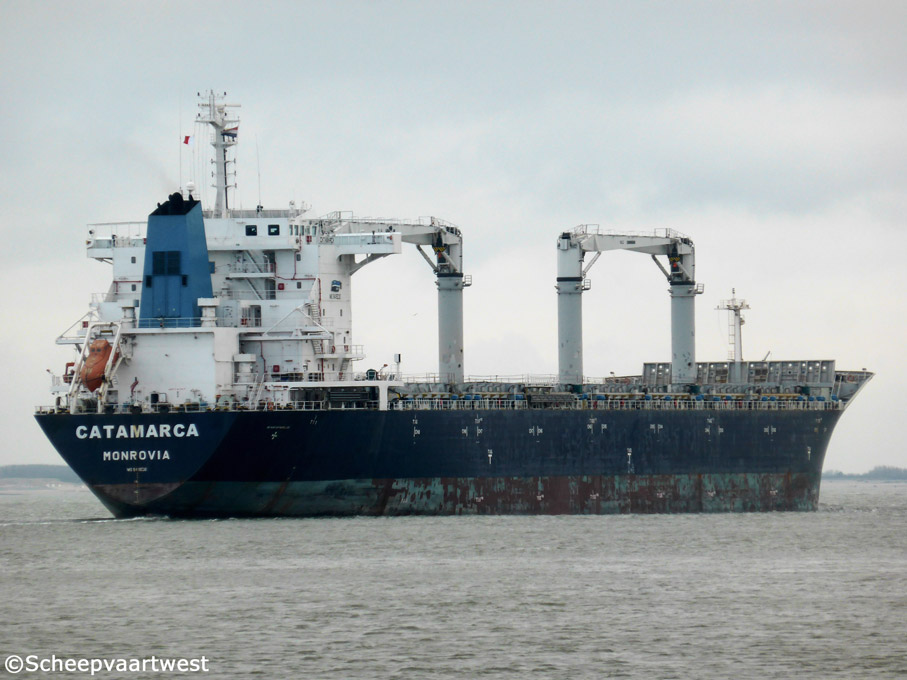

Catamarca 01

Westerschelde 22 April 2015

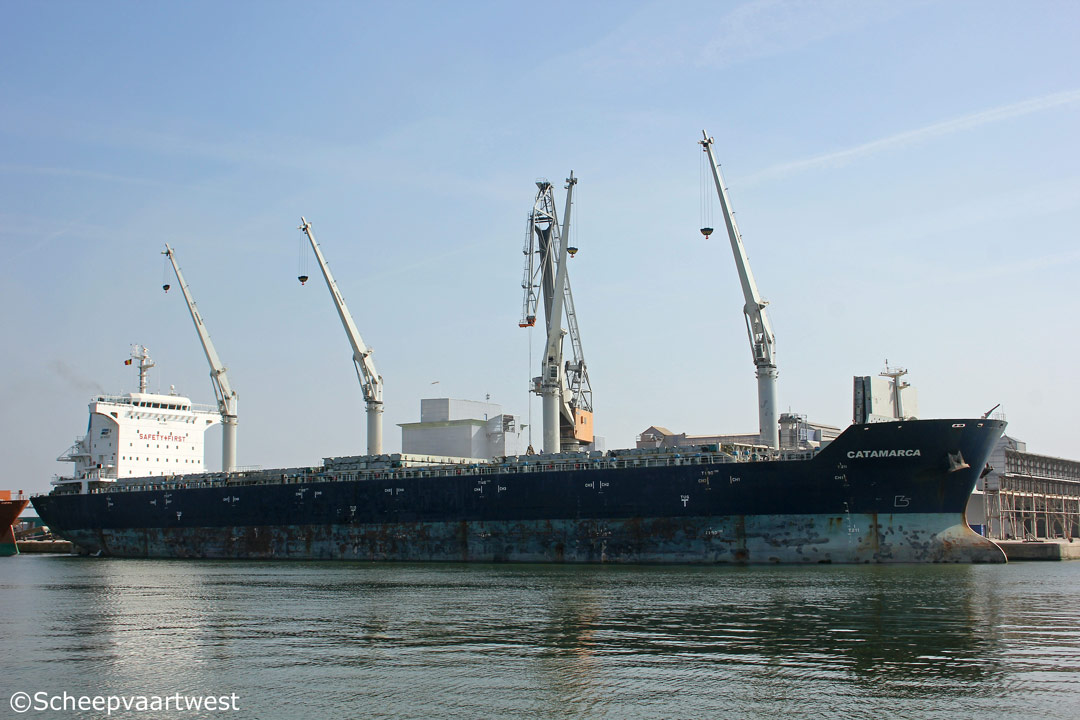

Catamarca 02
Antwerpen 09/04/15



Name

CATAMARCA

Previous names

2009 Launch as: Bodega Sea

06.2009 - 02.2012 Alcmene

Type

Multi-purpose Carrier - ConBulker - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9419230

Call sign

A8QU2

Flag

Liberia

Port of registry

Monrovia

GT

35.240 t

DWT

Summer: 53.021,5 t

NT

16.425 t

Number of 20ft containers

In hold: 1.298

On deck: 735

Total: 2.033

Number of 40ft containers

In hold: 210 FEU + 163 TEU

On deck: 90 FEU +70 TEU

Total: 300 FEU + 233 TEU

Container capacity 14t

2.033

Length

196,29 m overall

186,80 m between perpendiculars

188,36 m registered

Breadth

32,25 m moulded

Draught

13,25 m

Depth

19,50 m moulded

Speed

15,0 knots

Built

2009

Keel laid

12.10.2007

Launch date

18.08.2008

Date of completion

28.06.2009

Builder

Zhejiang Shipping Group Zhoushan Wuzhou Ship Repairing & Building Co., Ltd.
59, Wukuishan Dinghai District
Zhoushan
People's Republic of China

Yard number

WZ0040602

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom

Watertight bulkheads

12

Continuous decks

1

Main engine

1x MAN B&W 7S50MC-C Mk7 - 2 stroke 7 cylinder 500 x 2.000 mm diesel engine 11.060 kW at 127,0 rpm

Year of manufacture: 2008

Manufacturer: STX Engine Co., Ltd.
36, Gongdanro474-gil Sungsan-gu
Changwon
Republic of Korea

Propellers

1x Solid propeller - aft at 127,0 rpm

4 blades - Diameter: 5.800 mm

Boilers

1x Steam boiler, oil fired - 8,0 bar

Heating surface: 13,35 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 208,0 m²

Year of manufacture: 2007

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao
People's Republic of China

Electric installations

3x Plants each 450 V - 1.081 kVA

1x Plant 450 V - 150 kVA

Generators

3x Main diesel generatorsets each 1.081 kVA / 910 kW at 1.800 rpm

Emergency generator

1x Diesel generatorset 150 kVA / 120 kW at 720 rpm

Compressed air receivers

2x Receivers each 4.500 litres - 30,0 bar

1x Receiver 320 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Number of holds

8

Hold 1: 14,28 x 16,18 x 9,96 m

Hold 2-7: 16,72 x 27,50 x 19,50 m

Hold 8: 14,28 x 27,50 x 19,50 m

Hold capacity

Grain / Bale: 64.231,5 m³

Hatches

1x Hatch welded steel construction/ folding type TTS hydraulically operated "trans-folding" hatch cover (14,64 x 16,60 m)

1x Hatch welded steel construction/ TTS electrically & hydraulically operated "piggy-back" hatch covers (17,07 x 27,92 m)

1x Hatch welded steel construction/ folding type TTS hydraulically operated "trans-folding" hatch cover (14,64 x 27,92 m)

Tank capacities

Heavy fuel oil: 2.153,1 m³

Marine diesel oil: 124 m³

Lub oil: 136,69 m³

Ballast water: 21.535,9 m³

Fresh water: 279 m³

Anchor equipment

3x Anchors weight each 10.500 kg

Chain length: 660,00 m

Cargo gear

4x Cranes - SWL 45,0 t each

Accommodation

For a crew of 25 persons with heating, ventilation and air-conditioning

Manager

NSC Shipping GmbH & Cie. KG
Van-der-Smissen-Str. 9
22767 Hamburg
Federal Republic of Germany

Registered owner

MS "BODEGA SEA" Schifffahrtsgesellschaft mbH & Co. KG
Van-der-Smissen-Str. 9
22767 Hamburg
Federal Republic of Germany

Latest data adjustment

21 May 2015
