Westerschelde 22 April 2015 |
|
Name |

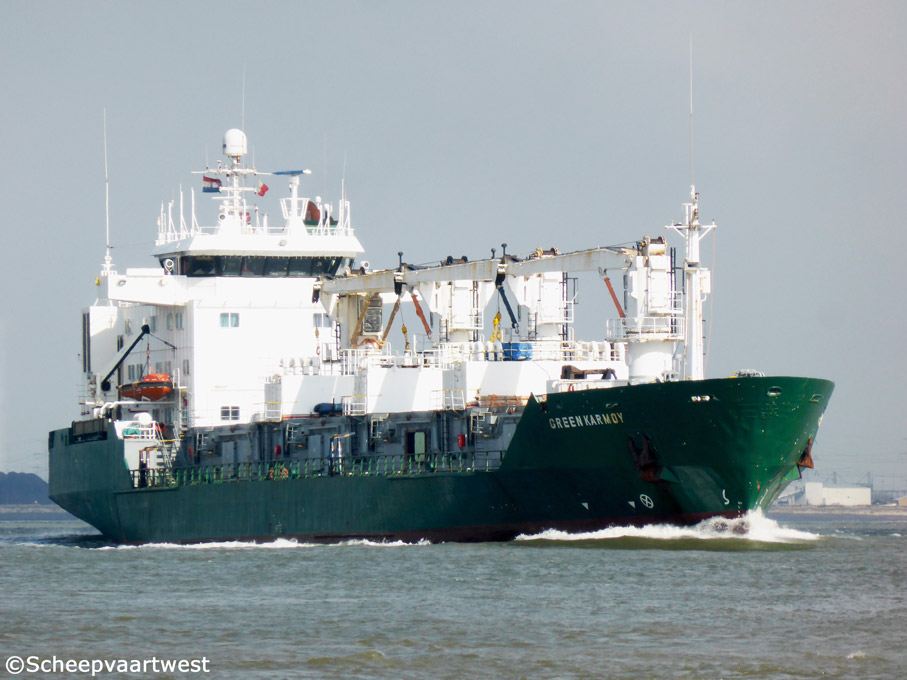

GREEN KARMOY |
|
Previous names |
1989 - 05.1994 Erikson Arctic 05.1994 - 06.1996 Belinda 06.1996 - 06.2000 Wisida Arctic 06.2000 - 09.2001 Green Karmoy 09.2001 - 11.2001 Arctic Ice |
|
Type |
General cargo ship - Reefer |
|
IMO-number |
8804531 |
|
Call sign |
C6XH2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1989 - 2000 Bahamas 2000 - 2002 United Kingdom 2002 - 2003 Bahamas 2003 - 2008 United Kingdom |
|
GT |
5.084 t |
|
DWT |
Summer: 6.120 t |
|
NT |
3.163 t |
|
Number of 20ft containers |
Hatchcover: 42 Weatherdeck: 52 Holds: 48 Total: 142 |
|
Number of 40ft containers |
Hatchcover: 20 Weatherdeck: 24 Total: 44 |
|
Reefer plugs |
20 |
|
Length |
109,00 m overall 101,40 m between perpendiculars |
|
Breadth |
17,98 m extreme |
|
Draught |
7,41 m |
|
Depth |
9,80 m |
|
Speed |
16,0 knots |
|
Built |
1989 |
|
Keel laid |
01.10.1988 |
|
Launch date |
12.08.1989 |
|
Date of completion |
30.09.1989 |
|
Builder casco |
Solisnor-Estaleiros Navais |
|
Builder completion |
Kleven Løland Verft |
|
Yard number |
106 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 7 |
|
Main engine |
1x Wärtsilä 12V32 - 4 stroke 12 cylinder diesel engine 4.043 kW / 5.500 bhp Builder: Wärtsilä Finland Oy |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
1x Mitsubishi S6R-MPTA main diesel generatorsets 890 kW 2x Mitsubishi S6R-MPT main diesel generatorsets each 390 kW |
|
Emergency generator |
1x Perkins4.236 diesel generatorset |
|
Bow thruster |
1x 700 bhp |
|
Cargo capacity |
265.770 ft³ / 7.525 m³ |
|
Hatches |
All hatches to all holds/compartments have free opening of minimum 9,80 x 8,00 m with exception of hatch to compartment 1B and 1C where openings are 8,40 x 8,00 m and 6,30 x 8,00 m |
|
Deck area |
3.233 m² |
|
Temperatures |
8 Separate cooling sections, with sufficient compressor capacity for keeping -25 to +12 degrees Celsius |
|
Ventilation |
Air changes per hour: 90 Air renewal per hour: 3 |
|
Tank capacities |
Ballast: 1.402 m³ Fresh water: 211 m³ IFO: 627 m³ MGO: 126 m³ |
|
Cargo gear |
4x Electric hydraulic cranes - SWL 6,0 t each |
|
Manager |
Green Management Sp. z.o.o. |
|
Previous managers |
1989 - 2003 Norbulk Shipping UK Ltd. |
|
Owner |
Green Shipping AS |
|
Previous owners |
1989 - 2002 Wissel I Ltd. 2002 - 2011 Green Tulip Corporation |
|
Latest data adjustment |
21 May 2015 |
