Antwerpen 07 May 2015 |
 |
| Antwerpen 07/05/2015 |
|
Name |

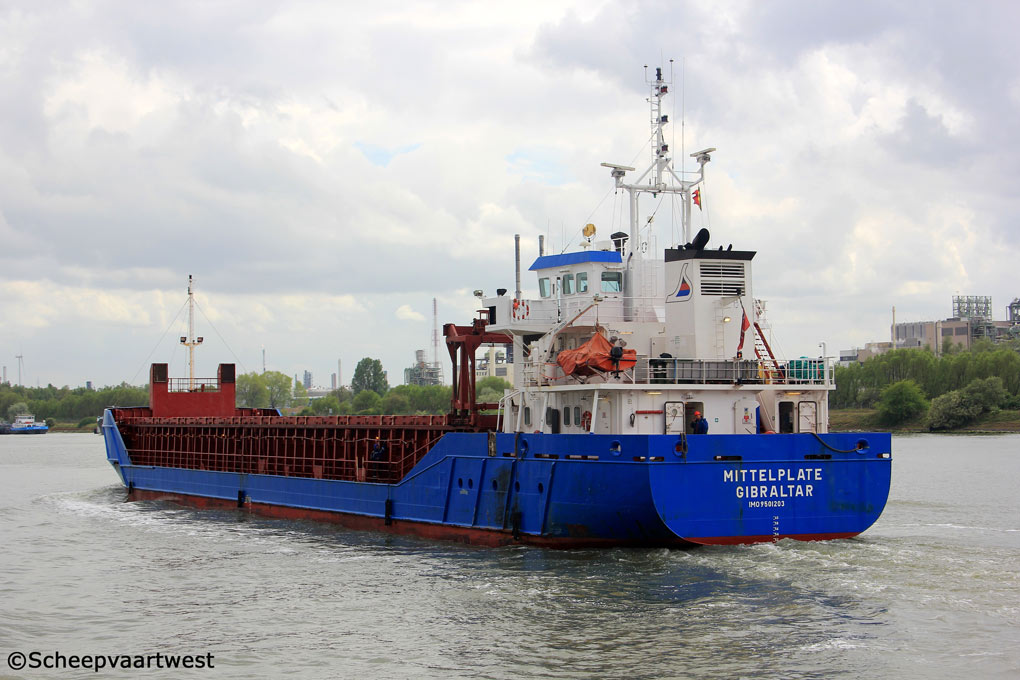

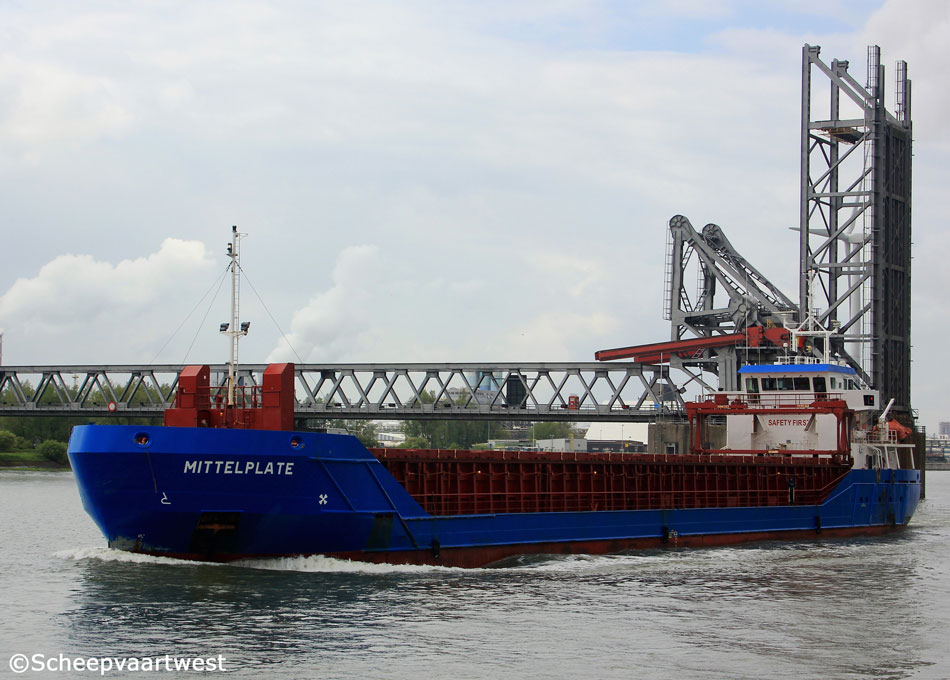

MITTELPLATE |
|
Type |
Multi-purpose cargo ship - equipped for carriage of containers - timber fitted - strengthened for heavy cargo - equipped for carriage of dangerous goods |
|
IMO-number |
9501203 |
|
Call sign |
ZDJC8 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
2.415 t |
|
DWT |
Summer: 3.300 t |
|
NT |
1.361 t |
|
Number of 20ft containers |
In hold: 102 On deck: 36 Total: 138 |
|
Number of 40ft containers |
In hold: 48 + 6 TEU On deck: 16 + 4 TEU Total: 64 + 10 TEU |
|
Length |
86,00 m overall 82,42 m between perpendiculars |
|
Breadth |
12,40 m |
|
Draught |
5,30 m |
|
Height above keel |
24,00 m |
|
Speed |
12,8 knots ballast |
|
Built |
2009 |
|
Date of completion |
03.2009 |
|
Builder |
Lisemco Lilama Shipyard |
|
Hull material |
Steel |
|
Movable bulkhead |
2x Movable grain bulkheads with 7 locations operated by vessels gantry crane |
|
Main engine |
1x MaK 6M25 - 6 cylinder diesel engine 1.980 kW at 750 rpm |
|
Propellers |
1x 4 bladed controllable pitch propeller |
|
Shaft generator |
1x 280 kW |
|
Generators |
1x Main diesel generatorset 120 kW |
|
Emergency generator |
1x Diesel generatorset 90 kW |
|
Number of holds |
1 Dimensions: 59,10 x 10,20 x 8,40 m |
|
Hold capacity |
Grain / Bale: 4.971 m³ / 175.550 ft³ |
|
Hold ventilation |
6 times / hour |
|
Number of hatches |
1 Dimensions: 59,40 x 10,50 m |
|
Hatch cover type |
10x panels, lift away covers of pontoon type / electric hydraulic operated by gantry crane |
|
Strength |
Tank top: 14,0 t/m² Tweendeck: 2,50 t/m² On deck: 1,60 t/m² |
|
Tank capacities |
HFO: 225 m³ MGO: 54 m³ Ballast: 1.300 m³ Fresh water: 33 m³ |
|
Cargo gear |
Gearless |
|
Accommodation |
7 persons, 6 cabins |
|
Manager |
Briese Schiffahrt |
|
Owner |
Briese Schiffahrt |
|
Latest data adjustment |
31 May 2015 |
