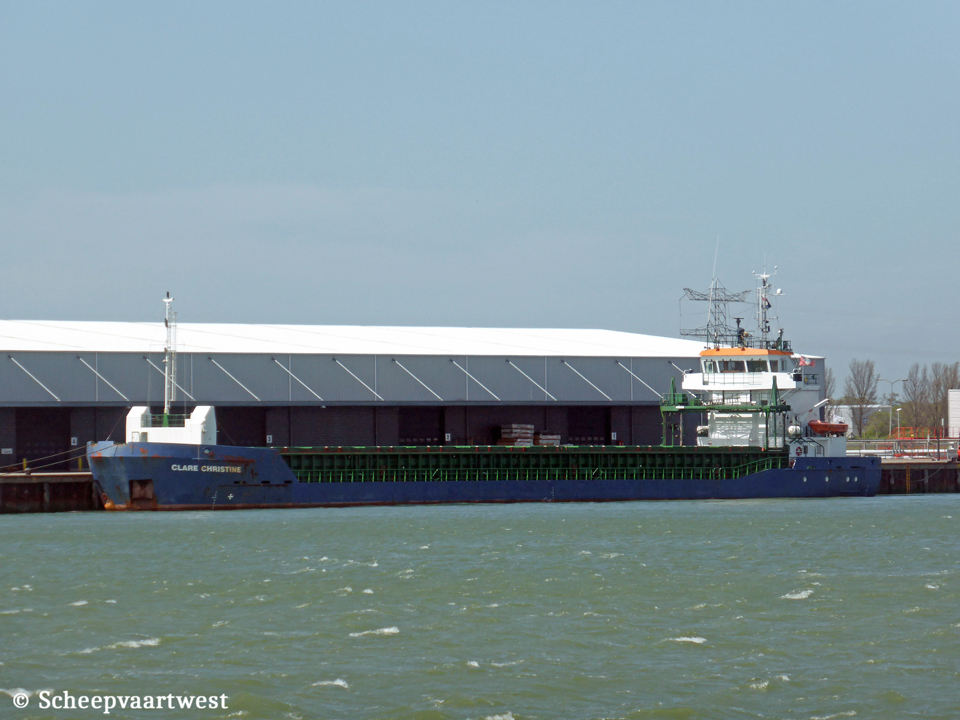

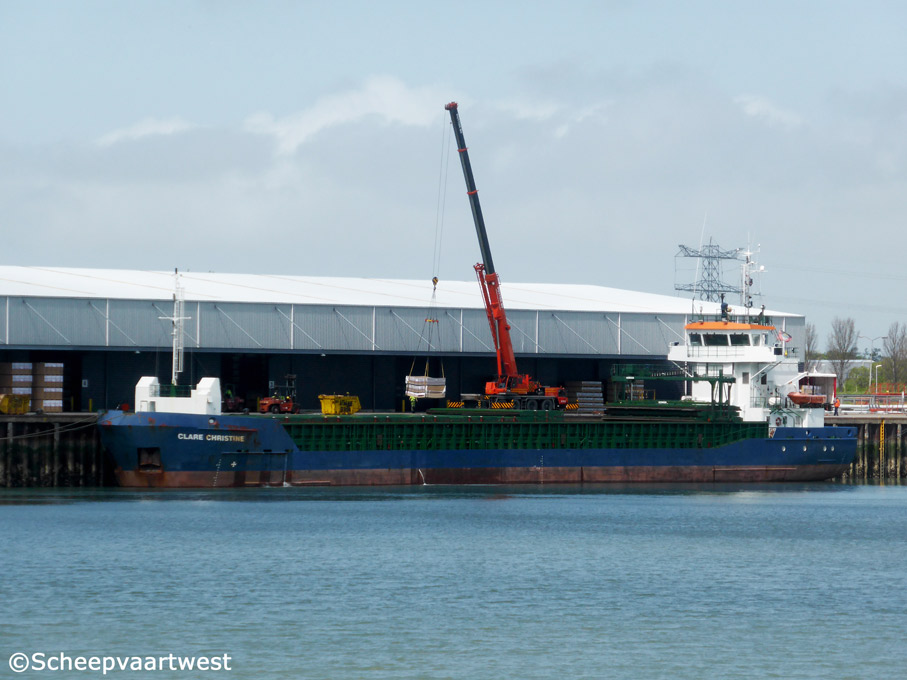

Vlissingen 07 May 2015 |
 |
|
| Vlissingen 05/05/15 | |
|
Name |
CLARE CHRISTINE |
|
Type |
Multi-purpose general cargo ship - Equipped for dangerous goods - Strengthened for heavy cargo DAMEN Combi Freighter 3850 |
|
Basic functions |
Transport of bulk, steel coils, containers, forest products, general cargo |
|
IMO-number |
9370290 |
|
Call sign |
V2DT7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.545 t |
|
DWT |
Summer: 3.850 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 108 On deck: 80 Total: 188 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,51 m moulded |
|
Draught |
Summer: 5,42 m 3,20 m ballast |
|
Keel to mast end |
24,80 m |
|
Depth |
7,00 m |
|
Speed |
Service: 11,1 knots Max: 12,3 knots |
|
Built |
15/01/2009 |
|
Builder casco |
ATVT Zavod Leninska Kuznya Kiev Ukraine Yard number: Y9370290 |
|
Builder completion |
Damen Shipyard Bergum Bergum The Netherlands Yard number 9399 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 KW / 2.067 hp at 1.000 rpm Builder: Caterpillar Mak Motoren GmbH & Co.KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller Diameter 2.600 mm |
|
Generators |
1x Scania diesel generatorset 324 kVA - 50 Hz 1x Sisu diesel generatorset 120 kVA - 50 Hz |
|
Harbour / Emergency gen. |
1x Sisu diesel generatorset 77 kVA - 50 Hz |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch thruster 220 kW |
|
Auxiliary equipment |
1x MDO separator 1x Fuel oil trim pump 1x Bilge water separator, acc. to Marpol regulations 2x General service pumps, each 150 m³/h at 2,3 bar 1x Fire fighting pump 1 Freshwater pressure set 1x CO2 fire fighting system for engine room and cargo hold |
|
Deck lay-out and equipment |
1x Elec. driven bow anchor winch with two warping heads 1x Elec. driven capstan aft Rudder, fishtail type Container fittings in tanktop and on hatch covers Lashing eyes in hold and on outside of coaming 2x Moveable grain bulkheads with 9 stowage positions Electrically driven hold ventilation for 6 air changes per hour |
|
Number of holds |
1 62,70 x 10,10 x 8,40 m |
|
Cargo hold capacity |
5.250 m³/ 185.400 ft³ |
|
Timber capacity |
4.500 m³ |
|
Number of hatches |
1 Dimensions: 62,70 x 10,10 m |
|
Hatch cover type |
Steel pontoon hatchcovers with Gantry crane |
|
Tank capacities |
MDO 199.6 m³ Gas oil: 10,7 m³ Lub oil clean: 8,6 m³ Dirty oil: 4,0 m³ Sludge: 4,0 m³ Sewage: 12,0 m³ Potable water: 56,4 m³ Ballast water: 1.140 m³ |
|
Accommodation |
For captain and crew for a total of 9 persons with heating, ventilation and air-conditioning |
|
Manager |
Grimpe Shipmanagement GmbH & Co. KG Louis-Leitz-Straße 1 28355 Bremen Germany |
|
Managing owner |
Kommanditgesellschaft Garbrecht & Grimpe Schifffahrts GmbH & Co. M/S “CLARE CHRISTINE.” Bruchhausen-Vilsen Germany |
|
Owner |
Grimpe Marine Consulting Bruchhausen-vilsen Germany |
|
Registered owner |
MS 'Clare Christine' Schiffahrtsgesellschaft mbH & Co., KG, Bruchhausen-Vilsen Germany |
|
Renamed |
2016 Indi Portugal, Madeira - Call sign: CQIG3 Owner: Indi Interscan UG - Germany Manager: Raboisen 32, 20095 Hamburg - Germany |
|
Latest data adjustment |
19 July 2023 |
