Name |

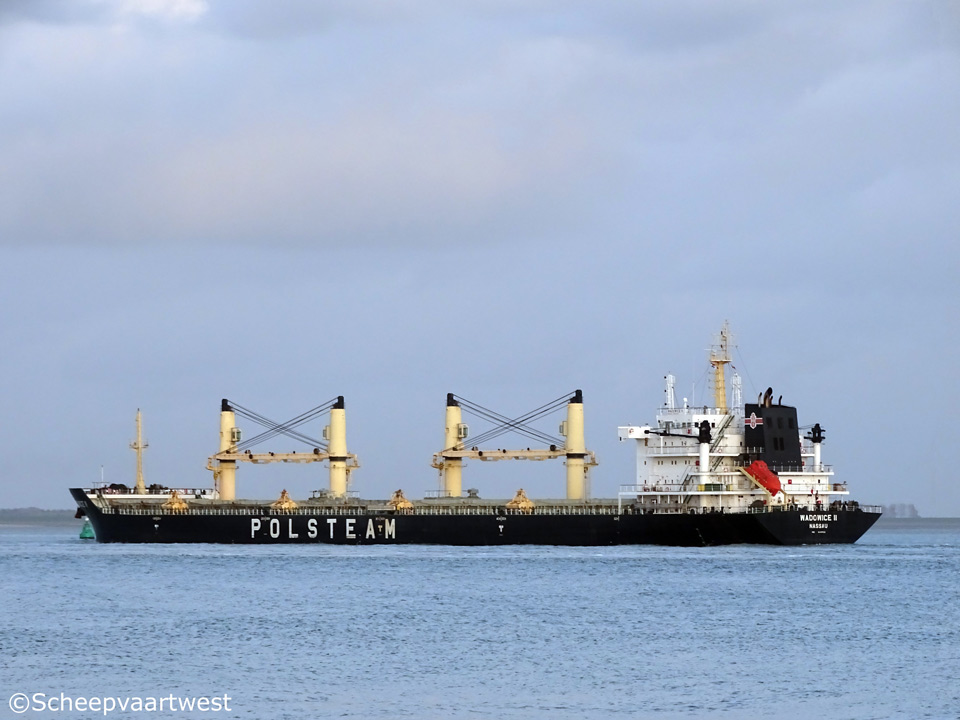

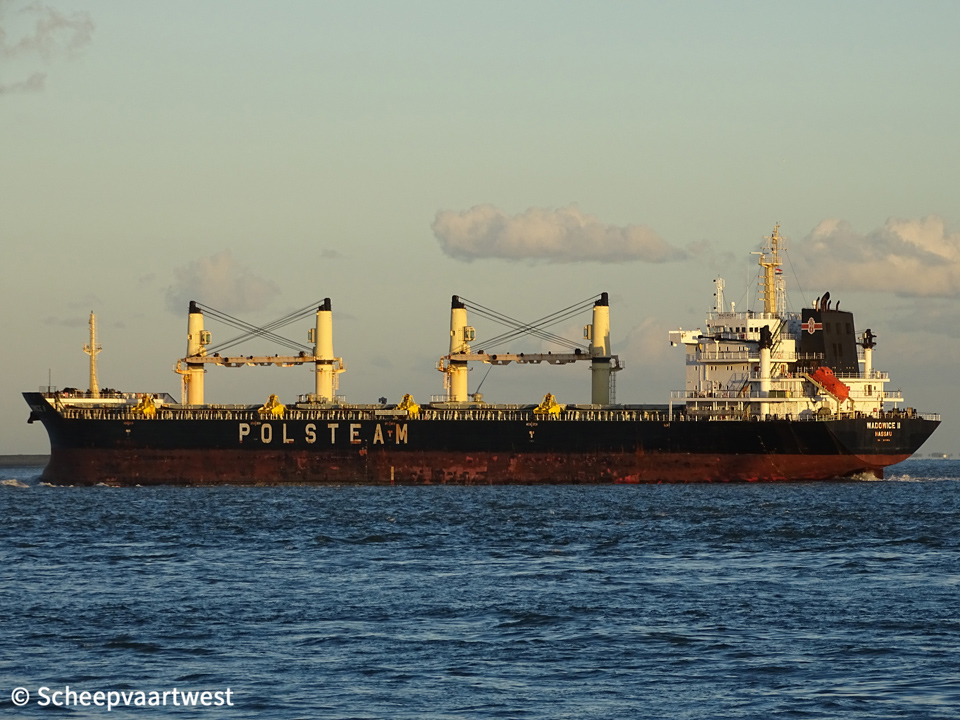

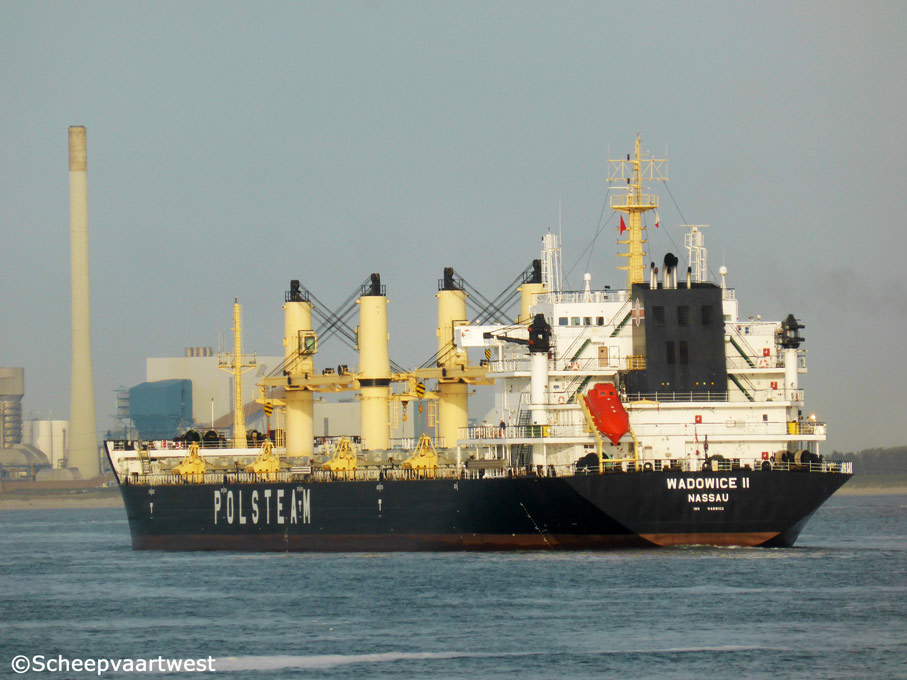

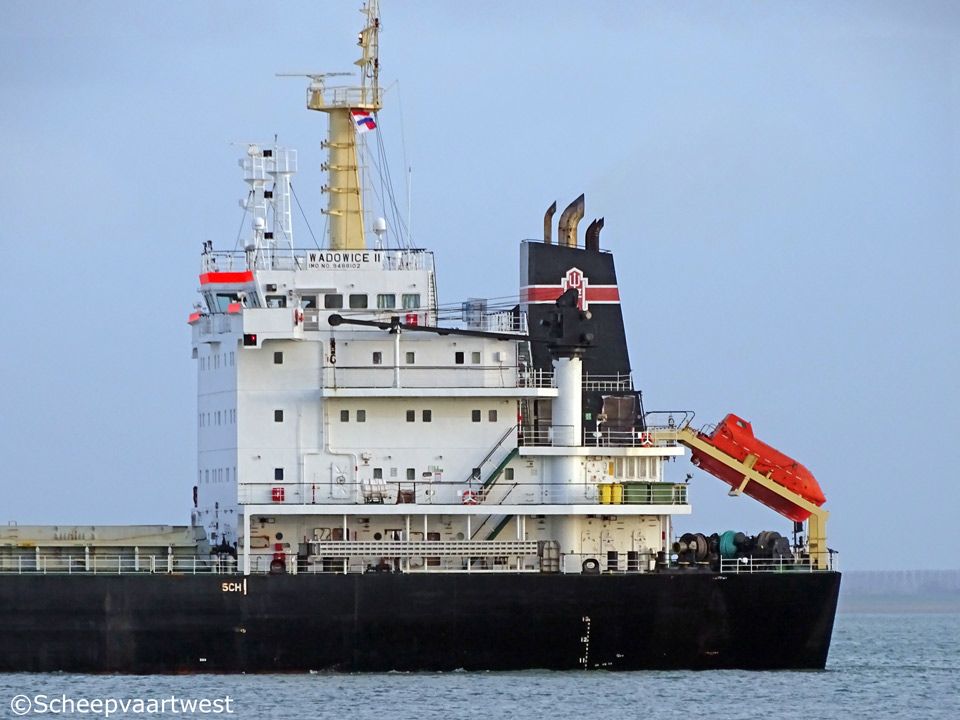

WADOWICE II |
|
Previous names |
2010 Launch as: Wadowice |
|
Type |
Bulk carrier - Strengthened for heavy cargoes |
|
IMO-number |
9488102 |
|
Call sign |
C6XW7 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
24.055 t registered Suez: 25.367,62 t |
|
DWT |
Summer: 38.061 t |
|
NT |
12.162 t registered Suez: 22.834,77 t Panama: 20.028 t |
|
Light ship |
8.860 t |
|
Length |
189,99 m overall 183,00 m between perpendiculars |
|
Breadth |
28,50 m moulded |
|
Draught |
10,70 m |
|
Freeboard |
4.729 mm |
|
Depth |
15,10 m moulded |
|
Speed |
14,2 knots |
|
Built |
2010 |
|
Keel laid |
22/07/2006 |
|
Launch date |
08/01/2010 |
|
Date of completion |
30/03/2010 |
|
Builder |
Xingang Shipbuilding Heavy Industry Co., Ltd. Tianjin China |
|
Yard number |
SB 345-14 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Watertight bulkheads |
15 |
|
Main engine |
1x Wärtsilä 6RTA48T-B - 6 cylinder 480 x 2.000 mm combustion engine 7.368 kW at 118,0 rpm Manufacturer: Yichang Marine Diesel Engine Plant Co.Ltd.(Sulzer), Yichang - China |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
1x Composite boiler Mission OC - 9,0 bar Manufacturer: Aalborg Industries Ltd. |
|
Generators |
3x Wärtsilä 4L40 - 4 stroke 4 cylinder 200 x 208 mm main diesel generatorsets each 645 kW Manufacturer: CSIC Electrical Machinery Science & Technology Co. |
|
Number of holds |
5 |
|
Hold capacity |
Bale: 47.848,5 m³ Grain: 49.031,6 m³ |
|
Number of tanks |
Ballast: 14 Lubricating oil: 9 Fuel oil: 8 Fresh water: 5 Sludge: 4 Diesel oil: 3 Chain: 2 Waste water: 1 Organic compound: 1 |
|
Tank capacities 100% |
Cargo Ballast: 10.782,2 m³ Diesel Oil: 193,1 m³ Freshwater: 387,8 m³ Fuel Oil: 1.909,2 m³ Lube Oil: 105,7 m³ Tank Ballast: 11.907,1 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 3,0 t Manufacture: Jiangyin Xingcheng Marine Machinery Factory 2x Pedestal-mounted electric driven provision crane - 1x SWL 7,0 t 1x SWL 3,0 t Manufacture: Wuxi Haitian Marine Equipment |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Manufacture: Iknow Machinery Co., Ltd. |
|
Crew size |
19 |
|
Manager |
Polsteam Shipping Co. Ltd. Limassol c/o Polish Steamship Company Pl. Rodla 8 Szczecin Poland |
|
Operator |
Polsteam |
|
Owner |
Polska Zegluga Morska PP (Polsteam) |
|
Registered owner |
Ares Ten Shipping Ltd. c/o Polska Zegluga Moorska PP Plac Rodia 8 Szczecin Poland |
|
Latest data adjustment |
18 October 2020 |
