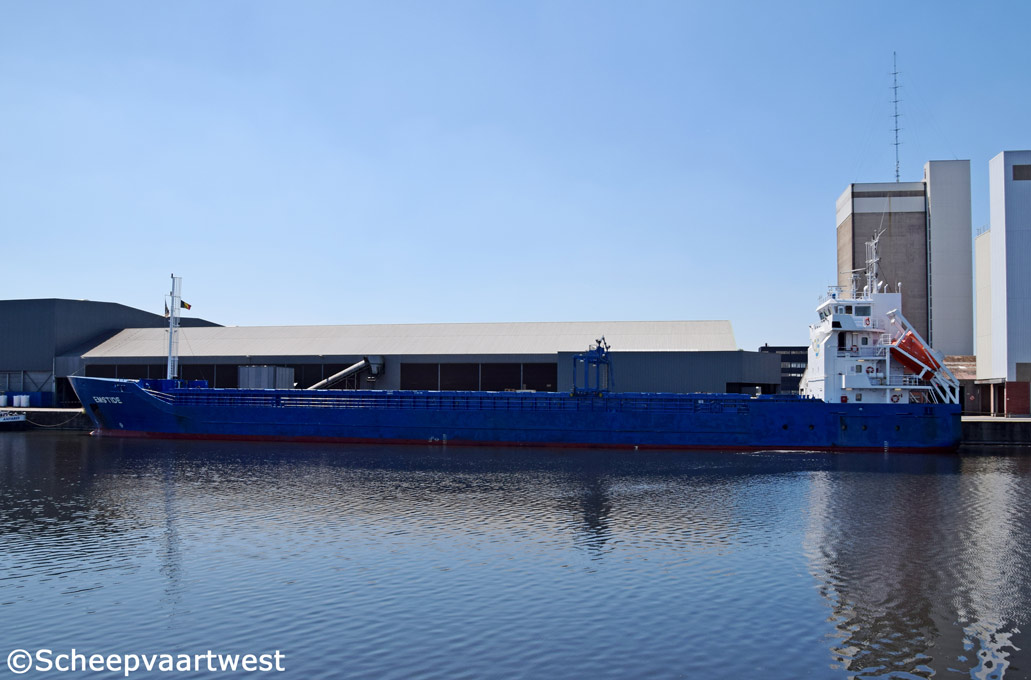

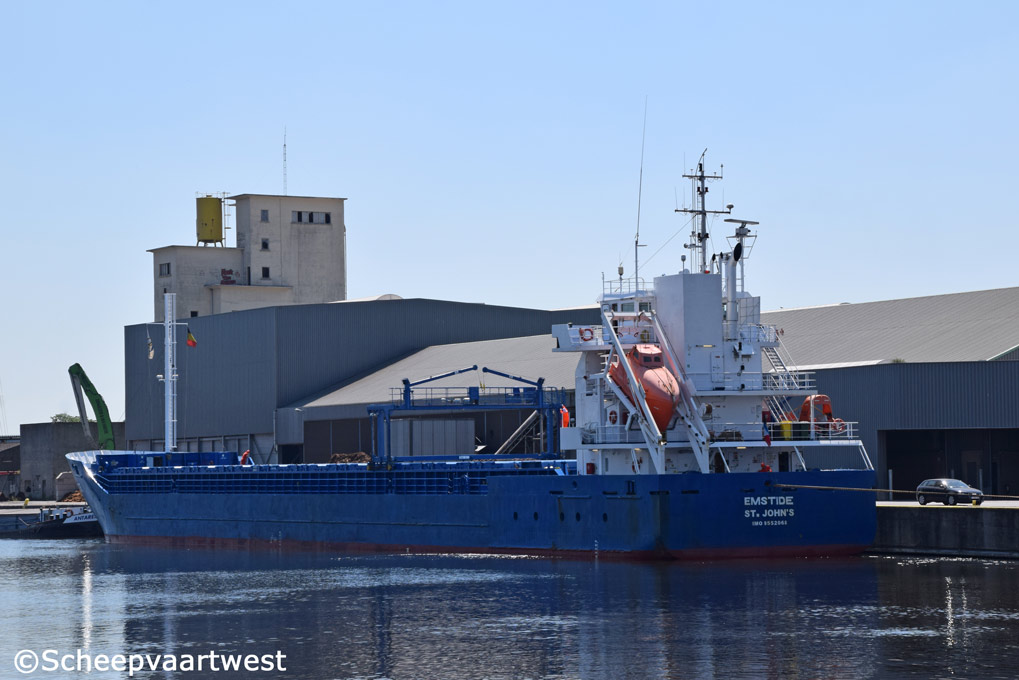

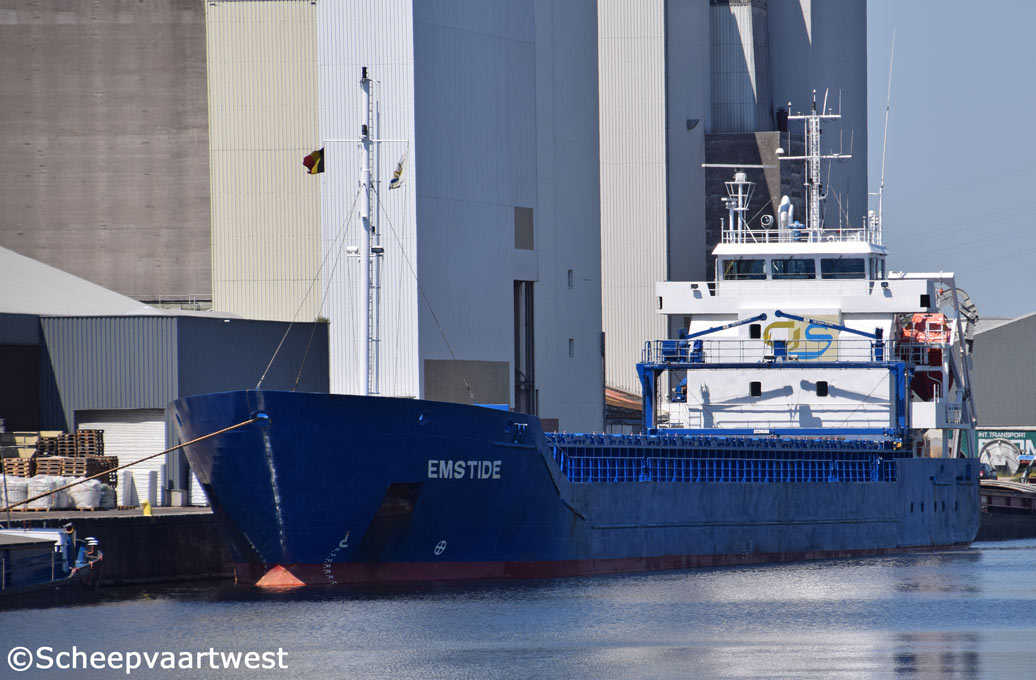

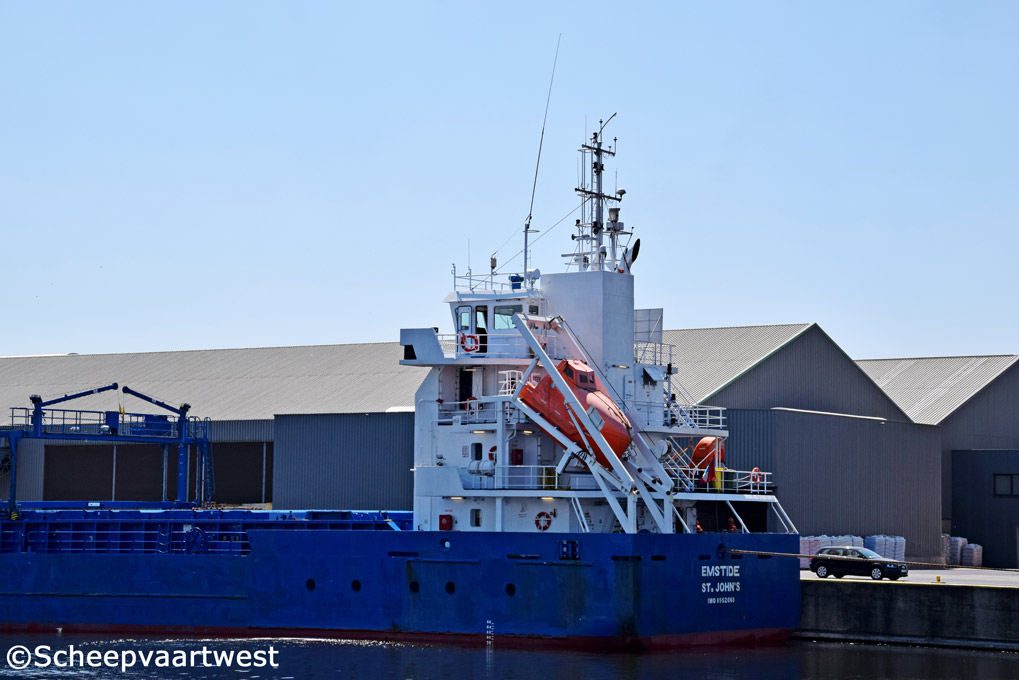

Brugge, Belgium 30 June 2015 |
 |
 |
 |
||
| Brugge 30/06/15 | Brugge 30/06/15 | Brugge 30/06/15 |
|
Name |
EMSTIDE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Gearless box single decker |
|
IMO-number |
9552068 |
|
Call sign |
V2FR5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
3.500 t |
|
DWT |
Summer: 5.234 t |
|
NT |
1.382 t |
|
Number of 20ft containers |
188 which 80 on deck |
|
Length |
99,48 m overall 93,26 m registered |
|
Breadth |
13,43 m extreme |
|
Draught |
Summer: 6,16 m |
|
Depth |
9,10 m moulded |
|
Speed |
12,0 knots Service: 10,0 knots |
|
Built |
2011 |
|
Keel laid |
21/12/2008 |
|
Launch date |
15/05/2011 |
|
Date of completion |
11/09/2011 |
|
Builder |
Western Marine Shipyard Ltd. Kolagaon No. 04 Shikolbaha, Patiya Chittagong Bangladesh |
|
Yard number |
928/06 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Movable bulkhead |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25C - 4 stroke 6 cylinder 255 x 400 mm combustion engine 2.000 kW at 750 rpm Year of manufacture: 2010 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 170 rpm |
|
Boilers |
1x Water heater, oil fired Year of manufacture: 2010 Manufacturer: Radijator Inzenjering d.o.o. Zivojina Lazica Solunca br. 6 36000 Kraljevo Republic of Serbia |
|
Electric installations |
2x Plants each 400 V - 210 kVA 1x Plant 400 V - 446 kVA 1x Plant 400 V - 81,5 kVA 1x Plant 24 V - 120 Ah 1x Plant 24 V - 140 Ah 2x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 446 kVA |
|
Generators |
2x Main diesel generatorsets each 210 kVA |
|
Emergency generator |
1x Diesel generatorset 81,5 kVA |
|
Batteries |
2x Batteries for emergency lighting each 200 Ah 1x Battery for UPS radio 140 Ah 1x Battery for automation 120 Ah |
|
Compressed air receivers |
2x Receivers each 250 litres - 33,0 bar |
|
Bow thruster |
1x Transverse thruster 280 kW, forward |
|
Number of holds |
1 Dimension: 61,80 x 11,20 x 9,60 m |
|
Hold capacity |
Grain/Bale: 234.629 ft³ - 6.646 m³ |
|
Number of hatches |
1 Dimension: 61,80 x 11,20 x 9,60 m |
|
Hatch cover |
Pontoon hatch covers |
|
Max. permitted loads |
Tank top: 15,0 t/m² Hatch cover: 1,75 t/m² |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m |
|
Crew |
8 |
|
Crew size |
12 |
|
Manager |
Grona Shipping GmbH & Co. KG Dockerhaus 2. OG Deverhafen 26871 Papenburg Federal Republic of Germany |
|
Registered owner |
MS "GRONA LOPPERSUM" GmbH & Co. KG Dockerhaus 2. OG Deverhafen 26871 Papenburg Federal Republic of Germany |
|
Renamed |
2016 Estemar G.D. Luxembourg, Luxembourg City - Call sign: LXES Owner: Vertom-Bojen Schiffahrts MS "Silke" GmbH & Co. Manager: Vertom Bereederungs GmbH & Co. KG |
|
Latest data adjustment |
14 April 2020 |
