Westerschelde 09 June 2015 |
|
Name |

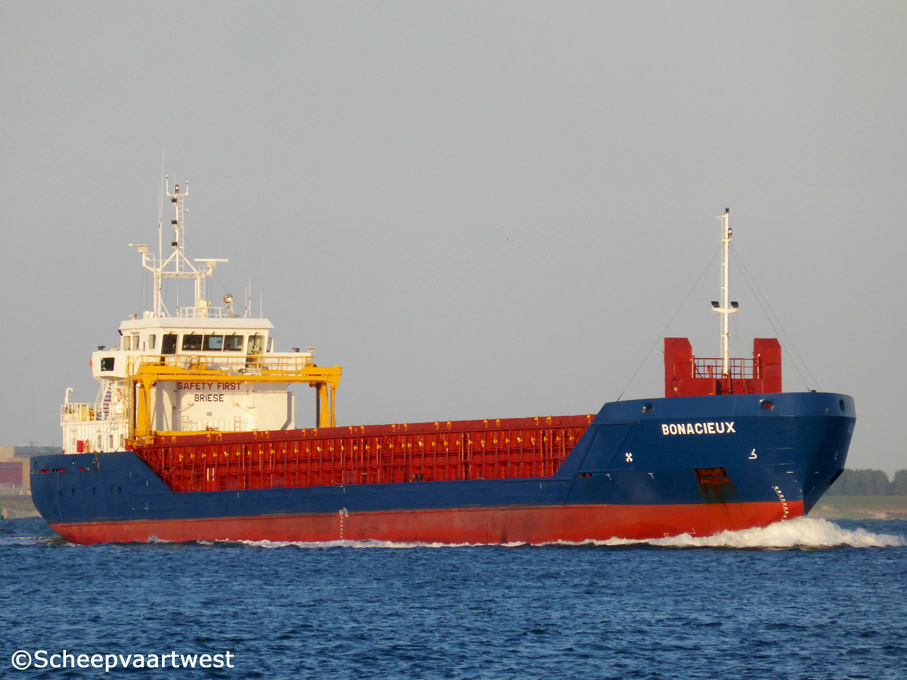

BONACIEUX |
|
Previous names |
2009 - 02.2010 Leybucht |
|
Type |
Multi-purpose dry cargo ship / Container vessel Equipped for carriage of containers, timber fitted, strengthened for heavy cargo, equipped for carriage of dangerous goods |
|
IMO-number |
9505297 |
|
Call sign |
ZDJR2 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
2.415 t |
|
DWT |
Summer: 3.171,5 t |
|
NT |
1.361 t |
|
Number of 20ft containers |
In hold: 102 On deck: 36 Total: 138 |
|
Number of 40ft containers |
In hold: 48 + 6 TEU On deck: 16 + 4 TEU Total: 64 + 10 TEU |
|
Length |
85,98 m overall 82,42 m between perpendiculars |
|
Breadth |
12,60 m extreme |
|
Draught |
5,30 m |
|
Height above keel |
24,00 m |
|
Depth |
6,70 m |
|
Speed |
12,8 knots at ballast |
|
Built |
2009 |
|
Keel laid |
29.01.2008 |
|
Launch date |
23.06.2009 |
|
Date of completion |
19.02.2009 |
|
Builder |
Lisemco Lilama Shipyard HaiPhong Equipment Manufacture & Shipbuilding Co. Ltd. |
|
Yard number |
TD03 |
|
Hull material |
Steel |
|
Movable bulkhead |
2x Movable grain bulkheads with 7 locations operated by vessels gantry crane |
|
Main engine |
1x Mak 6M25 - 4 stroke 6 cylinder diesel engine 1.980 kW at 750 rpm |
|
Propellers |
1x Four bladed controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x 280 kW |
|
Generators |
2x Diesel generatorset each 120 kW |
|
Emergency generator |
1x Diesel generatorset 90 kW |
|
Bow thruster |
1x Fixed 200 kW at 1.470 rpm |
|
Tweendeck |
Full tweendeck hatch pontoons are of resting type |
|
Number of holds |
1 Dimensions: 59,10 x 10,20 x 8,40 m |
|
Hold capacity |
Grain / Bale: 4.971 m³ / 175.550 ft³ |
|
Hold ventilation |
6x Times / hour |
|
Hold equipped with |
Removable grain bulkheads (thickness 0,40 m) Tween deck (complete hold area) on 4,40 m and 5,10 m above tanktop (thickness 0,40 m) Forward 3 hatchcovers equipped with sprinkler |
|
Number of hatches |
1 Dimensions: 59,10 x 10,20 m |
|
Hatch cover type |
10x Panels, lift away covers of pontoon type / electric hydraulic operated by gantry crane |
|
Max. permitted loads |
Tank top: 14,0 t/m² Tweendeck: 2,5 t/m² On deck: 1,6 t/m² |
|
Tank capacities |
HFO: 225 m³ MGO: 54 m³ Ballast: 1.300 m³ Freshwater: 33 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 32 mm |
|
Lifting equipment |
1x Gantry crane - SWL 11,0 t |
|
Accommodation |
7 Persons, 6 cabins |
|
Manager |
Briese Shipping B.V. Torenstraat 14 The Netherlands |
|
Registered owner |
Bonacieux Shipping Co. Ltd. |
|
Latest data adjustment |
14 July 2015 |
