Antwerpen 25 May 2015 |
|
Name |

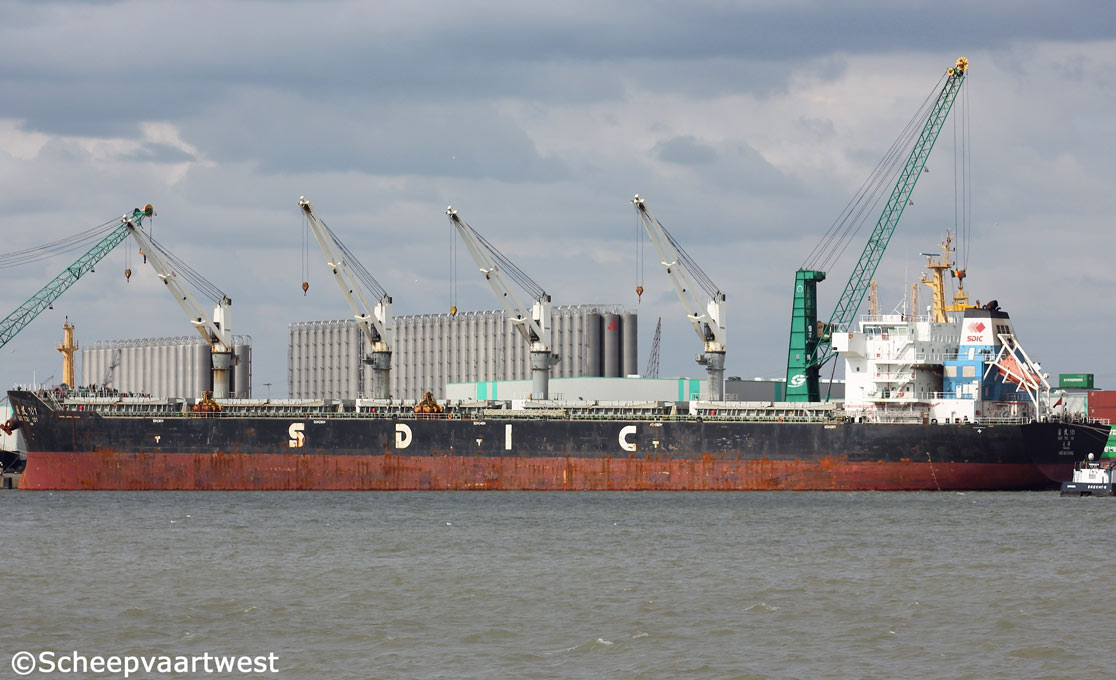

GUO TOU 101 |
|
Type |
Bulk carrier - Strengthened for heavy cargoes |
|
IMO-number |
9533062 |
|
Call sign |
BFAP2 |
|
Flag |
China |
|
Port of registry |
Tianjin |
|
GT |
32.899 t |
|
DWT |
56.936 t |
|
NT |
19.142 t |
|
Length |
189,99 m overall 185,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
11,30 m |
|
Forecastle |
13,09 m |
|
Bridge |
20,06 m |
|
Freeboard |
5.224 mm |
|
Depth |
18,00 m moulded |
|
Speed |
14,2 knots |
|
Built |
2010 |
|
Date of completion |
29.10.2010 |
|
Builder |
Shanghai Chengxi Shipyard China |
|
Yard number |
S1173 |
|
Hull material |
Steel |
|
Bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/HHI 6S50MC-C7 - 6 cylinder 500 x 2.000 mm diesel engine 9.480 kW at 127,0 rpm Built: 17.05.2010 Builder: Hudong Heavy Machinery Co., Ltd., Shanghai - China |
|
Propellers |
1 |
|
Boilers |
1x Boiler 9,0 bar Built: 01.06.2010 Builder: Saacke Qingdao Marine Boiler Co., Ltd. Qingdao, China |
|
Generators |
3x HFC6 502-84K diesel generatorsets each 600 kVA - 450 Volt |
|
Number of holds |
5 |
|
Hold capacity |
Grain Hold 1: 13.009,86 m³ Hold 2: 15.333,25 m³ Hold 3: 14.553,08 m³ Hold 4: 15.333,27 m³ Hold 5: 13.404,64 m³ Total: 71.634,10 m³ |
|
Number of hatches |
5 Dimensions: 1x 18,86 x 18,26 m 4x 21,32 x 18,26 m |
|
Ballast capacity |
30.886 m³ |
|
Lifting equipment |
1x Provision crane - SWL 4,0 t 1x E/R overhead crane - SWL 3,0 t |
|
Cargo gear |
3x Cranes - SWL 36,0 t each |
|
Operator |
SDIC - Shipping Development Co.,Ltd. |
|
Owner |
ICBC Financial Leasing Co.,Ltd. |
|
Latest data adjustment |
24 July 2015 |
