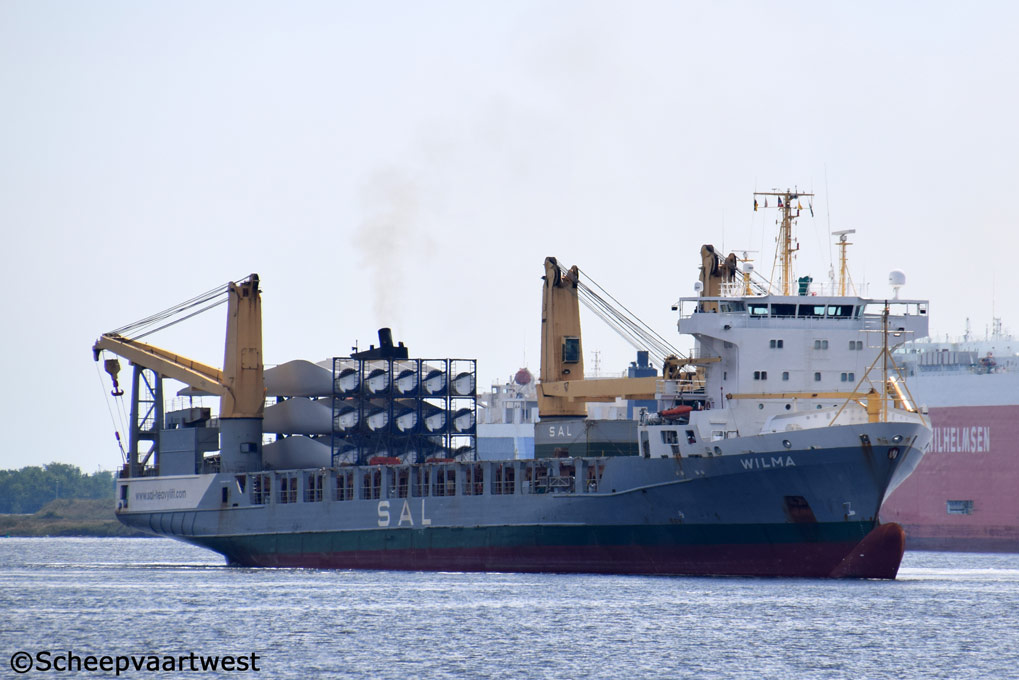

Wilma 02

Zeebrugge 09 August 2015

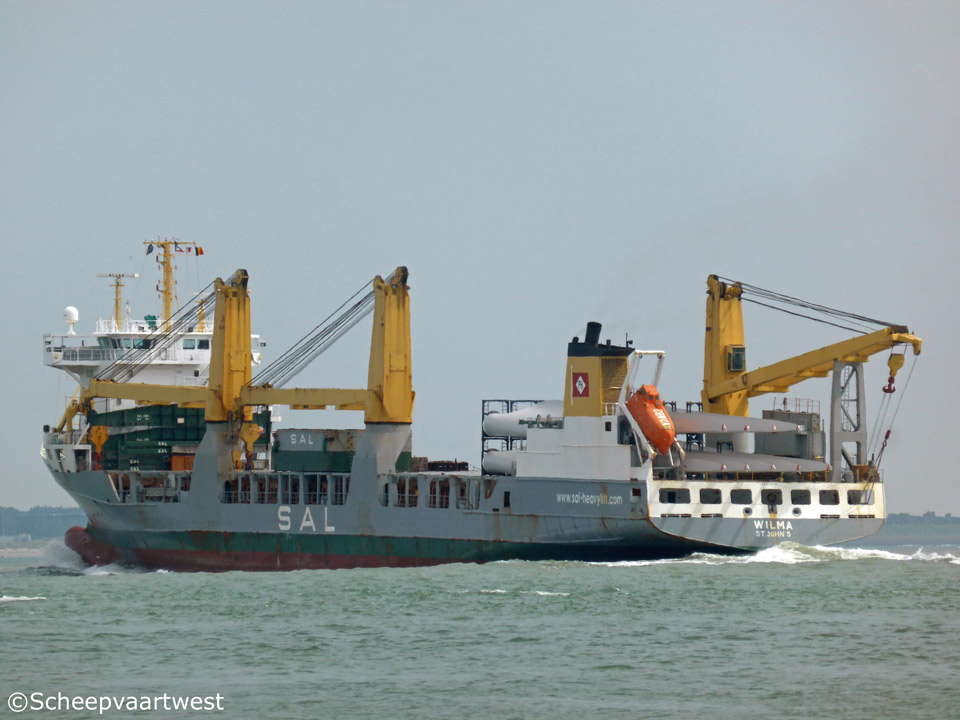

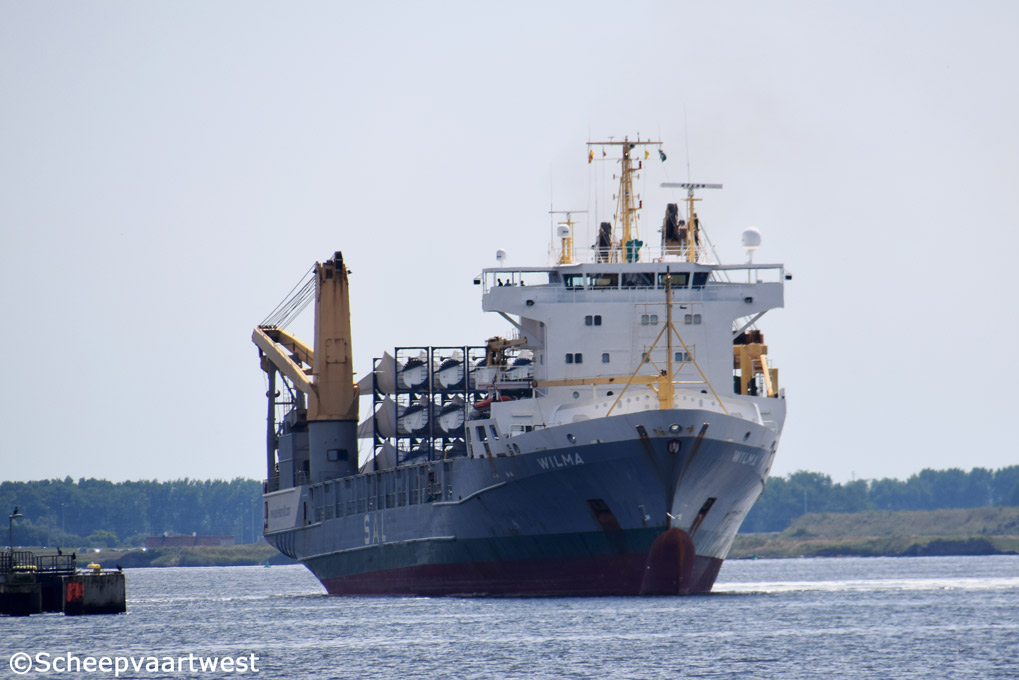

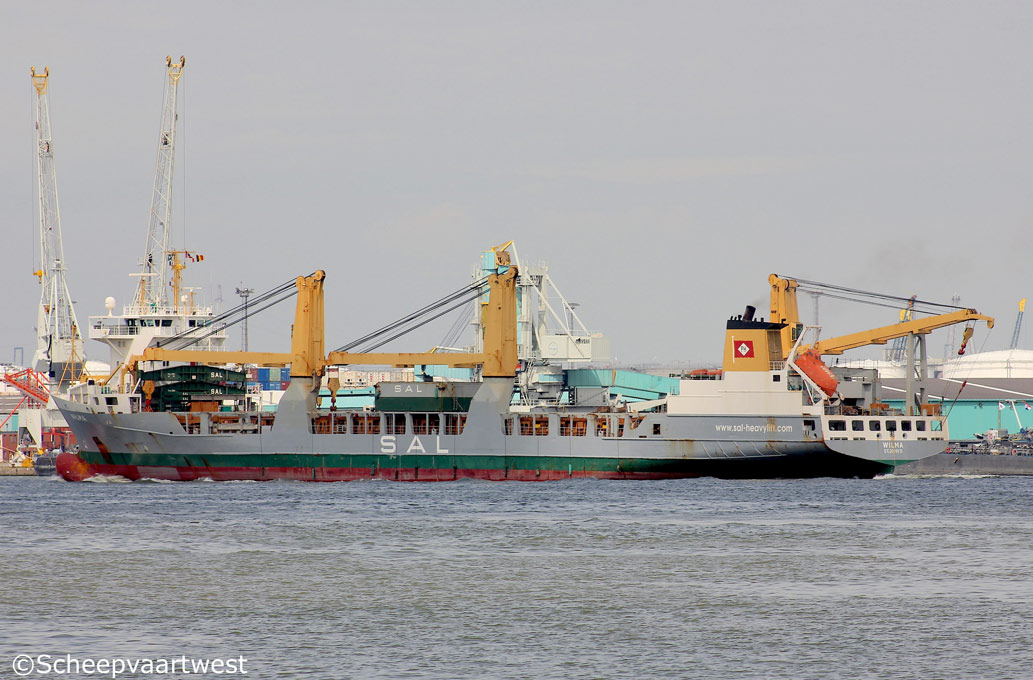

Wilma 03   Wilma 04   Wilma 05
Zeebrugge 09/08/15 Antwerpen 11/08/15 Westerschelde 10/08/15



Name

WILMA

Type

General cargo ship - Heavy lift ship - Strengthened for heavy cargo

IMO-number

9147679

Call sign

V2AB2

Flag

Antigua & Barbuda

Port of registry

St. John's

Previous flags

1997 - 1997 Germany

GT

8.388 t

Suez: 8.561,34 t

DWT

Summer: 9.544 t

NT

4.178 t

Suez: 6.903,77 t

Panama: 7.628 t

Displacement

Summer: 14.880 t

Number of 20ft containers

813

Reefer capacity

50

Length

151,63 m overall

142,10 m between perpendiculars

143,32 m registered

Breadth

20,66 m extreme

20,40 m moulded

Draught

Summer: 7,83 m

Forecastle

21,78 m

Poop

23,10 m

Freeboard

2.679 mm

Depth

10,50 m moulded

Speed

20,0 knots

Built

1997

Keel laid

26.01.1996

Launch date

19.07.1997

Date of completion

18.09.1997

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1099

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

2

Continuous decks

2

Main engine

1x MAN B&W 9L48/60 - 4 stroke single acting 9 cylinder 480 x 600 mm diesel engine - 9.450 kW / 12.852 hp at 500 rpm

Reduced power: 4.995 kW

Year of manufacture: 1997

Manufacturer: MAN B&W Diesel GmbH
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 140 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 35,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 157,5 m²

Year of manufacture: 1998

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

3x Plant each 380/220 V - 380 kVA

1x Plant 380 V - 1.250 kVA

1x Plant 380 V - 430 kVA

Shaft generator

1x 1.250 kVA

Generators

3x Volvo Penta TAMD 163 A diesel generatorsets each 380 kVA

Emergency generator

1x Volvo Penta TAMD 163 A diesel generator 430 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 475 litres - 11,0 bar

Bow thruster

1x Fixed pitch propeller LIPS 750 kW / 1.020 hp, forward

Number of holds

1

Dimensions: 82,90 x 15,80 x 11,17 m

Hold capacity

Grain: 14.007 m³

Bales: 13.614 m³

Number of hatches

1

Hatch covers

MacGregor hydraulic operated combined folding type and lift and roll type

Free deck space

2.120 m²

Tank capacities

Water ballast: 3.979,10 m³

Gas oil: 214,22 m³

Heavy fuel oil: 1.083,35 m³

Fresh water: 123,99 m³

Anchor equipment

Length: 522,50 m

Diameter: 50 mm

Lifting equipment

1x Crane - SWL 10,0 t

Cargo gear

2x Cranes - SWL 275 t each (in combination 550 t) each

1x Crane - SWL 150 t

Auxiliary hoist:

2x SWL 32 t

Crew

20

Manager

SAL Heavy Lift GmbH (member of the “K” Line Group)
Brooktorkai 20
20457 Hamburg
Federal Republic of Germany

Previous managers

1997 - 2010 Lühe Engineering GmbH

2010 - 2011 SAL Heavy Lift Engineering GmbH

Operator

SAL - Schiffahrtskontor Altes Land

Previous owners

1997 - 1997 Hans Heinrich und Claus Heinrich

1997 - 2007 MS "WILMA" Hans und Claus Heinrich KG

2007 - 2011 HLL Heavy Lift + Load "SEA TIGER" GmbH & Co. KG

2011 - 2012 SAL Schiffahrtskontor Altes Land GmbH & Co. KG

Registered owner

SAL Heavy Lift GmbH
Brooktorkai 20
20457 Hamburg
Federal Republic of Germany

Latest data adjustment

02 September 2015
