Antwerpen 03 September 2014 |
|
Name |

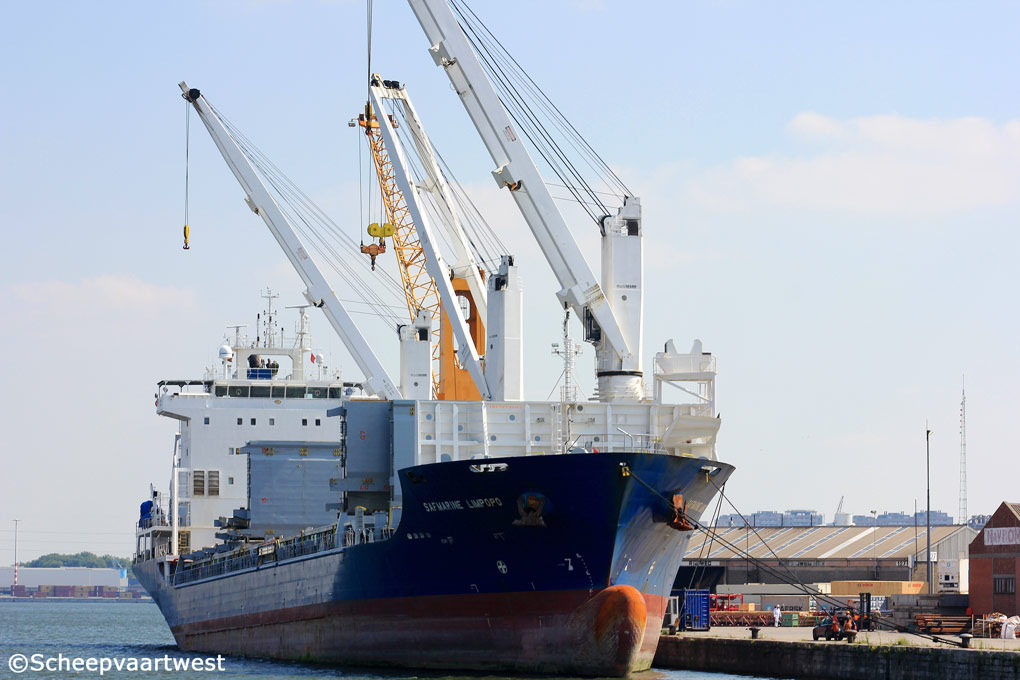

SAFMARINE LIMPOPO |
|
Previous names |
2010 built as: Senta Friederich |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9500065 |
|
Call sign |
4RBK |
|
Flag |
Sri Lanka |
|
Port of registry |
Colomo |
|
GT |
9.772 t |
|
DWT |
Summer: 12.337 t |
|
NT |
4.384 t |
|
Number of 20ft containers |
712 |
|
Length |
139,99 m overall 133,72 m registered |
|
Breadth |
21,50 m registered |
|
Draught |
8,20 m |
|
Forecastle |
10,35 m |
|
Poop |
12,90 m |
|
Depth |
11,40 m moulded |
|
Speed |
16,4 knots |
|
Built |
2010 |
|
Keel laid |
02.07.2008 |
|
Date of completion |
16.03.2010 |
|
Builder |
Tongfang Jiangxin Shipbuilding Co., Ltd. |
|
Yard number |
JX602 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W/Hyundai 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW / 10.690 hp at 129,0 rpm Year of manufacture: 2008 Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division |
|
Propellers |
1x Solid propeller (keyless) - aft at 129,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating surface: 22,6 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating surface: 260,0 m² |
|
Electric installations |
3x Plants each 450 V - 1.000 kVA 1x Plant 450 V - 122,5 kVA 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 300 Ah 1x Plant 24 V - 400 Ah |
|
Generators |
3x Main diesel generatorsets each 1.000 kVA / 800 kW |
|
Emergency generator |
1x Diesel generatorset 122,5 kVA |
|
Batteries |
1x Battery for UPS radio 400 Ah 2x Batteries for start emergency engine each 300 Ah 2x Batteries for automation each 200 Ah |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 33,0 bar 1x Receiver 200 litres - 33,0 bar 1x Receiver 40 litres - 11,0 bar 1x Receiver 1.000 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 500 kW, forward |
|
Cargo hold capacity |
Grain: 15.900 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m |
|
Cargo gear |
1x Crane - SWL 45,0 t 2x Cranes - SWL 80,0 t each |
|
Crew size |
25 |
|
Manager |
Friederich Reederei |
|
Operator |
Safmarine Containers Lines NV |
|
Owner |
Eugen Friedrich Befrachtung |
|
Renamed |
03.2015 WAF Motion - Ski Lanka, Colomo - Call sign: 4RBK |
|
Latest data adjustment |
06 September 2015 |
