E.R. Bristol 05

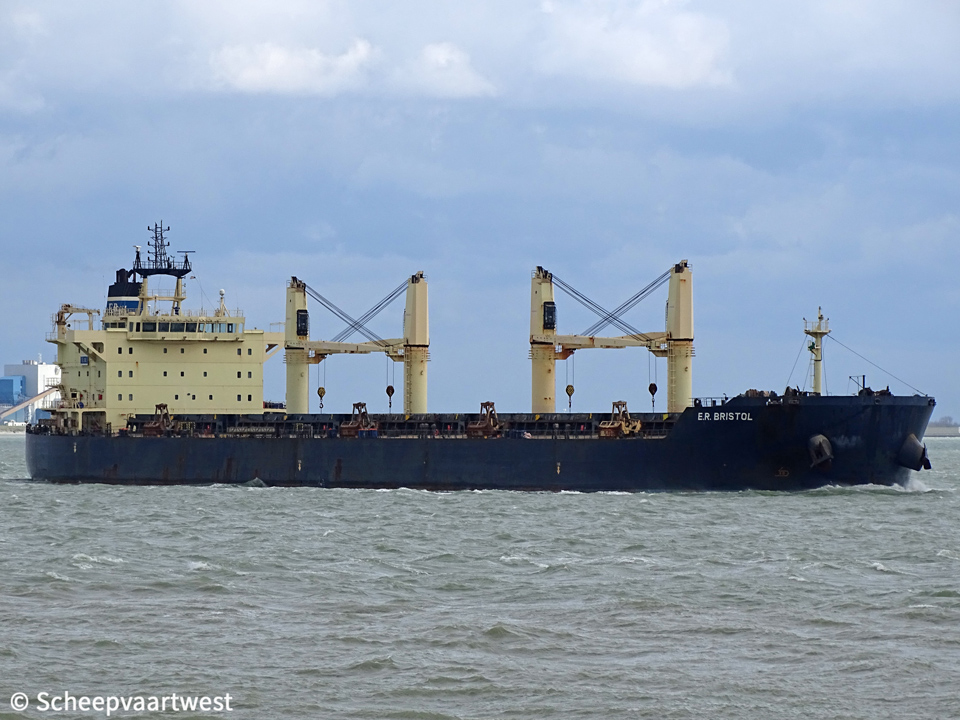

Westerschelde 20 February 2020



E.R. Bristol 07   E.R. Bristol 06   E.R. Bristol 02   E.R. Bristol 03   E.R. Bristol 01

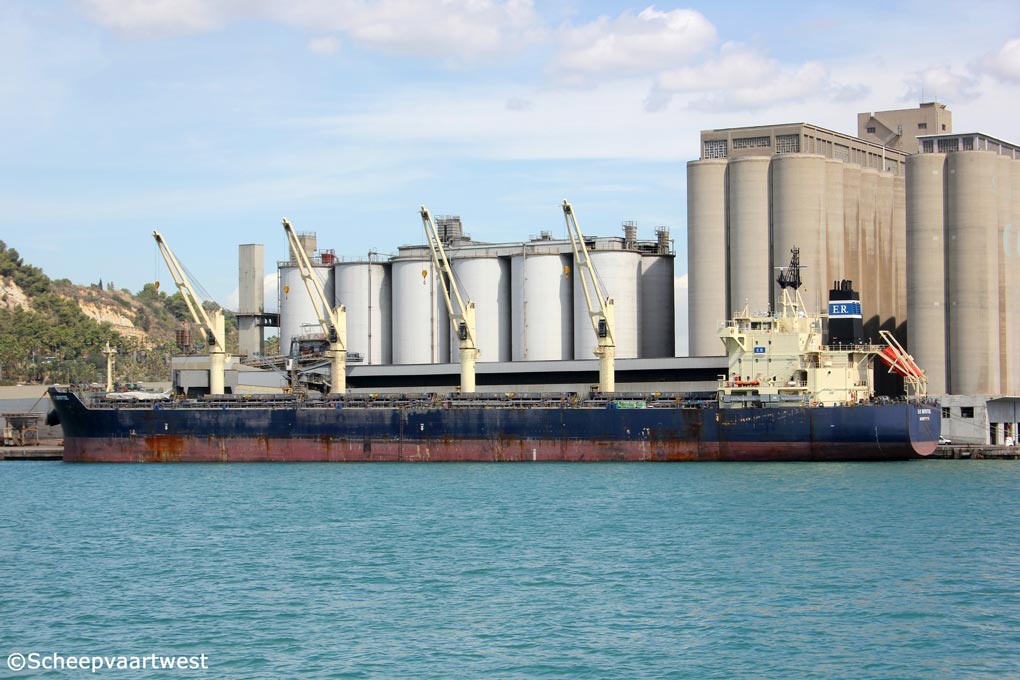

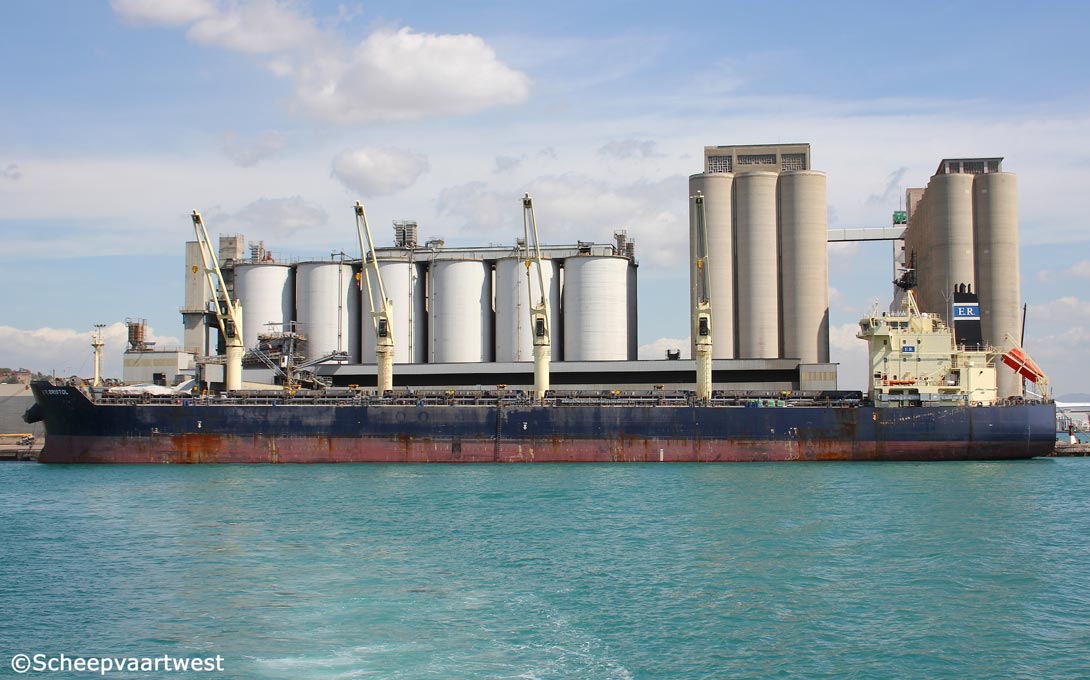

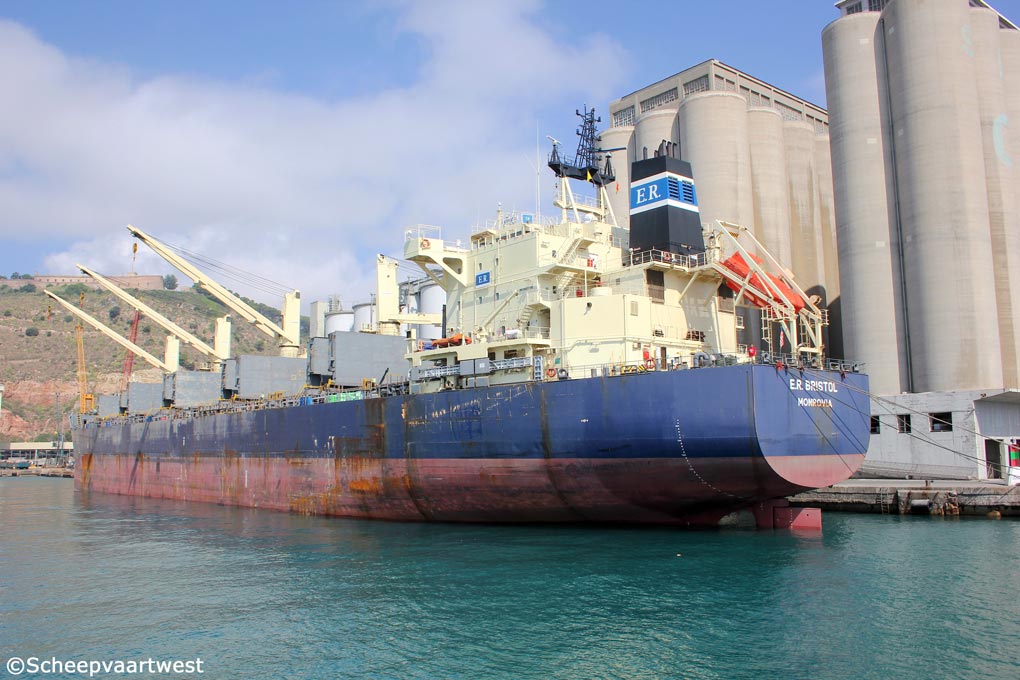

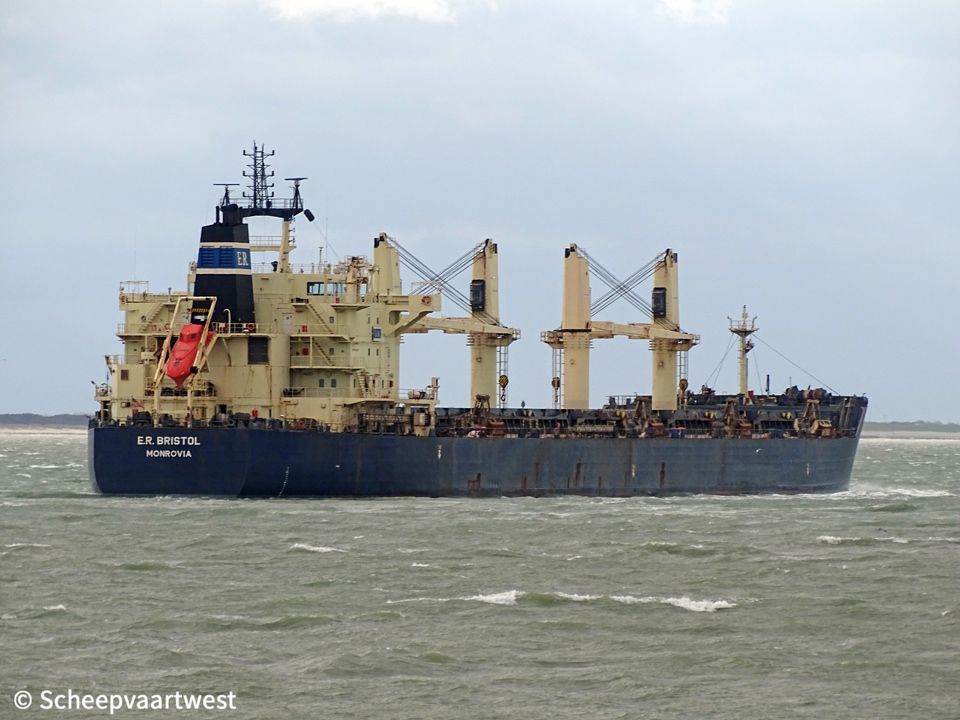

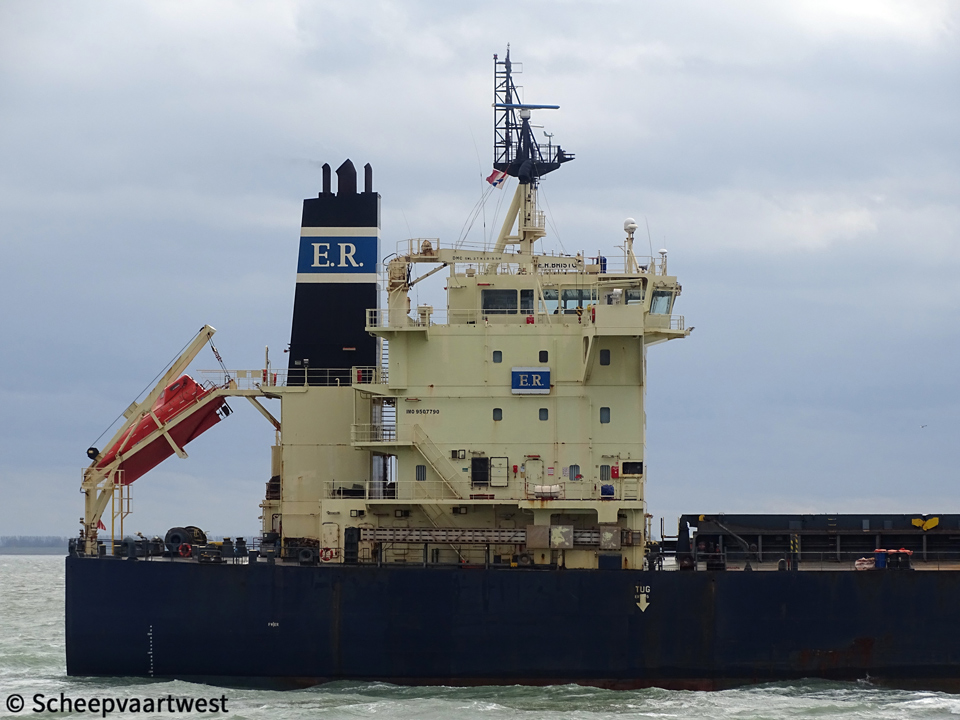

Westerschelde 20/02/20 Westerschelde 20/02/20 Barcelona, Spain 01/09/15  Barcelona, Spain 01/09/15   Barcelona, Spain 30/08/15



Name

E.R. BRISTOL

Type

Grab fitted bulk carrier - Supramax Class

IMO-number

9507790

Call sign

A8XQ6

Flag

Liberia

Port of registry

Monrovia

GT

32.672 t

DWT

55.659 t

NT

18.529 t

Length

187,80 m overall

182,50 m between perpendiculars

Breadth

32,29 m extreme

Draught

12,85 m

Depth

18,30 m

Speed

14,5 knots

Built

2011

Keel laid

14/04/2011

Launch date

10/06/2011

Date of completion

21/07/2011

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

6126

Hull material

Steel

Main engine

1x Hyundai/MAN-B&W 6S50 MC-C7 - 6 cylinder combustion engine 8.820 kW

Propellers

1

Boilers

1x Auxiliary boiler, composite type MC3201p12

Builder: Kangrim Heavy Industries Co., Ltd.

Generators

3x Himsen 6H17/28 diesel generatorsets

Builder: Hyundai Engine & Machinery Co. Ltd.

Emergency generator

1x Cummins diesel generatorset

Cargo hold capacity

Grain: 70.000 m³

Tank capacities

Ballast: 29.735,6 m³

Anchor equipment

Length: 330,00 m

Diameter: 76 mm

Cargo gear

4x Deck cranes - SWL 30,0 t with grabs

Manager

ZEABORN Ship Management GmbH & Cie. KG

Ludwig-Erhard-Strasse 22

20459 Hamburg

Germany

Previous manager

E.R. Schiffahrt GmbH & Cie. KG, 20354 Hamburg - Germany

Registered owner

MS "E.R. BRISTOL" Schiffsbeteiligungsgesellschaft mbH & Co. KG.

Latest data adjustment

16 July 2020
