Westerschelde 01 November 2015 |
 |
 |
 |
||
| Westerschelde 01/11/15 | Vlissingen 17/11/15 | Vlissingen 10/01/16 | ||
|
Name |

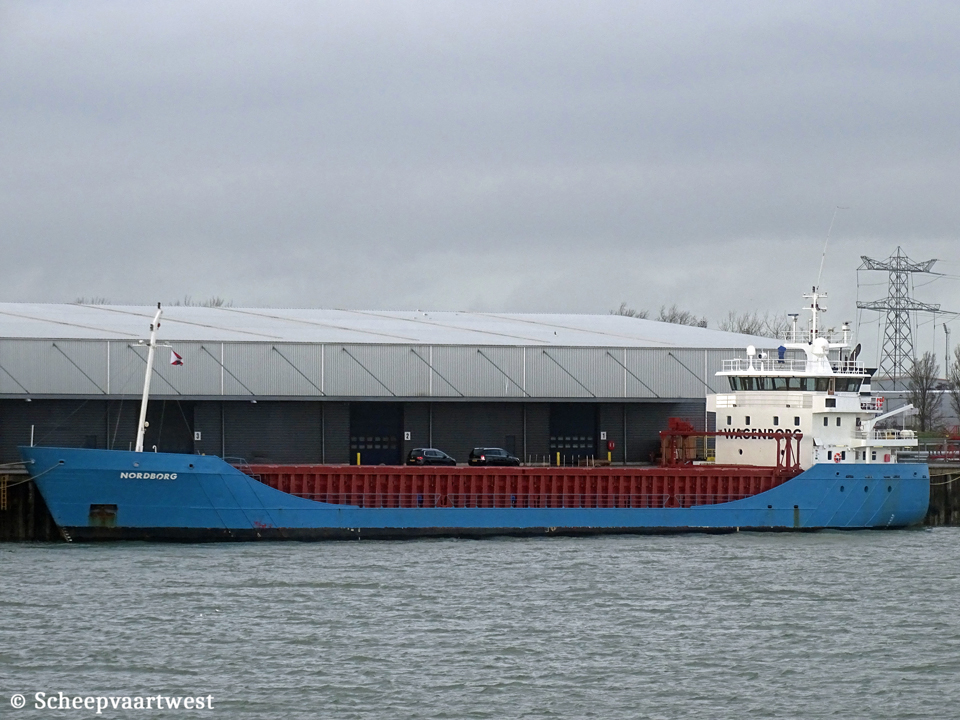

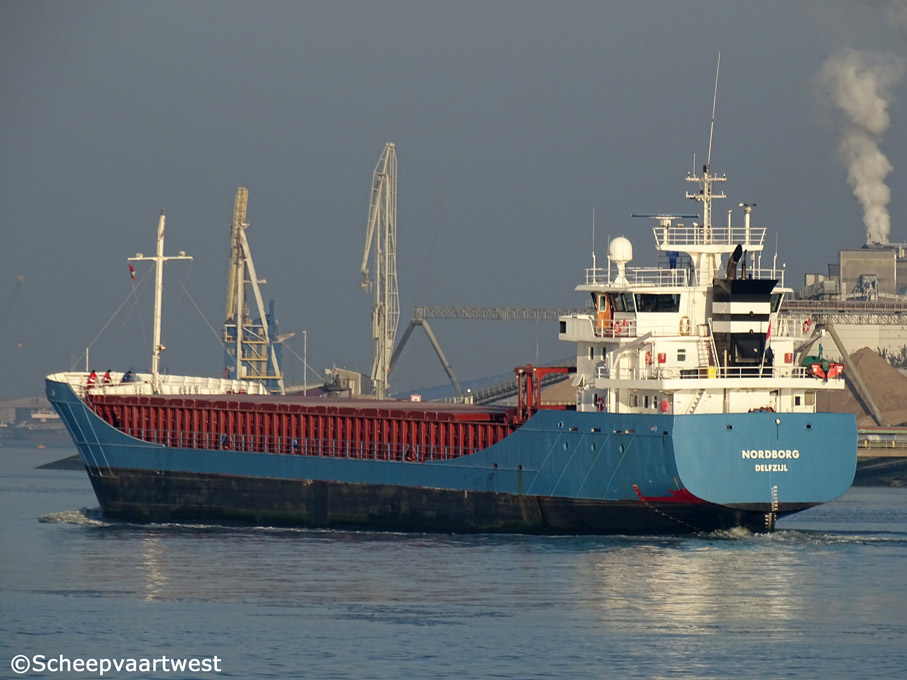

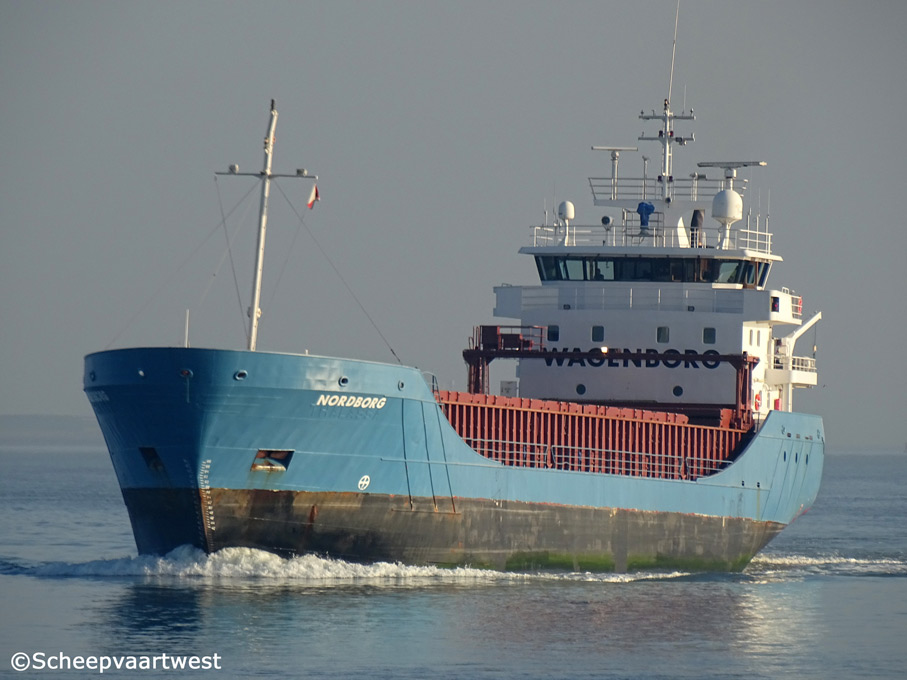

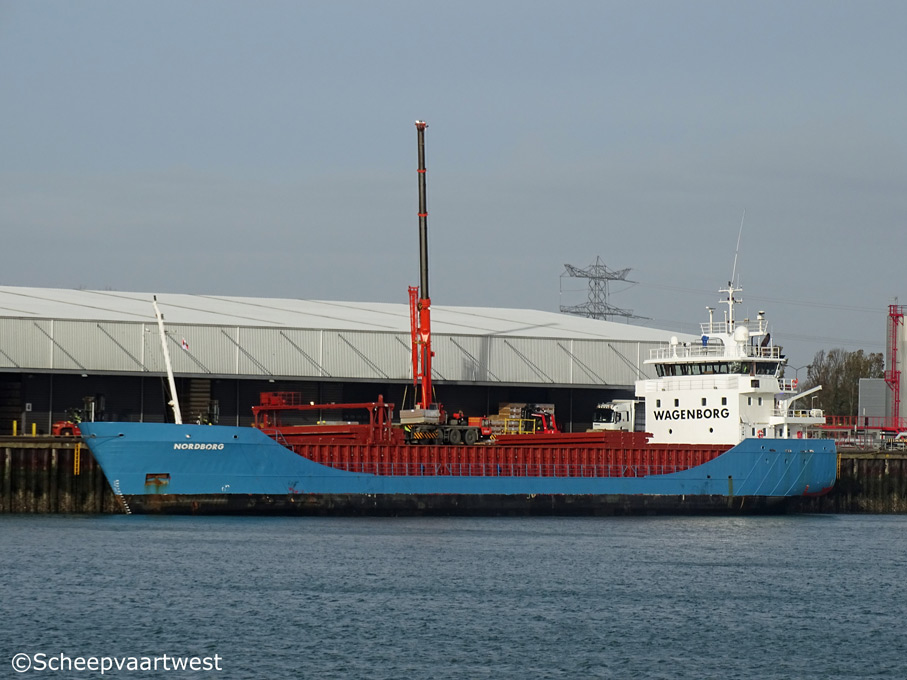

NORDBORG |
|
Previous names |
1999 - 01.2006 Thalassa 01/2006 - 12/2006 Liamare 12/2006 - 01/2015 Nordgard |
|
Type |
Multi-purpose general cargo ship - Heavycargo - Container ship Single decker - Open hatch - fully box and double skinned |
|
IMO-number |
9148180 |
|
Call sign |
PIBU |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
02/1999 - 01/2006 The Netherlands, Harlingen - Call sign: PIBU 01/2006 - 12/2006 The Netherlands, Maartensdijk - Call sign: PIBU 12/2006 - 11/2014 The Netherlands, Rotterdam - Call sign: PIBU |
|
GT |
2.780 t |
|
DWT |
Summer: 3.714 t |
|
NT |
1.587 t |
|
Number of 20ft containers |
208 |
|
Length |
89,25 m overall 83,69 m between perpendiculars |
|
Breadth |
13,30 m moulded |
|
Draught |
5,65 m |
|
Air draft |
29,00 m in ballast |
|
Freeboard |
1.195 mm |
|
Depth |
7,15 m moulded |
|
Speed |
Max.: 14,0 knots Service: 11,5 knots |
|
Built |
1999 |
|
Launch date |
19/12/1998 |
|
Date of completion |
06/02/1999 |
|
Builder |
Scheepswerf Peters B.V. Kampen The Netherlands |
|
Yard number |
454 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.445 hp at 750 rpm Built: 1998 Manufacturer: Maschinenbau Kiel A.G., Kiel - German Federal Republic |
|
Propellers |
1x Controllable pitch propeller - aft at 750 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 530 kVA - 424 kW |
|
Generators |
1x Main diesel generatorset 155 kVA - 124 kW - 182 hp |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW - 95 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1x Fully box 62,40 x 11,60 x 8,62 m |
|
Hold capacity |
Grain & bale: 5.805 m³ / 201.063 ft³ |
|
Hold ventilation |
6x Air-changes per hour basis empty hold Vessel is not fitted with dehumidifier system |
|
Number of hatches |
1 62,00 x 11,16 m |
|
Tank capacities |
MGO: 295 m³ Water ballast: 1.600 m³ Fresh Water: 40 m³ |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previous managers |
02/1999 - 05/2001 Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V., Delfzijl - The Netherlands 05/2001 - 01/2006 Thalassa B.V., Harlingen - The Netherlands 01/2006 - 12/2006 Flinter Management B.V., Barendrecht - The Netherlands 12/2006 - 11/2014 Bore Shipowners B.V., Rotterdam - The Netherlands |
|
Registered owner |
Scheepvaartonderneming Nordborg B.V. Delfzijl The Netherlands |
|
Previous names & owners |
02/1999 - 05/2001 Thalassa - G. Switynk, Harlingen - The Netherlands 05/2001 - 01/2006 Thalassa - Thalassa B.V., Harlingen - The Netherlands 01/2006 - 12/2006 Liamare - Scheepvaartbedrijf A.J. Kok, Maartensdijk - The Netherlands 12/2006 - 11/2014 Nordgard - Bore Shipowners B.V., Rotterdam - The Netherlands |
|
Latest data adjustment |
07 July 2022 |
