Westerschelde 13 November 2015 |
|
Name |

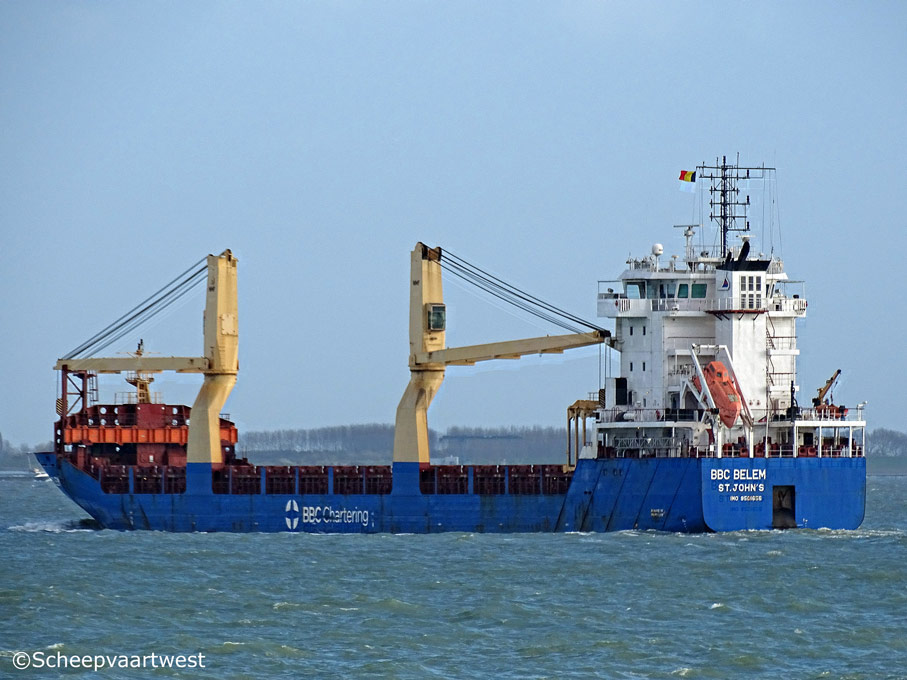

BBC BELEM |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Timber deck cargo - Grain cargo Tweendecker |
|
IMO-number |
9501655 |
|
Call sign |
V2FN4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
6.310 t |
|
DWT |
Summer: 8.129,3 t |
|
NT |
2.841 |
|
Number of 20ft containers |
In hold: 253 On hatches: 260 Total: 459 |
|
Container capacity 14t |
355 |
|
Length |
128,45 m overall 123,02 m between perpendiculars |
|
Breadth |
16,71 m extreme 16,51 m moulded |
|
Draught |
Max.: 7,00 m |
|
Height above keel |
35,60 m |
|
Depth |
10,00 m to main deck |
|
Speed |
Max.: 14,0 knots |
|
Built |
2012 |
|
Keel laid |
27.08.2008 |
|
Launch date |
11.09.2010 |
|
Date of completion |
12.01.2012 |
|
Builder |
Dalian Fishing Vessel Shipbuilding |
|
Yard number |
2007-1201 |
|
Hull material |
Steel |
|
Movable bulkhead |
Hold equipped with 2 movable grain bulkheads (7 positions) |
|
Main engine |
1x MaK 6M32C - 6 cylinder diesel engine 3.000 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated type EXV 6-20-30-57 1x Thermal oil heater, oil fired type V4-0-TFO-006 |
|
Shaft generator |
830 kVA |
|
Generators |
2x MAN D2876 LE301 diesel generatorsets each 405 kVA |
|
Emergency generator |
1x MAN D0836 LE201 diesel generatorset 250 kVA |
|
Bow thruster |
1x Fixed pitch 409 kW at 1.475 rpm |
|
Number of holds |
1 Dimensions: 87.0 x 13.5 x 10,55 m |
|
Hold capacity |
11.500 m³ / 406.365 ft³ |
|
Full tweendeck |
Height 6,68 m (length tweendeck 78,00 m) (measured from tank top to top of tweendeck) Height 5,60 m (length tweendeck 87,00 m) (measured from tank top to top of tweendeck) |
|
Hatch cover type |
Forward 3 hatch covers equipped with sprinkler for dangerous cargo |
|
Floor space under deck |
2.249 m² / 24.211 ft² |
|
Floor space on deck |
1.174 m² / 12.642 ft² |
|
Max. permitted loads |
Tank top: 15 t/m and 20 t/m² Hatch covers: 2,0 t/m² Tweendeck: 3,5 t/m² |
|
Tank capacities |
Ballast: 4.170 m³ HFO: 400 m³ MDO: 55 m³ Lub oil: 25 m² Fresh water: 50 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 46 mm |
|
Lifting equipment |
1x Gantry crane - SWL 21 t for opening cargo hold and handling of tweendeck |
|
Cargo gear |
2x NMF DK II 80014/35030 cranes - SWL 80 t Outreach 14 m SWL 55 t Outreach 21 m SWL 35 t Outreach 30 m SWL 160 ton in dual operation |
|
Crew |
10 |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Operator |
BBC Chartering |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "BENTUMERSIEL" |
|
Latest data adjustment |
05 December 2015 |
