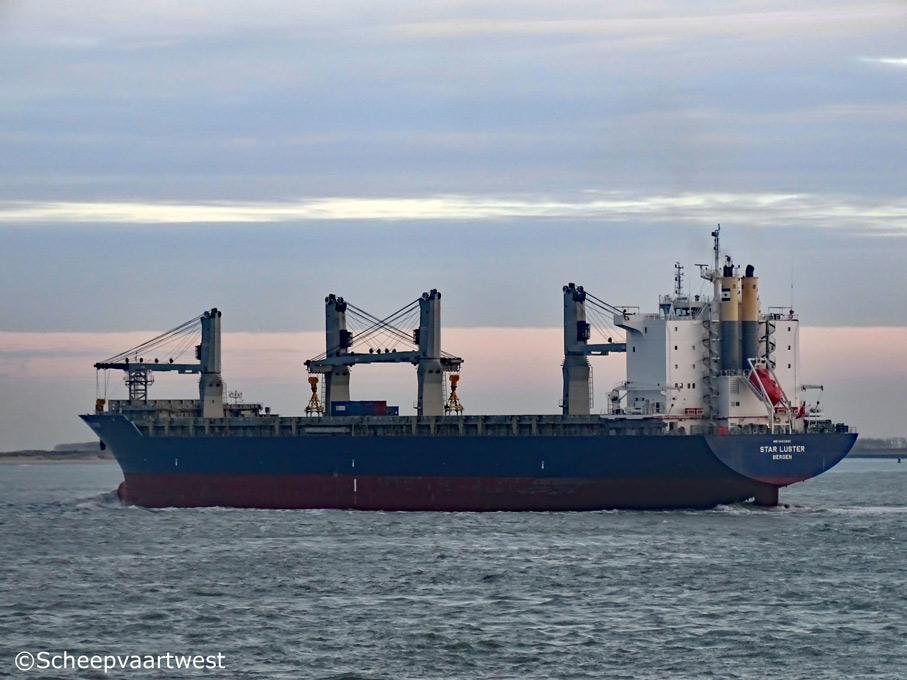

Westerschelde 30 September 2019 |
 |
 |
|

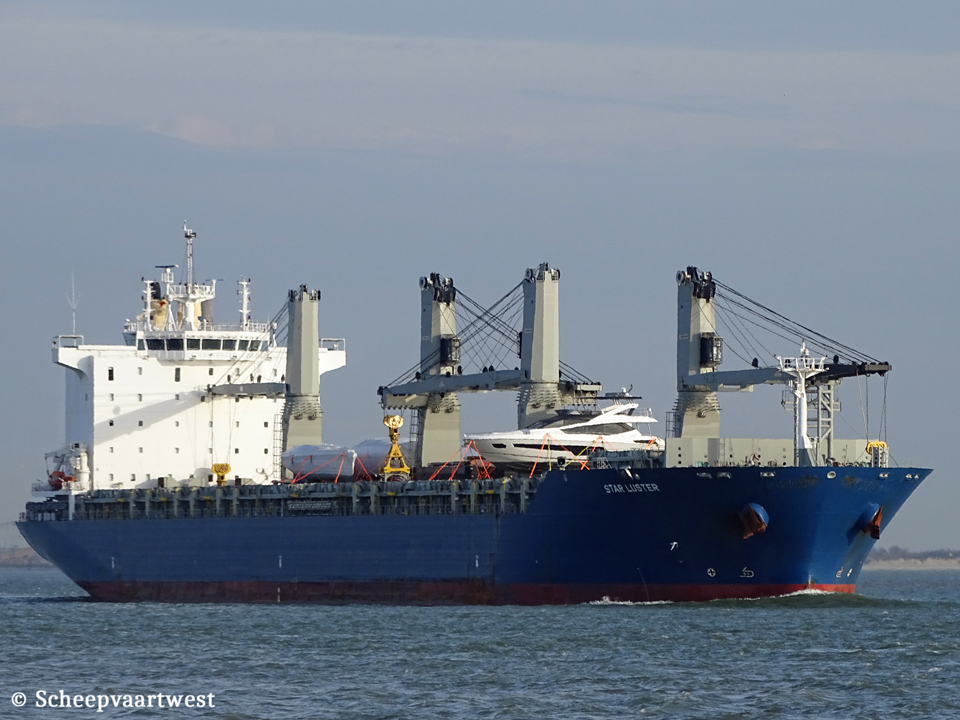

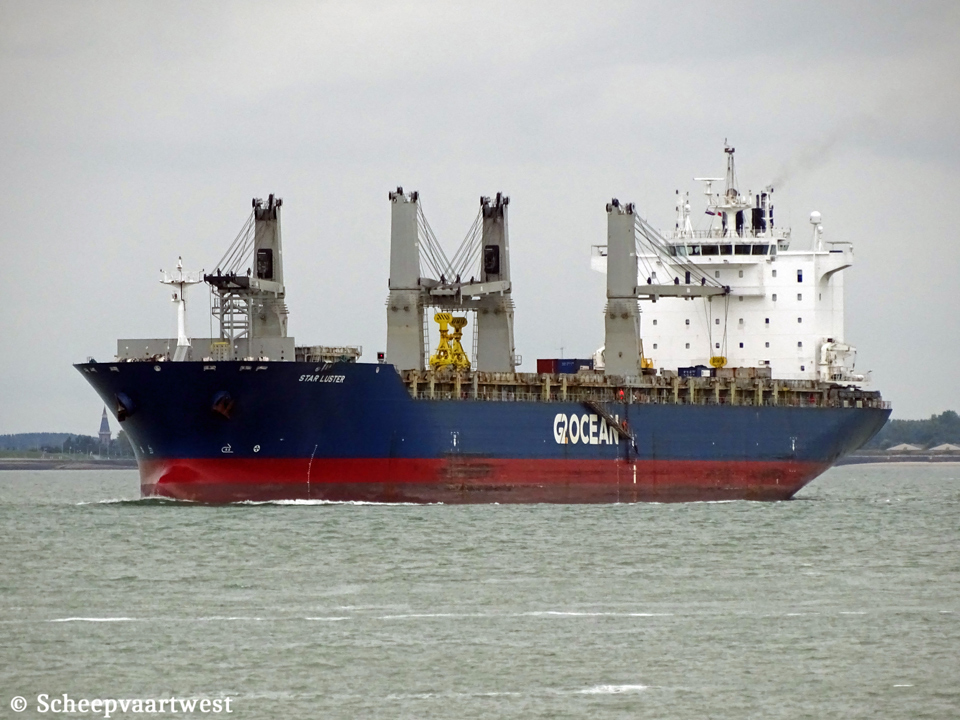

| Westerschelde 23/11/15 | Westerschelde 02/02/17 | |
|
Name |
STAR LUSTER |
|
Type |
Open hatch general cargo carrier - Container ship |
|
Main products |
Carriage of baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes |
|
IMO-number |
9603805 |
|
Call sign |
LAQO7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
37.447 t |
|
DWT |
Summer: 50.740 t |
|
NT |
15.619 t |
|
Number of 20ft containers |
1.411 |
|
Length |
204,36 m overall 194,00 m between perpendiculars |
|
Breadth |
32,31 m extreme 32,26 m moulded |
|
Draught |
12,64 m extreme 12,00 m moulded |
|
Air draft |
Max.: 51,11 m 47,00 m mast folded |
|
Depth |
19,00 m to main deck |
|
Speed |
15,5 knots at full load |
|
Built |
2013 |
|
Keel laid |
07/05/2013 |
|
Launch date |
30/06/2013 |
|
Date of completion |
21/10/2013 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
8082 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Hyundai 5S60ME-C8.1 - 2 stroke 5 cylinder combustion engine 10.780 kW at 95,2 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (economizer) type EM12RD12A4 Steam production: 1 200 kg/h Working pressure: 7 kg/cm² (0,59 MPa) Exhaust gas amount: 87.000 kg/h 1x Auxiliary boiler, oil/gas fired type PA0101P12 Steam production: 1.600 kg/h Working pressure: 7 kg/cm² (0,59 MPa) Builder: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Hyundai 5H21/32 - 5 cylinder diesel engines each 960 kW at 900 rpm connected with HFC7 506-84K generators each 1.125 kVA / 900 kW Builder: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x SISU diesel engine connected with NORHAVN GASI 8-06E generator 225 kVA / 180 kW |
|
Compressed air receivers |
|
|
Bow thruster |
1x 2.100 bhp |
|
Number of holds |
9x Box-shaped cargo holds |
|
Hold capacity |
Hold 1: 4.522 m³ / 159.711 ft³ Hold 2: 5.959 m³ / 210.443 ft³ Hold 3: 14.198 m³ / 504.926 ft³ Hold 4: 6.932 m³ / 244.814 ft³ Hold 5: 6.932 m³ / 244.814 ft³ Hold 6: 14.198 m³ / 504.926 ft³ Hold 7: 6.557 m³ / 231.571 ft³ Hold 8: 5.398 m² / 190.269 ft³ Hold 9: 1.886 m³ / 66.619 ft³ Total: 66.773 m³ / 2.258.120 ft³ |
|
Tweendecks |
2x Removable tweendecks in hold no 4 and 7 |
|
Hold ventilation |
Hold 1-2: 6x air changes per hour Hold 3-8: 2x air changes per hour |
|
Strength |
Weather deck hatch covers: 3,6 t/m² Tween decks: 5,5 metric t/m² Tank top - Hold 2 to 8 : 28,0 t/m² Tank top - Hold 9: 5,5 metric t/m² |
|
Tank capacities |
Ballast: 20.365 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
4x MacGregor GLE7526 Cranes - SWL 75 t Grabs - SWL 45 t |
|
Accommodation |
Aft for a total of 29 persons |
|
Manager |
Grieg Star Shipping AS C Sundtsg 17-19 5004 Bergen Norway |
|
Operator |
Grieg Star |
|
Registered owner |
Grieg Shipping II AS C Sundtsg 17-19 5004 Bergen Norway |
|
Previous owners |
2013 - 2013 Grieg Shipping Group |
|
Latest data adjustment |
18 October 2024 |
