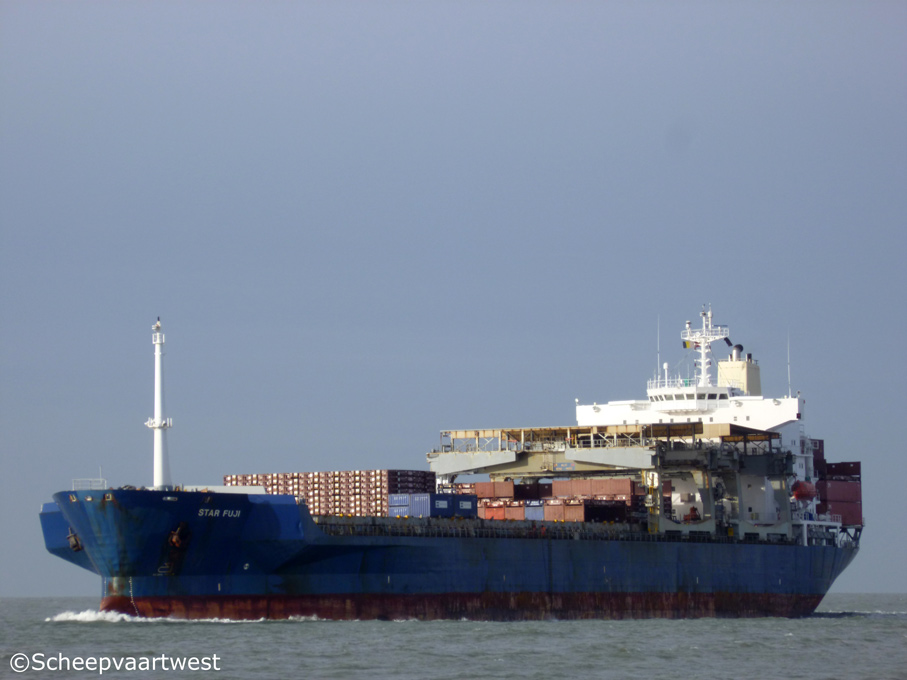

Star Fuji 01

Westerschelde 11 February 2014

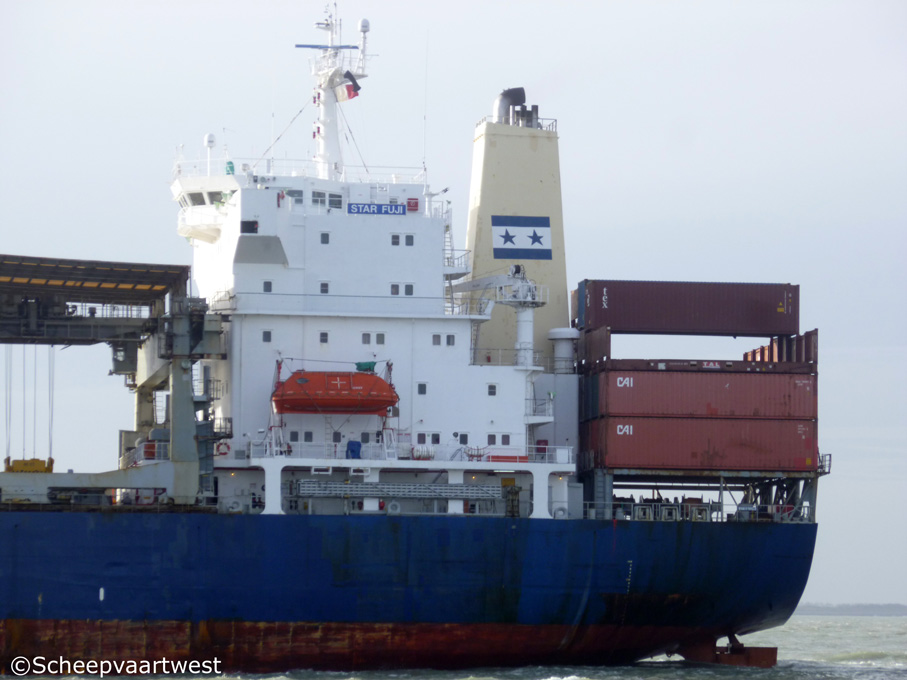

Star Fuji 04
Westerschelde 11/02/14



Name

STAR FUJI

Type

General cargo ship - open hatch - Single deck

Products

Baled pulp, ore, grain, cement, paper, packaged lumber and other solid bulk cargoes

IMO-number

8309830

Call sign

LAVX4

Flag

Norway

Port of registry

Bergen

GT

25.345 t

DWT

40.739 t

NT

11.625 t

Number of 20ft containers

On hatch cover: 544

In hold: 132

total: 676

Length

187,30 m overall

178,00 m between perpendiculars

Breadth

29,47 m extreme

Draught

Summer: 11,82 m

Winter: 11,57 m

Air draft

Max.: 46,50 m

Depth

16,25 m moulded

Speed

15,0 knots

Built

1985

Keel laid

01.09.1984

Launch date

01.12.1984

Date of completion

20.03.1985

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

320

Hull material

Steel

Main engine

1x Hyundai B&W 7L60MCE - 2 stroke 7 cylinder diesel engine 8.739,6 kW at 103,7 rpm

Turbo charger

2x Mitsui NA48

Propellers

1x Lips mono-block propeller

Boilers

1x Auxiliary boiler, composite OSAKA boiler type OEVC 150/134-26

Oil burning side: 1.500 kg/h

Exhaust gas side: 1.340 kg/h

Working pressure: 7 kg/cm²

Generators

3x Daihatsu 6PL-24 diesel - 4 stroke 6 cylinder single acting diesel engine coupled with generator output 750 kW at 720 rpm each

Emergency generator

1x MAN D2566MLE diesel generatorset 225 kVA - 180 kW - 400 Volt

Compressed air receivers

2x Tanabe HC-264A main air compressors - 130 m³/h capacity at 30,0 bar

1x Tanabe VH 114 working air compressor - 250 m³/h capacity at 7,0 bar

1x Tanabe LSHC 20B emergency diesel air compressor 4,5 m³/h at 30,0 bar

Bow thruster

1x Nakashima Stone Vickers TC 200

Number of holds

9x Box-shaped holds

Cargo holds clear opening 24,66 m x 12,30 m

Cargo hold capacity

Hold 1: 3.786,5 m³ / 133.720 ft3

Hold 2: 4.830,3 m³ / 170.581 ft3

Hold 3: 4.832,1 m³ / 170.645 ft3

Hold 4: 4.835,0 m³ / 170.746 ft3

Hold 5: 4.836,3 m³ / 170.792 ft3

Hold 6: 4.833,4 m³ / 170.691 ft3

Hold 7: 4.832,1 m³ / 170.645 ft3

Hold 8: 4.832,1 m³ / 170.645 ft3

Hold 9: 4.580,4 m³ / 161.758 ft3

Total: 42.198,2 m³ / 1.490.223 ft3

Hatchways

1x Hatch with 12,30 x 24,66 m

Fresh water generator

1x Sasakura AFGU-S51 - 30 t/day

Tank capacities

Ballast: 10.959,7 m³

Cargo gear

2x Mitsui Paceco make gantry cranes - SWL 37 t each

Crew size

Accommodation aft for a total of 31 persons

Manager

Grieg Star Shipping AS
Grieg-Gaarden, C. Sundtsgate 17/19
5807 Bergen
Norway

Previous managers

1985 - 2004 A/S Billabong

Operator

Grieg Star AS

Registered owner

Grieg International II AS

Previous owners

1985 - 2001 Fuji Inc.

Latest data adjustment

14 January 2016
