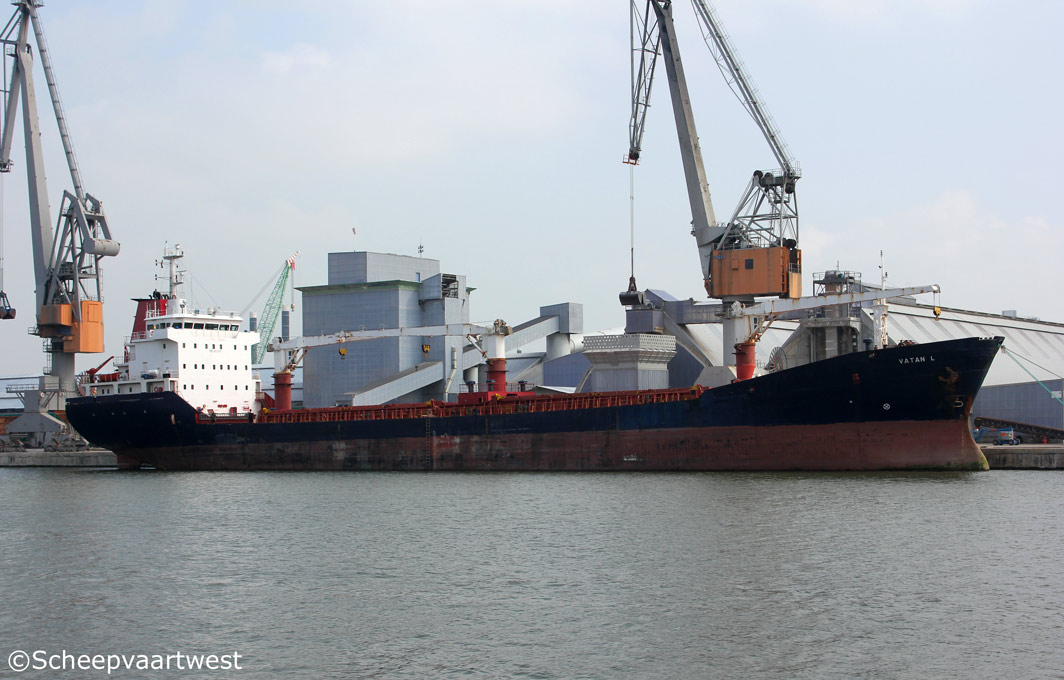

Vatan L 01

Antwerpen 30 April 2014



Name

VATAN L

Previous names

2002 - 01.2003 Delight

01.2003 - 09.2007 Obahan C

Type

Multi-purpose dry cargo ship

IMO-number

9037290

Call sign

TCCC9

Flag

Turkey

Port of registry

Istanbul

GT

6.167 t

DWT

Summer: 9.205 t

NT

3.146 t

Length

130,76 m overall

120,40 m between perpendiculars

Breadth

17,70 m moulded

Draught

8,03 m

Freeboard

2.191 mm

Depth

10,20 m

Speed

15,0 knots

Built

2002

Date of completion

05.02.2002

Builder

Celik Tekne Shipyard (Celiktekne Tersanesi San. Ve Tic. A.S.)
Istanbul
Turkey

Yard number

36

Hull material

Steel

Continuous decks

1

Main engine

1x MaK - 4 stroke 8 cylinder 320 x 480 mm diesel engine 3.840 kW / 5.217 hp at 600 rpm

Built: 2001

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw Propeller Controllable pitch - aft at 135 rpm

Boilers

1x CHR Aalborg 76,00 m² - 10,0 bar
1x CHO Aalborg 22,00 m² - 13,0 bar

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x 750 kVA - 600 kW

Generators

2x Main diesel generatorsets each 562 kVA - 450 kW - 611 hp

Emergency generator

1x Diesel generatorset 125 kVA - 100 kW - 135 hp

Number of holds

3

Cargo hold capacity

11.197 m³

Cargo hatchways

3

Hatch 1: 29,50 x 13,00 m

Hatch 2: 30,20 x 13,00 m

Hatch 3: 16,80 x 8,00 m

Tank capacities

Fuel oil: 588 m³

Cargo gear

3x Cranes - SWL 25,0 t

Manager

Armador Shipping
Istanbul
Turkey

Registered owner

Albatros Denizcilik Sanayi Tasimacilik Ve Ticaret Ltd. Sti.

Latest data adjustment

21 January 2016
