Westerschelde 21 April 2015 |
|
Name |

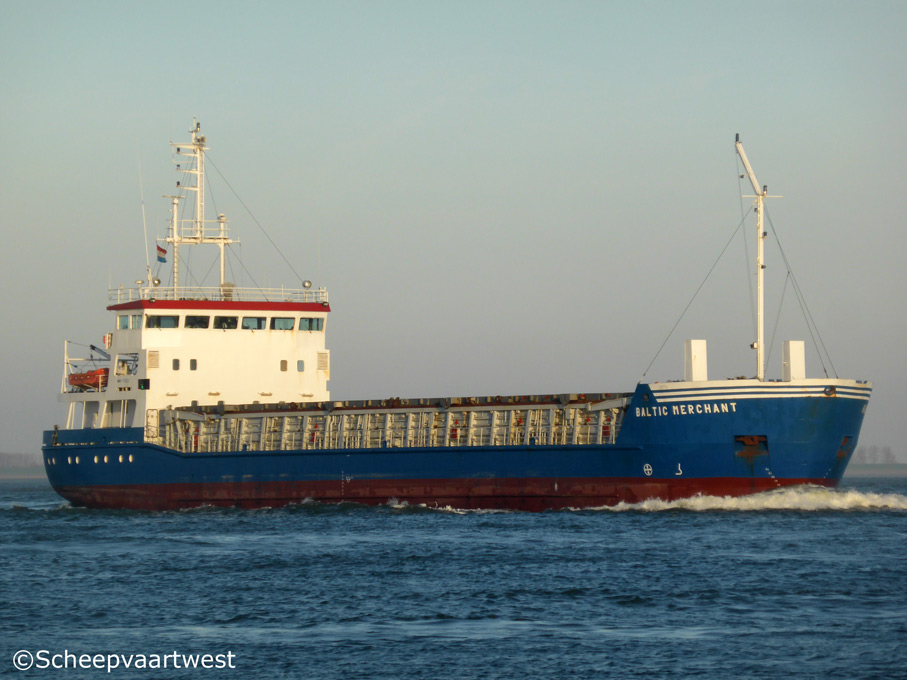

BALTIC MERCHANT |
|
Type |
General dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Box-shaped Singledecker |
|
IMO-number |
9138202 |
|
Call sign |
ZDFP2 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
1997 - 2003 Germany |
|
GT |
2.280 t |
|
DWT |
Summer: 3.110,2 t |
|
NT |
1.244 t |
|
Number of 20ft containers |
In hold: 96 On deck: 32 Total: 128 |
|
Length |
82,44 m overall 78,57 m between perpendiculars |
|
Breadth |
12,30 m extreme |
|
Draught |
5,10 m |
|
Air draft |
25,50 m in ballast (10,00 with mast collapsed) |
|
Depth |
6,64 m moulded |
|
Speed |
11,7 knots |
|
Built |
1997 |
|
Keel laid |
20.12.1996 |
|
Launch date |
11.06.1997 |
|
Date of completion |
01.11.1997 |
|
Builder casco |
Onega Arminius Shipbuilding |
|
Buider completion |
Schiffswerft und Maschinenfabrik Cassens |
|
Yard number |
10549/006 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable bulkheads |
|
Main engine |
1x Krupp MaK 8M20 - 4 stroke 8 cylinder diesel engine 1.360 kW / 1.849 bhp |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 950 kVA |
|
Generators |
1x 3306 DIT diesel generatorset 200 kVA 1x 3304 DIT diesel generatorset 100 kVA |
|
Bow thruster |
1x 150 kW |
|
Number of holds |
1 52,00 x 10,20 x 8,10 m 50,50 m clear length with bulkheads fore/aft |
|
Hold capacity |
Grain/bale: 4.187 m³ / 151.000 ft³ |
|
Number of hatches |
1 52,00 x 10,20 m |
|
Max. permitted loads |
Tanktop: 14,0 t/m² On deck: 1,52 t/m² |
|
Tank capacities |
Ballast: 1.437,5 t MDO: 116,3 t Fresh water: 23,0 t |
|
Anchor equipment |
Length: 443,14 m Diameter: 32 mm |
|
Manager |
Heinz Corleis Reederei |
|
Operator |
Baltic Forest Line GmbH |
|
Registered owner |
Baltic Forest Line MS "BALTIC MERCHANT" Schiffahrtsges. mbH & Co. KG |
|
Latest data adjustment |
07 February 2016 |
