Westerschelde 02 September 2017 |
 |
 |
 |
 |
|||
| Westerschelde 04/02/16 | Westerschelde 04/02/16 | Westerschelde 04/02/16 | Westerschelde 11/06/15 | |||
|
Name |

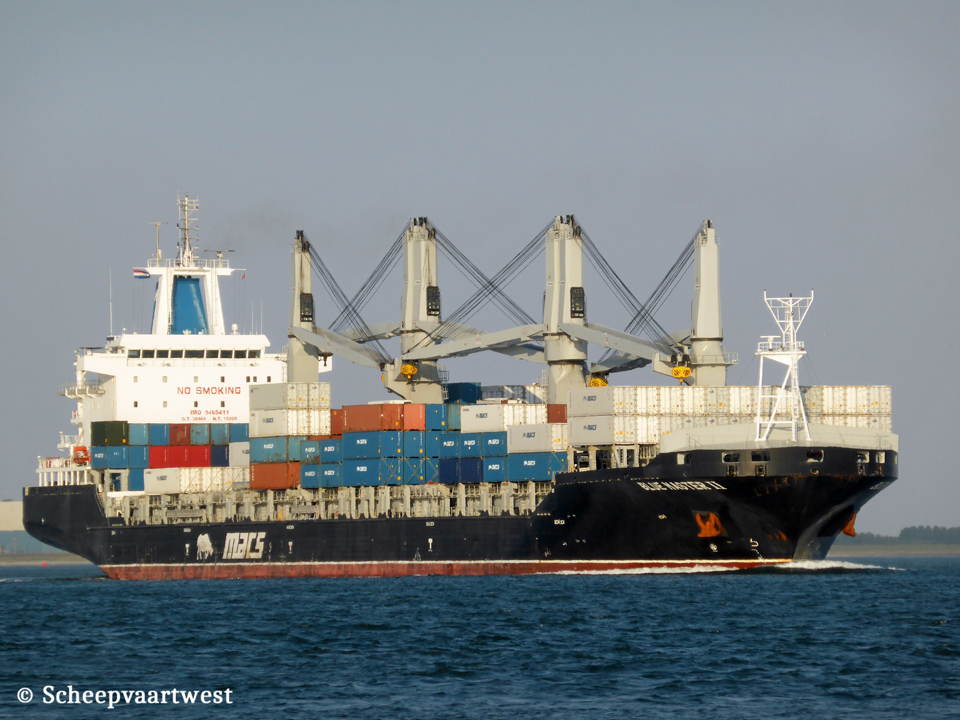

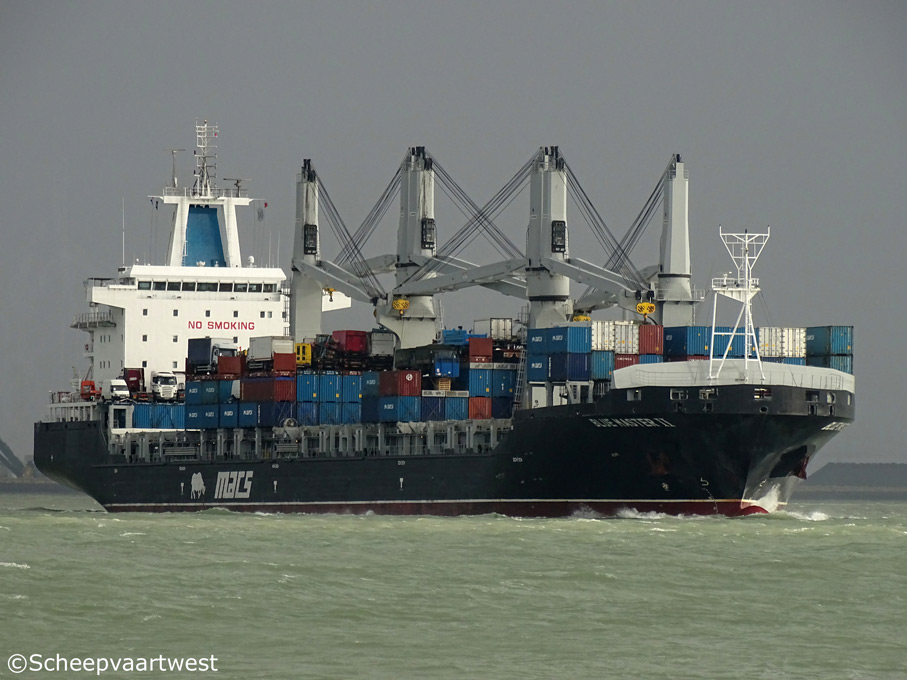

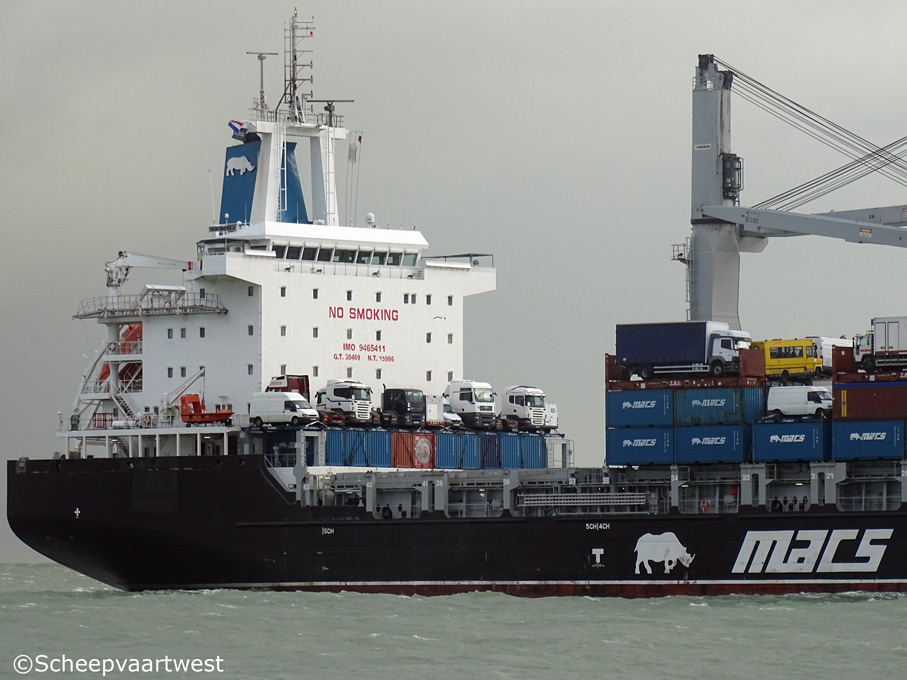

BLUE MASTER II |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9465411 |
|
Call sign |
V7ZQ4 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
30.469 t |
|
DWT |
Summer: 37.443,8 t |
|
NT |
15.996 t |
|
Number of 20ft containers |
2.225 |
|
Reefer capacity |
150 |
|
Length |
199,97 m overall 190,50 m between perpendiculars 192,24 m registered |
|
Breadth |
30,61 m extreme 30,19 m registered |
|
Draught |
11,70 m |
|
Depth |
16,40 m moulded |
|
Speed |
Max.: 19,0 knots Service: 14,5 knots |
|
Built |
2013 |
|
Keel laid |
10/05/2011 |
|
Launch date |
25/05/2012 |
|
Date of completion |
07/05/2013 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard Wuhan China |
|
Yard number |
JSH403 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä/Diesel United 7RT-flex50-B - 2 stroke 7 cylinder 500 x 2.050 mm combustion engine 11.620 kW / 15.798 hp at 124,0 rpm Year of manufacture: 2012 Manufacturer: Diesel United, Ltd. Aioi Works 5292, Aioi Aioi-shi Japan |
|
Propellers |
1x Solid propeller (keyless) - aft at 124,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 20,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 140,0 m² Year of manufacture: 2012 Manufacturer: Qingdao (Qingdao-Seatech) Marine Boiler Works Ltd. West No. 3 Road Jiaozhou Development Park Qingdao People's Republic of China |
|
Electric installations |
3x Plants each 450 V - 2.250 kVA 1x Plant 440 V - 257 kVA 2x Plants each 24 V - 320 Ah 2x Plants each 24 V - 420 Ah 4x Plants each 24 V - 800 Ah 4x Plants each 24 V - 840 Ah |
|
Generators |
3x Wärtsilä W6L26-1800 main diesel generatorsets each 2.250 kVA |
|
Emergency generator |
1x D9AMG EME/RC diesel generatorset 257 kVA |
|
Batteries |
4x Batteries for diesel control each 840 Ah 4x Batteries for start emergency engine each 800 Ah 2x Batteries for UPS navigation each 420 Ah 2x Batteries for UPS radio each 320 Ah |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar 1x Receiver 2.000 litres - 10,0 bar 1x Receiver 100 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1.200 kW, forward |
|
Number of holds |
5x Box shaped holds |
|
Cargo hold capacity |
55.095 m³ |
|
Hold ventilation |
6x air-changes / hour |
|
Number of hatches |
5 Hatch 1: 20,00 x 13,30 m Hatches 2/4: 28,00 x 12,73 m Hatch 3: 36,00 x 12,73 m Hatch 5: 21,60 x 12,73 m |
|
Tank capacities |
Ballast: 12.715,8 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
6x Deck cranes - SWL 60,0 t each |
|
Commercial manager |
MACS Maritime Carrier Shipping GmbH & Co. Große Elbstraße 138 22767 Hamburg Germany |
|
ISM manager |
Vineta Bereederungsgesellschaft mbH Große Elbstraße 138 22767 Hamburg Germany |
|
Registered owner |
MACS Maritime Carrier Shipping GmbH & Co. Große Elbstraße 138 22767 Hamburg Germany |
|
Latest data adjustment |
14 November 2023 |
