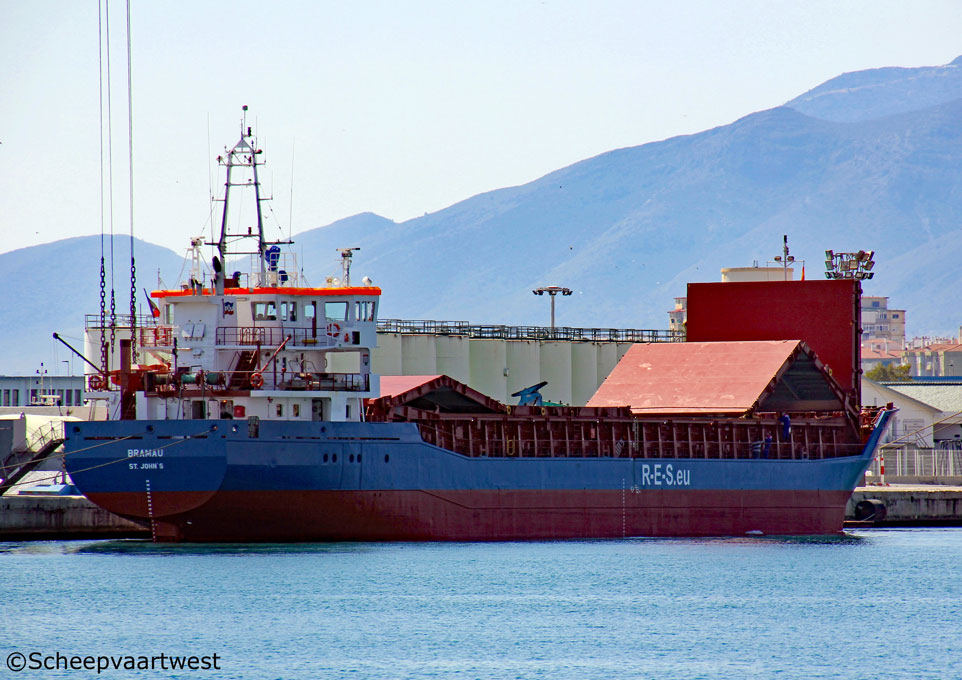

Malaga - Spain 13 March 2016 |
|
Name |
BRAMAU |
|
Type |
Multi-purpose dry cargo ship |
|
IMO-number |
9280677 |
|
Call sign |
V2BJ9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
2.461 t |
|
DWT |
Summer: 3.806 Winter: 3.688 |
|
DWCC |
Summer: 3.550 t Winter: 3.450 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
176 |
|
Length |
87,83 m overall 81,00 m between perpendiculars |
|
Breadth |
12,80 m extreme |
|
Draught |
Summer: 5,59 m Winter: 4.47 m 4,20 m in ballast |
|
Keel to mast end |
24,00 m |
|
Air draft |
20,75 m basis full ballast |
|
Depth |
7,10 m moulded |
|
Speed |
12,0 knots |
|
Built |
2006 |
|
Keel laid |
25/06/1998 |
|
Launch date |
10/10/2005 |
|
Date of completion |
05/01/2006 |
|
Builder |
Slovenske Lodenice Komarno a.s Prevadzkaren Slovakia |
|
Yard number |
2960 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable grain bulkheads units |
|
Number of decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.067 hp at 1.000 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired type CA150 |
|
Generators |
3x MAN D2866E main diesel generatorsets each 130 kW |
|
Emergency & Harbour gen. |
1x Cummins 4BT3.9-D(M) diesel generatorset 49 kW |
|
Bow thruster |
1x Jamstram BU40F - 185 kW |
|
Number of holds |
1x Bow type with bulkheads 56,55 x 10,20 x 8,13 m 55,80 x 10,20 x 8,13 m Incl. Bulkheads |
|
Cargo hold capacity |
4.613 m³ / 163.000 ft³ |
|
Number of hatches |
1 55,75 x 10,20 m |
|
Hatch cover type |
Kvaerner type |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Deck: 1,60 t/m² |
|
Tank capacities |
Ballast: 1.652,7 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Manager |
Reederei Erwin Strahlmann GmbH & Co. KG |
|
Previous managers |
2006 - 2015 Schifffahrtskontor Erwin Strahlmann e.K. |
|
Operator |
R.E.S. Chartering GmbH Fuhlentwiete 10 20355 Hamburg Germany |
|
Owner |
Roland Ship Administration GmbH & Co. KG |
|
Previous owners |
2006 - 2006 Schifffahrtskontor Erwin Strahlmann e.K. 2006 - 2013 Erwin Strahlmann MS "BRAMAU" |
|
Renamed |
2020 Maintal Portugal, Madeira - call sign: CQEO4 Owner: Schiffahrts UG (haftungsbeschränkt) & Co. KG MS "Maintal" Manager: HS Bereederungs GmbH & Co. KG |
|
Latest data adjustment |
29 July 2022 |
