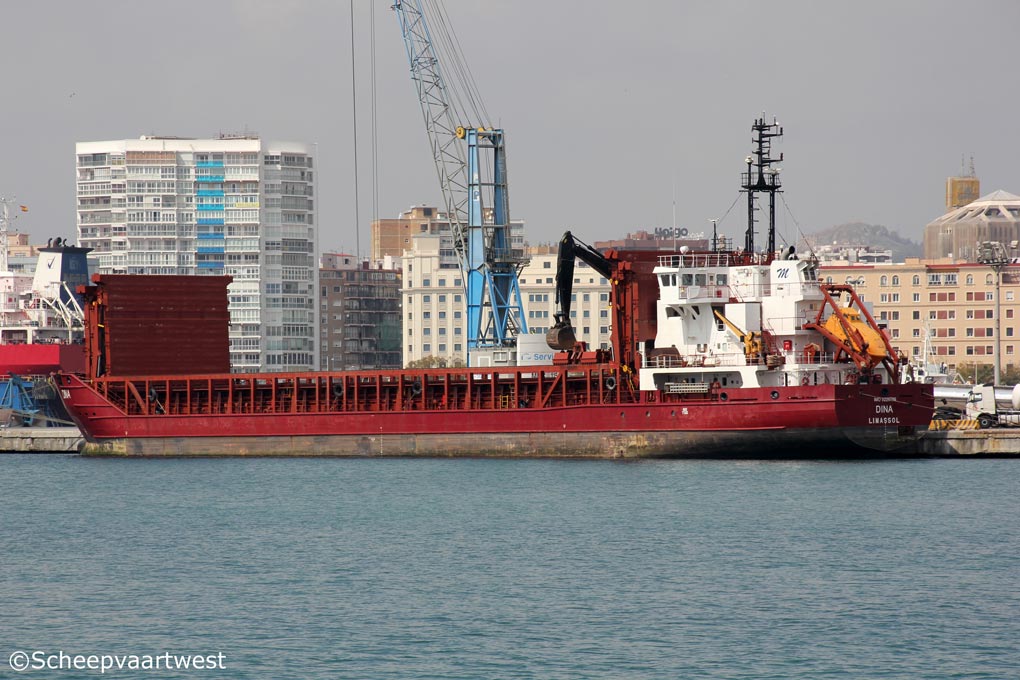

Malaga - Spain 18 March 2016 |
|
Name |
DINA |
|
Previous names |
2002 - 02.2010 Alsen |
|
Type |
General dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Self discharging |
|
IMO-number |
9226786 |
|
Call sign |
P3EE9 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
3.925 t |
|
DWT |
4.640 t |
|
NT |
1.782 t |
|
Number of 20ft containers |
In hold: 150 On deck: 75 Total: 225 |
|
Reefer capacity |
20 |
|
Length |
99,95 m overall 96,00 m between perpendiculars |
|
Breadth |
16,20 m extreme |
|
Draught |
5,10 m |
|
Depth |
7,35 m |
|
Speed |
Service: 11,0 knots |
|
Built |
2002 |
|
Keel laid |
08.06.1998 |
|
Launch date |
06.06.2001 |
|
Date of completion |
01.2002 |
|
Builder |
Zhejiang Yangfan Ship Group Co Ltd |
|
Yard number |
30224 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x Movable bulkheads - 9 positions |
|
Main engine |
1x MaK 6M32 - 6 cylinder diesel engine 3.916 bhp / 2.880 kW Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
400 kW |
|
Generators |
1x D 2866 LXE main diesel generatorset 239 kW |
|
Emergency generator |
1x D 2866 LXE diesel generatorset 223 kW |
|
Bow thruster |
1x 180 kW |
|
Number of holds |
1x Boxed hold 63,70 x 12,90 x 8,53 m |
|
Hold capacity |
Grain & bale: 7.054 m³- 249.000 ft³ |
|
Number of hatches |
1 |
|
Hatch type |
McGregor hatch cover folding |
|
Max. permitted loads |
Tank top: 17,0 t/m² Hatch cover: 1,7 t/m² |
|
Tank capacities |
Ballast: 2.577 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Lifting equipment |
1x Excavator Volvo EC 700BLC - SWL 7,75 t Capacity: 350 m3/h |
|
Manager |
Myklebusthaug Management AS |
|
Previous managers |
2002 - 2010 Reider Shipping B.V. |
|
Owner |
Mikkal Myklebusthaug Rederi AS |
|
Previous owners |
2002 - 2010 Belka Shipping Co. Ltd. |
|
Latest data adjustment |
21 April 2016 |
