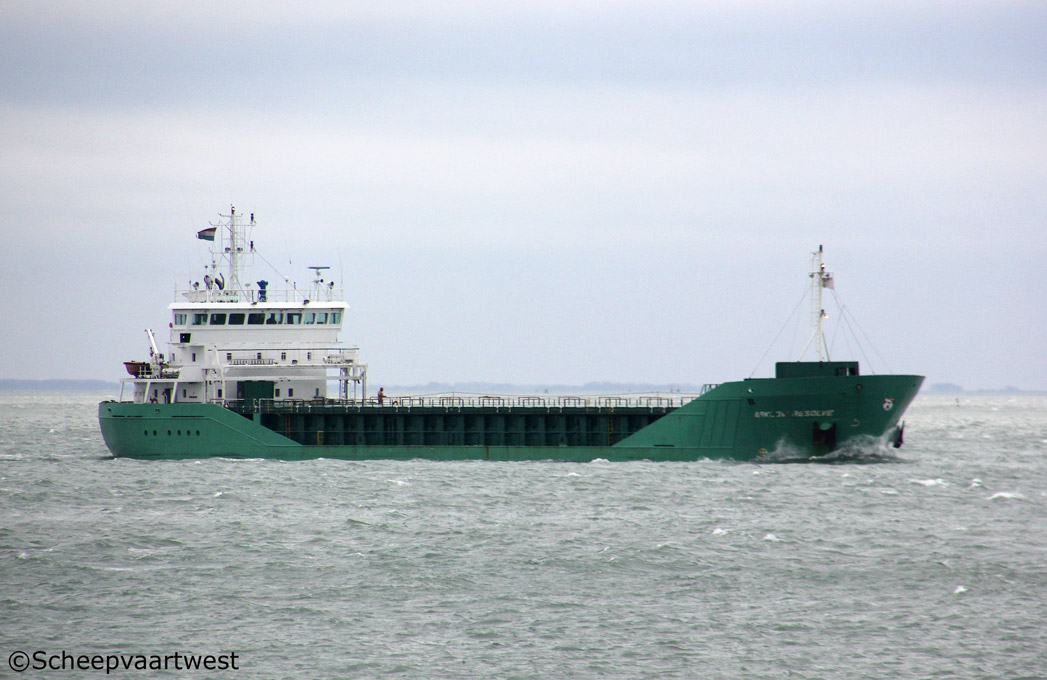

Westerschelde 10 November 2015 |
|
Name |
ARKLOW RESOLVE |
|
Type |
General cargo ship - heavycargo - Strength bottom |
|
IMO-number |
9287766 |
|
Call sign |
PBZL |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
2004 - 2010 Ireland, Arklow - Call sign: EIKC |
|
GT |
2.999 t |
|
DWT |
Summer: 4.979 t Winter: 4.821 t |
|
NT |
1.639 t |
|
Displacement |
6.392 t |
|
Number of 20ft containers |
In hold: 102 On deck: 36 Total: 138 |
|
Length |
89,99 m overall 84,98 m between perpendiculars |
|
Breadth |
14,18 m extreme 14,00 m moulded |
|
Draught |
Summer: 6,10 m Winter: 5,96 m |
|
Keel to top antenna fwd/aft |
21,08 m / 24,50 m |
|
Air draft |
20,60 m |
|
Freeboard |
860 mm |
|
Depth |
7,15 m |
|
Speed |
11,5 knots |
|
Built |
2004 |
|
Keel laid |
01/05/2003 |
|
Launch date |
31/10/2003 |
|
Date of completion |
05/01/2004 |
|
Builder |
Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V. Stroobos The Netherlands |
|
Yard number |
302 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Movable bulkheads |
2x May be placed in 9 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.499 kW at 750 rpm Built: 2003 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Gearbox |
1x Reduction gear Scana Voldo |
|
Propellers |
1x Screw propeller controllable pitch - aft at 196 rpm Diameter: 3.400 mm - 4 blades |
|
Electric installations |
Power Voltage: 400 V Lighting Voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x Stamford HCM534D2 435 kVA - 348 kW |
|
Generators |
2x Sisu Valmet 634DSIG- 6 cylinder 108 x 134 mm diesel engine each 150 kW at 1.500 rpm coupled with Stamford UCM274 H generator each 175 kVA |
|
Bow thruster |
1x Veth tunnel 250 kW |
|
Number of holds |
1 62,40 x 11,50 x 8,37 m |
|
Hold capacity |
Grain & bale: 207.391 ft³ / 5.873 m³ incl. Bulkheads 206.541 ft³ / 5.849 m³ bulkheads stowed midships |
|
Cargo hatchways |
1 62,40 x 11,50 m |
|
Hatch type |
Roden Steel pontoon system |
|
Max. permitted loads |
Hatch top loading: 1,5 t/m² Tanktop loading: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.945,5 m³ HFO: 121,28 m³ Gas oil: 25,84 m³ Fresh water: 88 m³ Lub oil: 13 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 36 mm |
|
Lifting equipment |
1x Gantry crane |
|
Manager |
Arklow Shipping Nederland BV Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Previous managers |
2004 - 2010 Arklow Shipping Ltd., Arklow - Ireland |
|
Owner |
Arklow Shipping Nederland BV Hoofdweg 18 3067 GH Rotterdam The Netherlands |
|
Previous owners |
2004 - 04/2010 Invermore Shipping Ltd., Arklow - Ireland |
|
Renamed |
01/2020 Wilson Perth Norway, Bergen - Call sign: LAJV8 Manager: Wilson Ship Management AS, Bergen, Norway Owner: Wilson Eurocarriers A.S., Bergen, Norway |
|
Latest data adjustment |
19 March 2020 |
