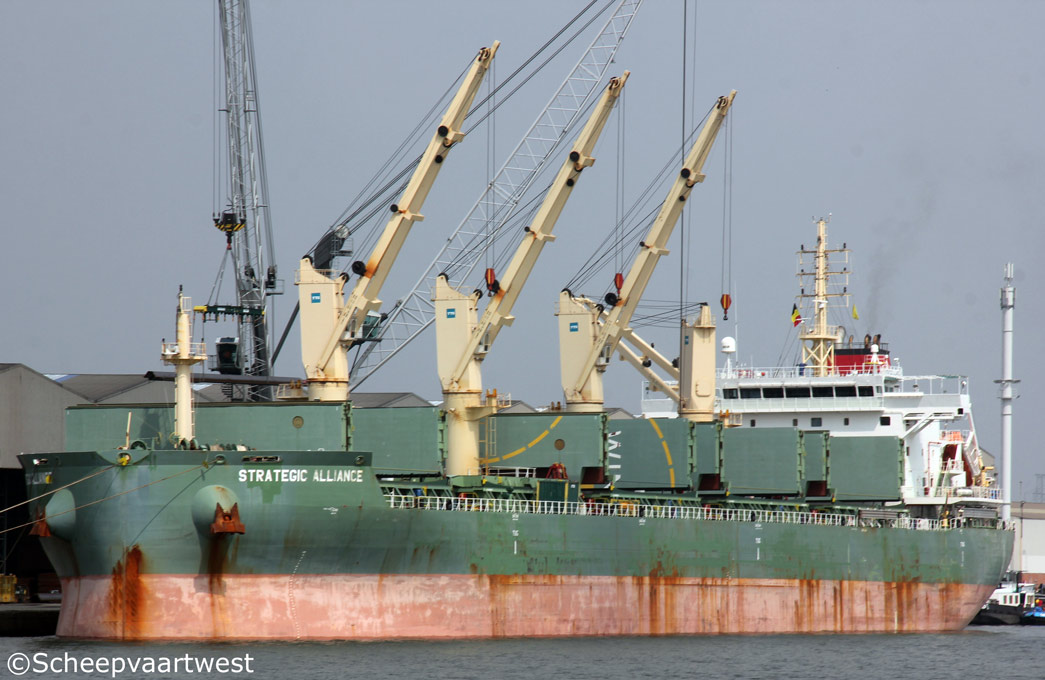

Strategic Alliance 01

Antwerpen 26 May 2016



Name

STRATEGIC ALLIANCE

Type

Dry bulk carrier - Carriage of dangerous goods

IMO-number

9648075

Call sign

9V7193

Flag

Republic of Singapore

Port of registry

Singapore City

GT

24.641 t registered

DWT

Summer: 39.848 t

Winter: 38.738 t

NT

13.203 t registered

Length

179,99 m overall

176,65 m between perpendiculars

Breadth

30,00 m moulded

Draught

10,50 m

Freeboard

4.541 mm

Depth

15,00 m moulded

Speed

Speed: 14,0 knots

Built

2014

Keel laid

08.05.2013

Launch date

11.09.2013

Date of completion

02.01.2014

Builder

Tianjin XIngang Shipbuilding Heavy Industry Co., Ltd.
China

Yard number

NB008-1

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W-Yichang Marine 5S50ME-B9.2 - 2 stroke 5 cylinder 500 x 2.214 mm diesel engine 6.050 kW at 99,0 rpm

Manufacturer: Yichang Marine Diesel Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Dalian Marine Propeller Co., Ltd.

Boilers

1x Fired exhaust gas boiler - 9,5 bar

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 650 kW

Manufacturer: HHI electro Electric System

Emergency generator

1x Diesel generatorset 120 kW

Number of holds

5

Hold capacity

Grain:

Hold 1: 309.995 ft³

Hold 2: 395.775 ft³

Hold 3: 368.935 ft³

Hold 4: 195,775 ft³

Hold 5: 340.754 ft³

Total: 1.811.234 ft³ / 51.392,3 m³

Number of hatches

5

Hatch 1: 16,80 x 20,80 m

Hatch 2-3-4-5: 19,20 x 20,80 m

Hatch type

Folding hatchcovers

Number of tanks

Fuel oil: 12

Ballast: 12

Lubricating oil: 9

Fresh water: 6

Waste water: 5

Diesel oil: 4

Chain: 2

Sludge: 2

Sea water: 1

Tank capacities 100%

Diesel Oil: 157,8 m³ / 134,13 t

Freshwater: 220,2 m³

Lube Oil: 172 m³ / 154,99 t

Tank Ballast: 14.783,6 m³ / 15.153,19 t

Lifting equipment

1x Electric engine room crane - SWL 4,0 t

Manufacture: Jiangyin Huasheng Marine Machine Co., Ltd.

1x Electric slewing crane - SWL 3,0 t

Manufacture: Zhenjiang Just MArine Equipment Co., Ltd.

Cargo gear

4x Deck cranes - SWL 30,0 t each

Outreach 11,00 m
Manufacture: TTS Bohai Machinery Dalian Co., Ltd.

Number of grabs

4x Each12,0 m³

Manager

M.T.M. Ship Management Pte. Ltd.
78 Shenton Way #13-01
079120, Singapore
Republic of Singapore

Registered owner

SBC Alliance Pte. Ltd.
Republic of Singapore

Latest data adjustment

29 June 2016
