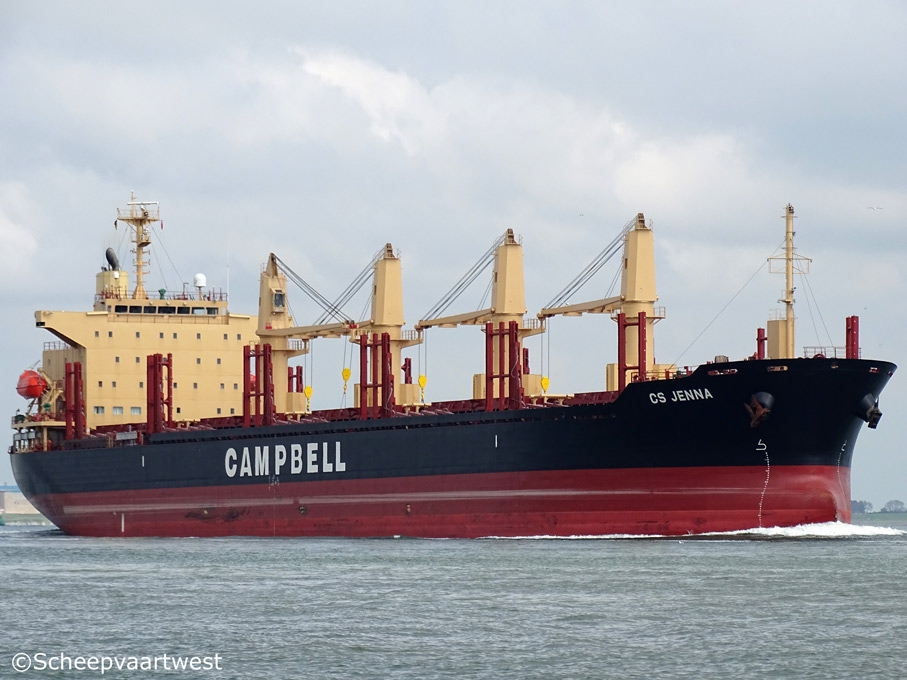

CS Jenna 01

Westerschelde 25 May 2016



Name

CS JENNA

Type

Bulk carrier - Handymax - Box-shaped

Strengthened for the carriage of heavy cargoes

IMO-number

9748409

Call sign

C6CE2

Flag

Bahamas

Port of registry

Nassau

GT

23.269 t registered

DWT

37.713 t

NT

12.101 t registered

Length

179,97 m overall

173,00 m between perpendiculars

Breadth

29,80 m moulded

Draught

9,70 m

Freeboard

4.500 mm

Depth

15,00 m moulded

Speed

14,7 knots

Built

2015

Keel laid

30.01.2015

Delivery date

29.09.2015

Builder

Imabari Shipbuilding Co.,Ltd.

Imabari
Japan

Yard number

S-891

Hull material

Steel

Watertight bulkheads

5

Main engine

1x MAN B&W-Makita 6S46ME-B8.3 - 6 cylinder 460 x 1.932 mm diesel engine 6.820 kW at 110 rpm

Manufacturer: Makita Corporation

Propellers

1

Boilers

1x Composite boiler - 6,86 bar

Generators

3x Main diesel generatorsets each 480 kW

Manufacturer: Taiyo Electric

Number of holds

5

Cargo hold capacity

Bale 42.103,57 m³

Number of tanks

Ballast: 22

Fuel Oil: 13

Lubricating Oil: 9

Waste Water: 4

Diesel Oil: 4

Fresh Water: 3

Chain: 2

Sea Water: 1

Sludge: 1

Tank capacities 100%

Diesel Oil: 170,57 m³ / 150,10 t

Freshwater: 294,84 m³

Fuel Oil: 1.789,1 m³ / 1.753,31 t

Lube Oil: 18,56 m³ / 17,07 t

Tank Ballast: 15.089,33 m³ / 15.466,56 t

Lifting equipment

2x Provisions crane - SWL 0,9 t each

1x Provisions crane - SWL 2,0 t

Cargo gear

4x Deck cranes - SWL 30,5 t each

Manager

Campbell Group of Companies
Nassau
Bahamas

Operator

Campbell Shipping Company Pvt. Ltd.

Owner

Campbell Shipping Company Limited
45 West Bay Street
Campbell Maritime Centre
2nd Floor East
Nassau, NP
Bahamas

Registered owner

Jiaying Holdings Limited

Latest data adjustment

30 June 2016
