Antwerpen 07 July 2016 |
|
Name |

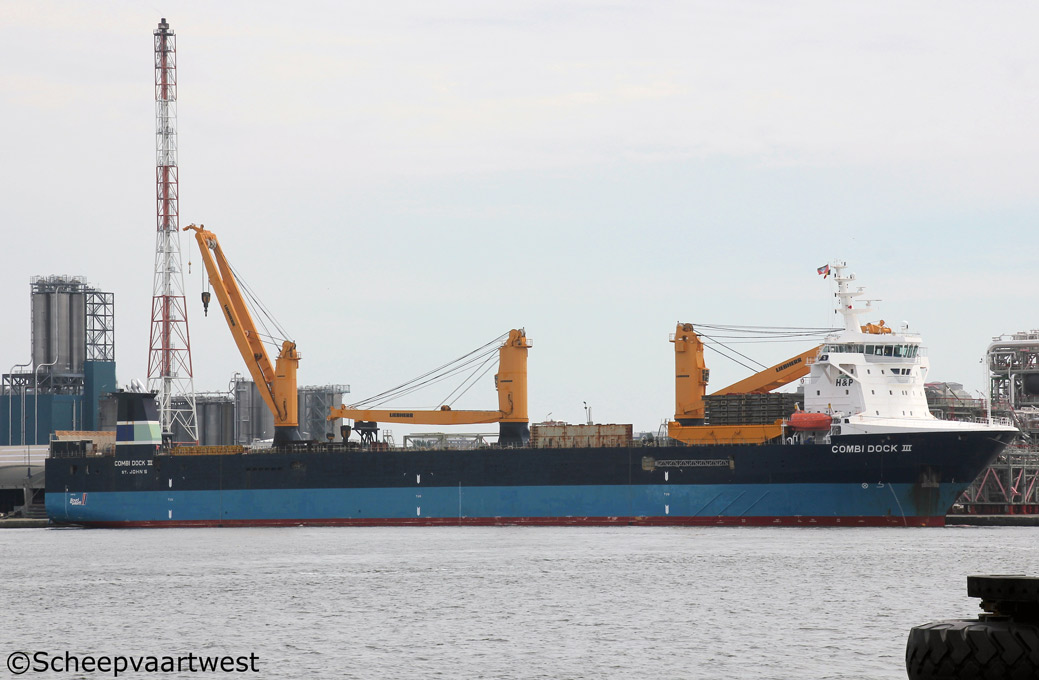

COMBI DOCK III |
|
Type |
Multi-purpose dry cargo ship - Semi-submersible - Equipped for carriage of containers - Equipped for carriage of ro-ro-cargo - Strengthened for heavy cargo Heavy load carrier |
|
IMO-number |
9432828 |
|
Call sign |
V2PX8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
17.341 t |
|
DWT |
Summer: 10.608 t |
|
NT |
5.203 t |
|
Number of 20ft containers |
On deck: 963 Hold: 420 Total: 1.383 |
|
Container capacity 14t |
671 |
|
Length |
169,40 m overall 147,60 m between perpendiculars |
|
Breadth |
25,73 m extreme 25,40 m moulded |
|
Draught |
Summer: 6,60 m |
|
Docking draft |
11,00 m |
|
Depth |
10,00 m |
|
Speed |
Max.: 16,0 knots |
|
Built |
2009 |
|
Keel laid |
20.03.2008 |
|
Launch date |
04.08.2008 |
|
Date of completion |
17.02.2009 |
|
Builder |
Lloyd Werft Bremerhaven GmbH Germany |
|
Yard number |
114 |
|
Hull material |
Steel |
|
Main engine |
2x MAN B&W 8L32/4CR - 4 stroke 8 cylinder diesel engine 8.960 kW |
|
Propellers |
2x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1 - Mission OS 1x Auxiliary boiler, exhaust gas heated - Mission XS-7V |
|
Shaft generator |
2x 856 kVA each |
|
Generators |
2x MAN B&W 5L23/30H main diesel generatorsets each 658 kVA |
|
Emergency generator |
1x MAN D2866LXE20 diesel generatorset 265 kVA |
|
Bow thruster |
1x 700 kW |
|
Number of holds |
1 Boxshaped: 132 x 18,00 x 9,40 m |
|
Hold capacity |
22.800 m³ |
|
Hatch |
132,00 x 25,40 m |
|
Max. deckload |
Tanktop: 16,0 t/m² Tweendeck: 4,58 t/m² Hatch cover: 2,55 t/m² |
|
Dockship |
132,00 m Max. flushdeck |
|
Stern ramp |
750 t Width: 18,00 m Length: 10,80 m without flap, 13,80 m with flap |
|
Tank capacities |
Ballast: 17.372,6 m³ Fuel oil: 1.254 m² Marine diesel oil: 131 m³ Fresh water: 223 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
2x Liebherr electro hydraulic cranes port side SWL 350 t each - combinable up to 700 t 1x Liebherr electro hydraulic cranes port side SWL 200 t |
|
Manager |
Harren Ship Management GmbH & Co. KG Germany |
|
Registered owner |
Dockship III ApS |
|
Latest data adjustment |
27 July 2016 |
