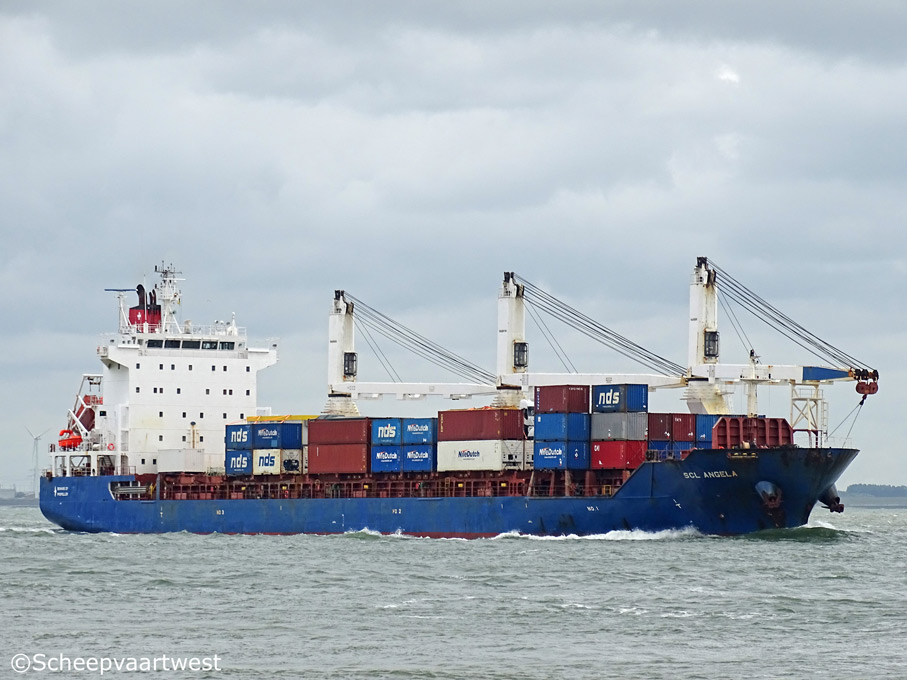

Westerschelde 18 June 2016 |
|
Name |
SCL ANGELA |
|
Previous names |
2007 build as: Safmarina Akwaba 2007 - 11.2012 Safmarine Angela |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
Basic functions |
Transport of bulk, project/general/heavy lift cargo |
|
IMO-number |
9359935 |
|
Call sign |
HBEK |
|
Flag |
Switzerland |
|
Port of registry |
Basel |
|
GT |
9.938 t |
|
DWT |
Summer: 12.605 t |
|
NT |
4.265 m |
|
Number of 20ft containers |
In hold: 292 On deck: 414 Total :706 |
|
Reefer plug |
138 sockets - 400 Volt |
|
Length |
139,96 m overall 133,50 m between perpendiculars |
|
Breadth |
21,78 m extreme 21,51 m moulded |
|
Draught |
Summer: 8,40 m |
|
Depth |
11,65 m |
|
Speed |
Service: 16,7 knots |
|
Built |
2007 |
|
Keel laid |
10.07.2007 |
|
Launch date |
25.09.2007 |
|
Date of completion |
20.12.2007 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. |
|
Yard number |
343-1 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Movable bulkheads |
T/D panels can be used as port Bulkheads in hold 2 in 2 locations, in hold 3 in 1 location |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm diesel engine - 7.860 kW at 129,0 rpm Builder: MAN B&W Diesel A/S Frederikshavn - Denmark |
|
Propellers |
1x Solid propeller (keyless) - aft at 129,0 rpm 5 blades |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar 1x Steam boiler,exhaust gas heated - 8,0 bar Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
3x Plants each 450 V - 850 kVA 1x Plant 450 V - 125 kVA |
|
Generators |
3x Cummins 6BT5.9-DMGE diesel generatorset 125 kVA |
|
Emergency generator |
1x Cummins 6BT5.9-D(M) diesel generatorset 125 kVA |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar |
|
Bow thruster |
1x CCP bow thruster - 500 kW, forward |
|
Number of holds |
3x Box shaped type; partly of slant construction in hold 1 forward and 3 aft for bulk cargo Tween deck: 1x Tween deck in all holds in hold 2 with two heights Hold 1: 20,30 x 7,00 m forward / 10,80 m aft Hold 2: 39,20 x 17,90 m Hold 3: 25,90 x 17,90 m |
|
Hold capacity |
16.113 m³ |
|
Hatch cover type |
Weather tight hydraulic folding type, combined with lift-away pontoons |
|
Max. permitted loads |
Tanktop: 18,0 t/m² Tween deck: 3,5 t/m² Hatch covers: 3,5 t/m |
|
Ballast pump |
2x 300 m³/h |
|
Freshwater generator |
15 m³/h |
|
Tank capacities |
Fuel oil: 1.130 m³ Marine diesel oil: 140 m³ Fresh water: 180 m³ Ballast: 4.920,3 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Length: 550,00 m Diameter: 54 mm |
|
Cargo gear |
1x Crane electro-hydraulic - SWL 45 t / 40 t 2x Cranes electro-hydraulic - SWL 80 / 60 / 45 / 40 t - combined 144 t with team beam |
|
Accommodation |
For 19 persons in single cabins, galley, 2 x mess-room, office, laundry and stores |
|
Manager |
ESM - Enzian Ship Management AG |
|
Commercial manager
|
Enzian Ship Management AG |
|
Managing owner |
SCL Reederei AG |
|
Owner |
Single ship companies |
|
Registered owner |
SCL Angela AG |
|
Latest data adjustment |
26 July 2016 |
