Westerschelde 15 October 2014 |
 |
 |
 |
 |
|||

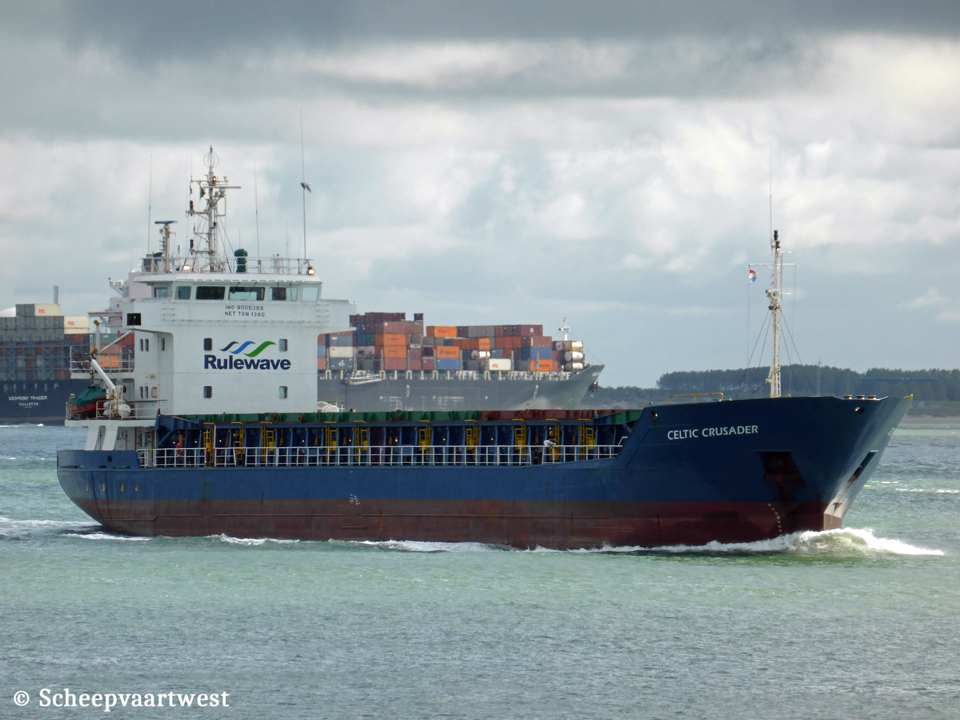

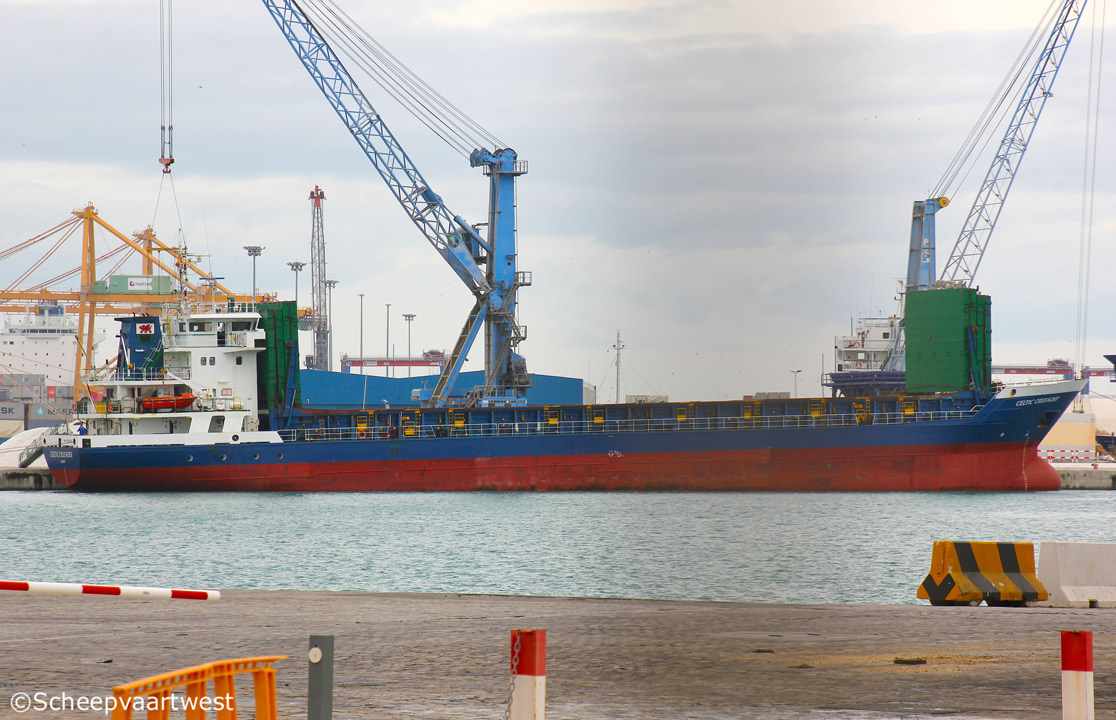

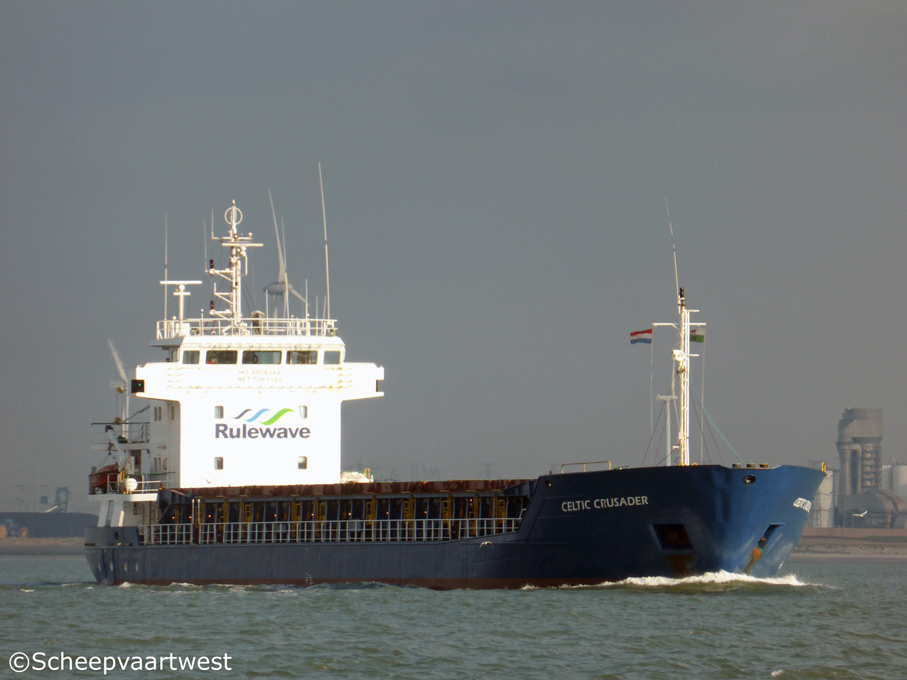

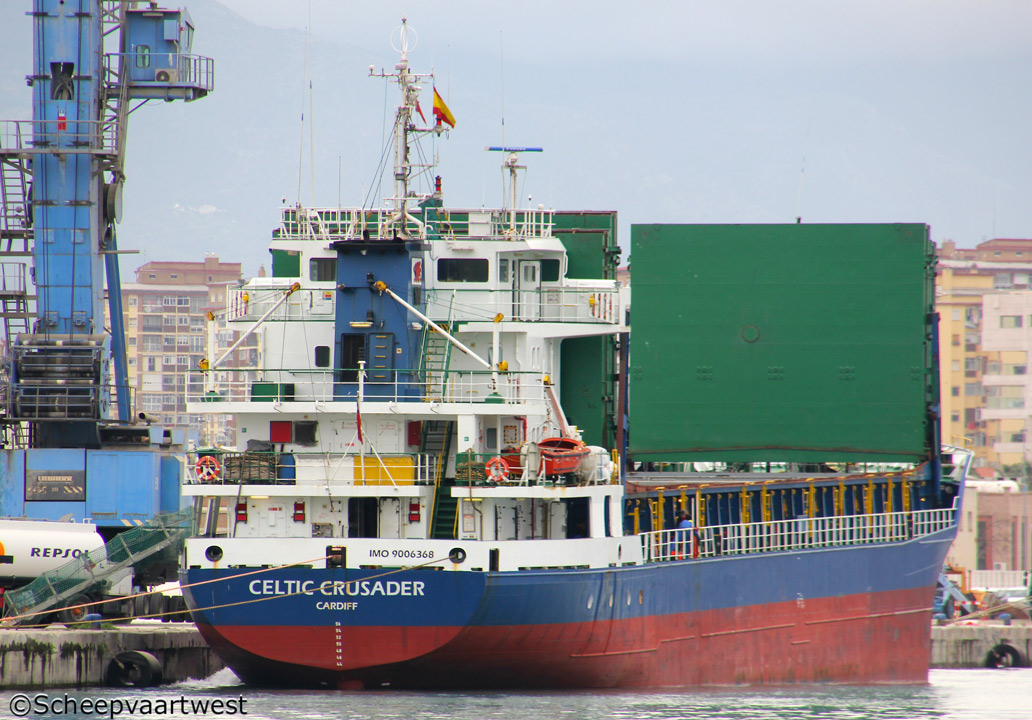

| Malaga, Spain 18/03/18 | Malaga, Spain 18/03/18 | Westerschelde 06/09/15 | Westerschelde 27/09/15 | |||
|
Name |
CELTIC CRUSADER |
|
Previous names |
1994 - 07/1994 Scorpio 07/1994 - 06/1998 Scorpius 06/1998 - 02/2013 Lamego |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9006368 |
|
Call sign |
2GGS3 |
|
Flag |
United Kingdom |
|
Port of registry |
Cardiff |
|
Previous flags |
Portugal, Madeira - Call sign: CQYC Cyprus, Limassol - Call sign: 5BAV3 Antigua & Barbuda, St. John’s: V2GE7 |
|
GT |
2.449 t |
|
DWT |
Summer: 3.712,6 t Winter: 3.590,0 t |
|
DWCC |
Summer: 3.550 t Winter: 3.450 t |
|
NT |
1.380 t |
|
Displacement |
4.597 Full loaded |
|
Light ship |
1.193 t 1.163 t without bulkheads |
|
Number of 20ft containers |
108 |
|
Number of 40ft containers |
32 + 8 TEU |
|
Length |
87,86 m overall 81,83 m between perpendiculars |
|
Breadth |
12,90 m extreme 12,80 m moulded |
|
Draught |
Summer: 5,46 m Winter: 5,35 m 3,90 m full ballast |
|
Air draft |
21,00 m in ballast |
|
Depth |
7,10 m moulded |
|
Speed |
Service: 9,5 knots |
|
Built |
1994 |
|
Keel laid |
02/07/1993 |
|
Launch date |
25/02/1994 |
|
Date of completion |
30/06/1994 |
|
Builder |
Peene-Werft GmbH Wolgast Germany |
|
Yard number |
411 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x in 9 positions |
|
Main engine |
1x Deutz MWM SBV8M628 - 4 stroke 8 cylinder 240 x 208 mm combustion engine 1.500 kW / 2.039 bhp at 900 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x Deutz MWM TBD234V6 main diesel generatorset 182 kW at 1.500 rpm |
|
Emergency generator |
1x Deutz F5L413FR diesel generatorset 68 kW at 1.500 rpm |
|
Bow thruster |
1x Schottel Spray STT-170LK - 184 kW / 250 hp |
|
Number of holds |
1x Box hold 56,55 x 10,20 x 8,13 m |
|
Hold capacity |
Grain: 4.635 m³ / 165.536 ft³ with bulkheads Bale: 4.690 m³/ 165.632 ft³ with bulkheads |
|
Hold ventilation |
6x Air changes per hour |
|
Number of hatches |
1 56, 55 x 10,20 m |
|
Hatch type |
Kvaerner Multifold |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,5 t/m² |
|
Tank capacities |
Gas oil: 122,80 m³ Fresh water: 56,7 m³ Lub oil: 6,85 m³ Ballast: 1.641,96 m³ Sludge: 4,6 m³ Bilge water: 8,79 m³ Sewage: 5,64 m³ Garbage: 1,70 m³ |
|
Anchor equipment |
Length: 446,10 m Diameter: 32 mm |
|
Crew |
6 |
|
Manager |
Charles M Willie & Co. (Shipping) Ltd. 6 Ocean Way Cardiff CF24 5HG United Kingdom |
|
Owner |
Charles M Willie & Co. (Chartering) Ltd. 6 Ocean Way Cardiff CF24 5HG United Kingdom |
|
Renamed |
02/2021 Rusader Republic of Panama, Panama city - Call sign: 3EQE3 Registered owner: Rivabulk Shipbrokers Ltd., Istanbul - Turkey Manager: Regency Ship Management SA, Istanbul - Turkey |
|
Latest data adjustment |
10 April 2024 |
