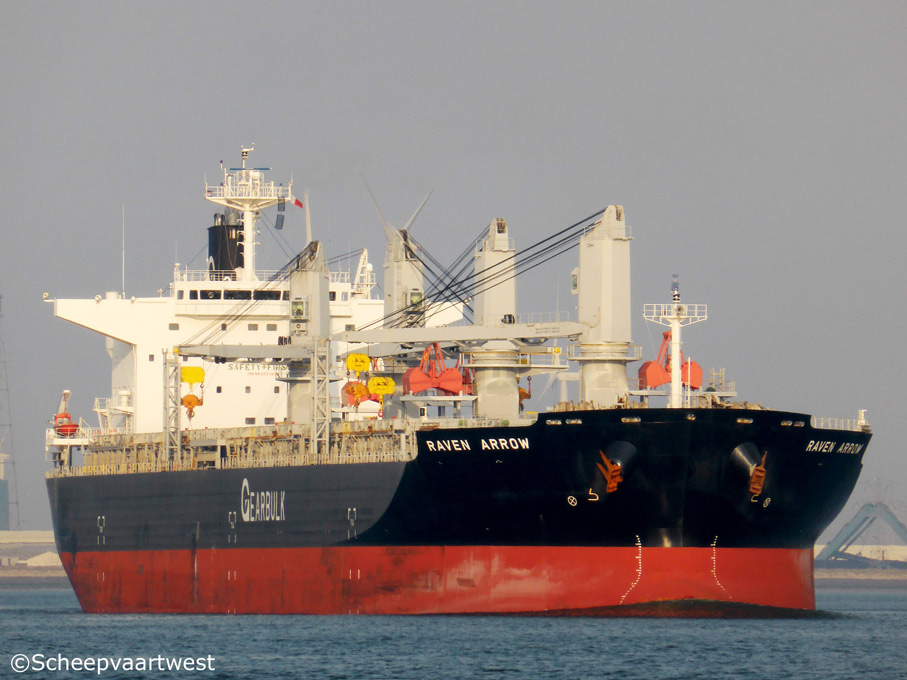

Westerschelde 23 April 2014 |
|
Name |
RAVEN ARROW |
|
Type |
General cargo ship - Strengthened for heavy cargo loading Open hatch - Jib crane vessel |
|
IMO-number |
9574858 |
|
Call sign |
C6CC2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
Republic of Panama, Panama City - Call sign: 3FXL7 |
|
GT |
46.295 t registered |
|
DWT |
Summer: 72.871 t |
|
NT |
21.763 t registered |
|
Length |
210,00 m overall |
|
Breadth |
36,00 m moulded |
|
Draught |
Summer: 13,83 m |
|
Moulded L x B x D |
202,00 x 36,00 x 20,20 m |
|
Registered L x B x D |
203,11 x 36,00 x 20,20 m |
|
Freeboard |
Summer: 6.438 mm |
|
Depth |
20,20 m moulded |
|
Speed |
Max.: 16,0 knots Service: 14,5 knots |
|
Built |
2012 |
|
Keel laid |
06.01.2012 |
|
Launch date |
21.07.2012 |
|
Date of completion |
27.11.2012 |
|
Builder |
Mitsui Engineering & Shipbuilding Co., Ltd. Chiba Shipyard |
|
Yard number |
1836 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W-Mitsui 5S60ME-C8 - 2 stroke single acting 5 cylinder 600 x 2.400 mm diesel engine 9.450 kW at 89,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 570 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary Vertical boiler - 7,0 bar Evaporation: 3,54 t/h Manufacturer: Alfa Laval Qingdao Ltd. |
|
Shaft generator |
4x Generators - 3.894 kVA |
|
Number of holds |
8 Hold 1: 15,30 x 15,60-20,4 x 20,50 m (1 bench) Hold 2-7: 19,50 x 30,60 x 20,50 m Hold 8: 17,70 x 17,00 - 23,80-30,60 x 20,50 m (2 benches) |
|
Total cargo hold capacity |
Bale & Grain: 87.462 m³ |
|
Tank capacities |
Fuel oil: 2.345 m³ Fresh water: 364 m³ Water ballast: 26.503 m³ |
|
Cargo gear |
4x Cranes - SWL each 45,0 t Jib Grabs: 4x 45 m³ |
|
Manager |
Misuga Kaiun Holland B.V. |
|
Operator |
Gearbulk |
|
Registered owner |
Adoramar Shipping Inc. |
|
Latest data adjustment |
01 August 2016 |
