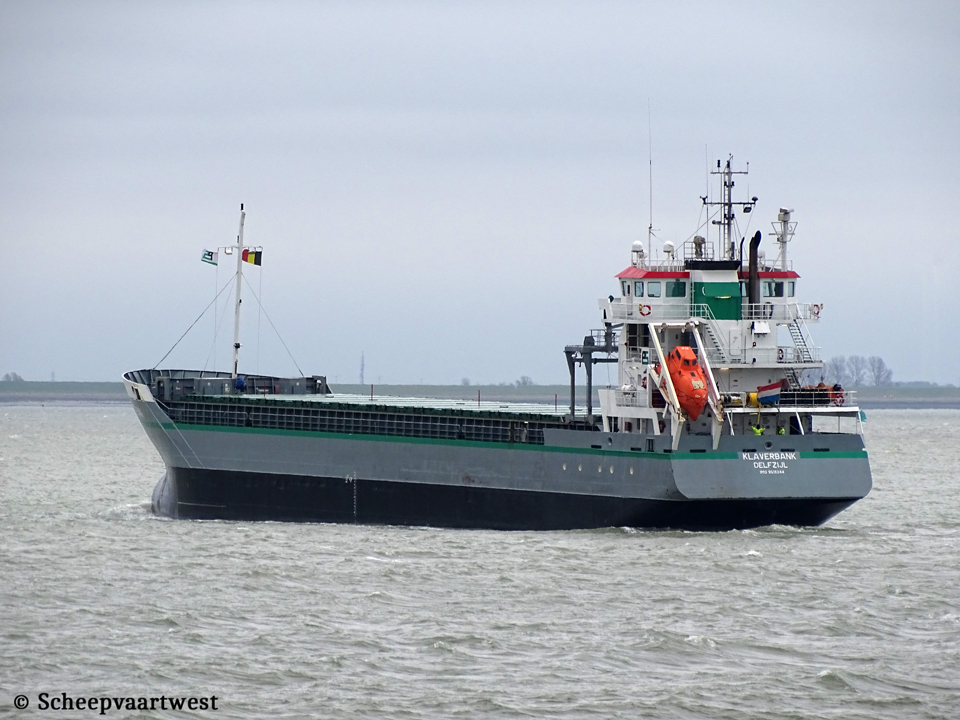

Westerschelde 17 September 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 17/09/19 | Westerschelde 03/07/18 | Westerschelde 23/10/15 | Westerschelde 10/01/20 | Westerschelde 31/01/20 | Westerschelde 31/01/20 | |||||
|
Name |
KLAVERBANK |
|
Previous names |
Launch as: Iceborg |
|
Type |
General cargo ship - Strengthened for Heavy Cargoes - Container cargoes in holds and on hatchcovers Single box-shaped hold, double hull and pontoon hatch covers |
|
IMO-number |
9518244 |
|
Call sign |
PCJI |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
3.739 t |
|
DWT |
Summer: 5.250 t |
|
DWCC |
Summer: 4.850 t |
|
NT |
1.491 t |
|
Light weight |
1.554 t |
|
Number of 20ft containers |
192 |
|
Length |
99,99 m overall 92,50 m between perpendiculars |
|
Breadth |
13,35 m moulded 13,43 m extreme |
|
Draught |
Summer: 6,15 m Winter: 6,02 m |
|
Air draft |
26,50 m in ballast |
|
Depth |
9,10 m moulded |
|
Speed |
11,0 knots |
|
Built |
2011 |
|
Keel laid |
15/12/2008 |
|
Launch date |
28/07/2010 |
|
Date of completion |
20/01/2011 |
|
Builder casco |
Shipyard Leda d.o.o. Korcula Croatia Yard number: Y9518244 |
|
Builder completion |
Scheepswerf Peters B.V. Kampen The Netherlands Yard number: 1102 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2 Vessel equipped with movable hold separations / grain bulkheads in various positions Bulkheads can be used as tweendeck |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L20 - 4 strike single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.448 bhp at 1.000 rpm Starter type: Compressed air Built: 2011 Manufacturer: Wärtsilä NSD, Zwolle - The Netherlands |
|
Propellers |
1x Controllable pitch propeller - 4 bladed diameter 2.950 mm |
|
Shaft generator |
1x 544 kVA |
|
Generators |
2x Scania DI-9 60M diesel generatorsets each 212,5 kW |
|
Emergency generator |
1x diesel generatorset 77,5 kVA |
|
Bow thruster |
1x Veth VT-240 - 275 kW |
|
Number of holds |
1 61,80 x 11,20 x 9,60 m |
|
Hold capacity |
Bale / Grain: 6.645 m³ / 234.650 ft³ |
|
Number of hatches |
1 61,80 x 11,20 m Handling of all pontoon hatch panels by gantry crane on coaming rails |
|
Hatch type |
Coops & Nieborg pontoon hatches |
|
Max. permitted loads |
Tank top: 15,0 t/m² Hatch cover: 1,6 t/m² |
|
Ventilation |
Electrical ventilation, about 6 air changes per hour basis empty hold. Vessel is equipped with dehumidifier system |
|
Tank capacities |
HFO: 366 m³ MGO: 50,3 m³ Fresh water: 42 m³ Water ballast: 1.800 m³ Lub oil: 8,8 m³ Dirty oil: 7,7 m³ Sewage: 8,0 m³ |
|
Lifting equipment |
1x Gantry crane - SWL 15,0 t |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Bankship IV BV1 Delfzijl - The Netherlands Care of Pot Scheepvaart Handelskade West 28-A 9934 AA Delfzijl The Netherlands |
|
Latest data adjustment |
01 September 2022 |
