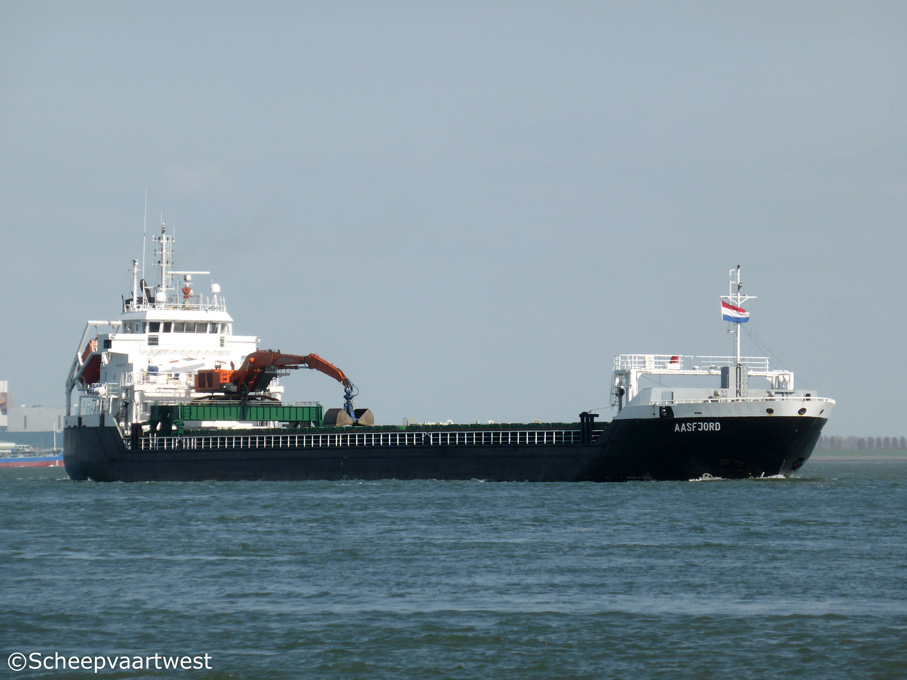

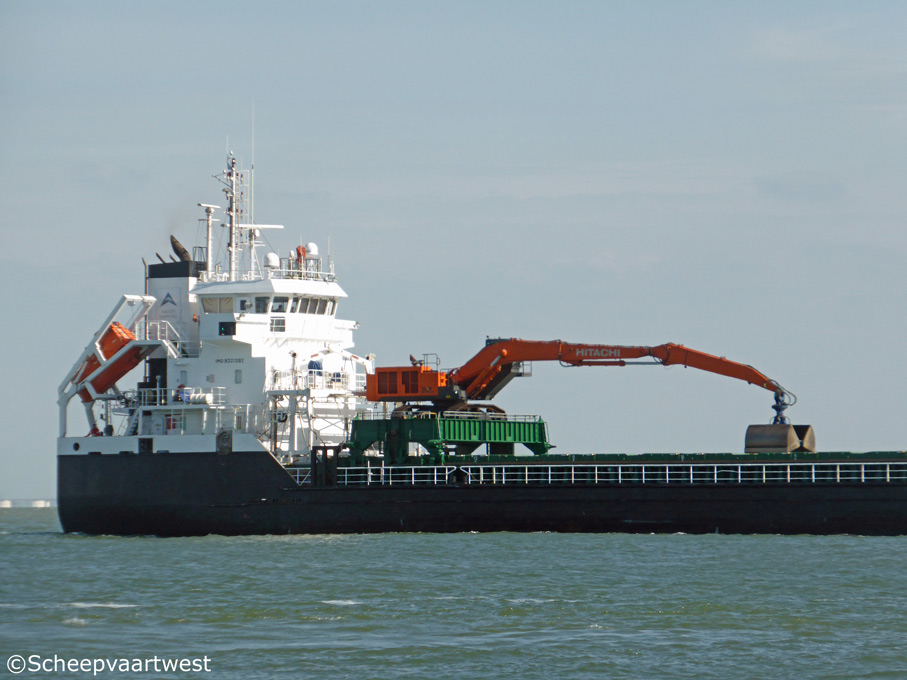

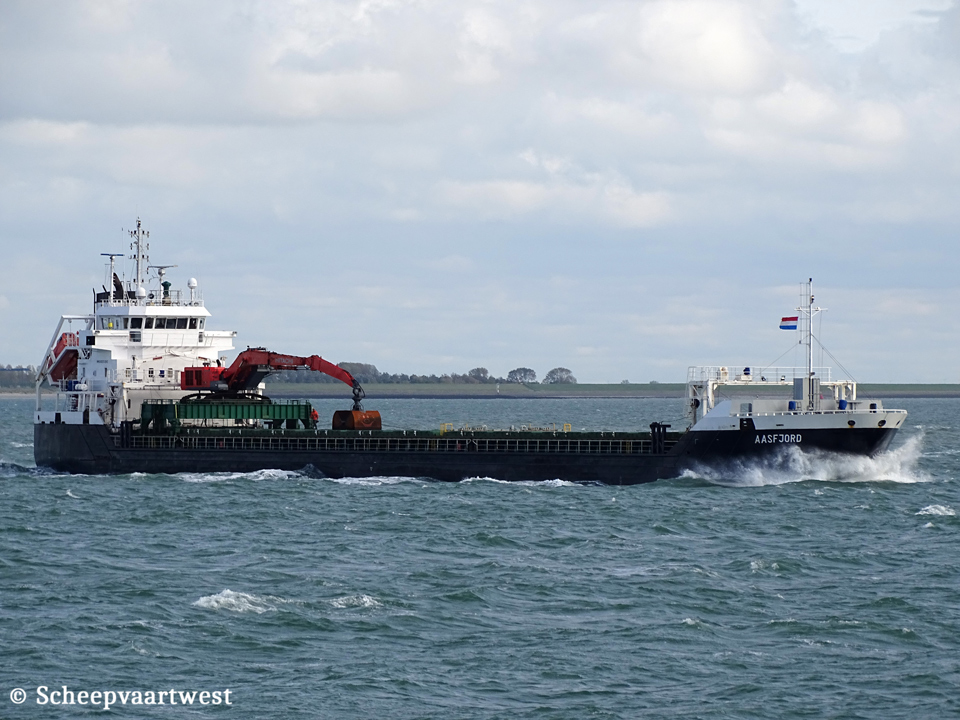

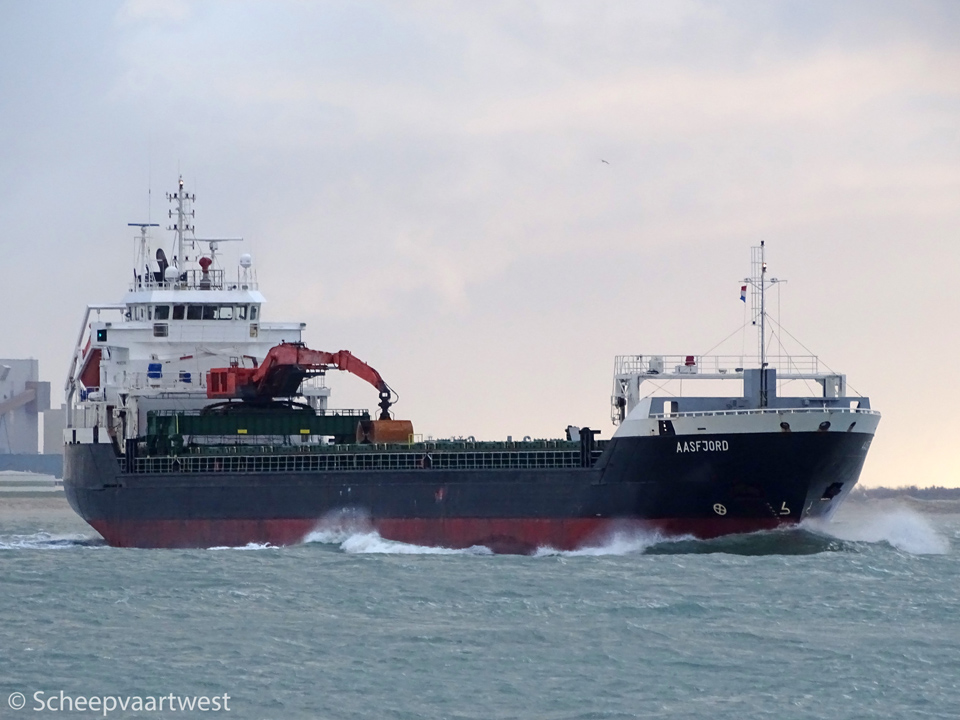

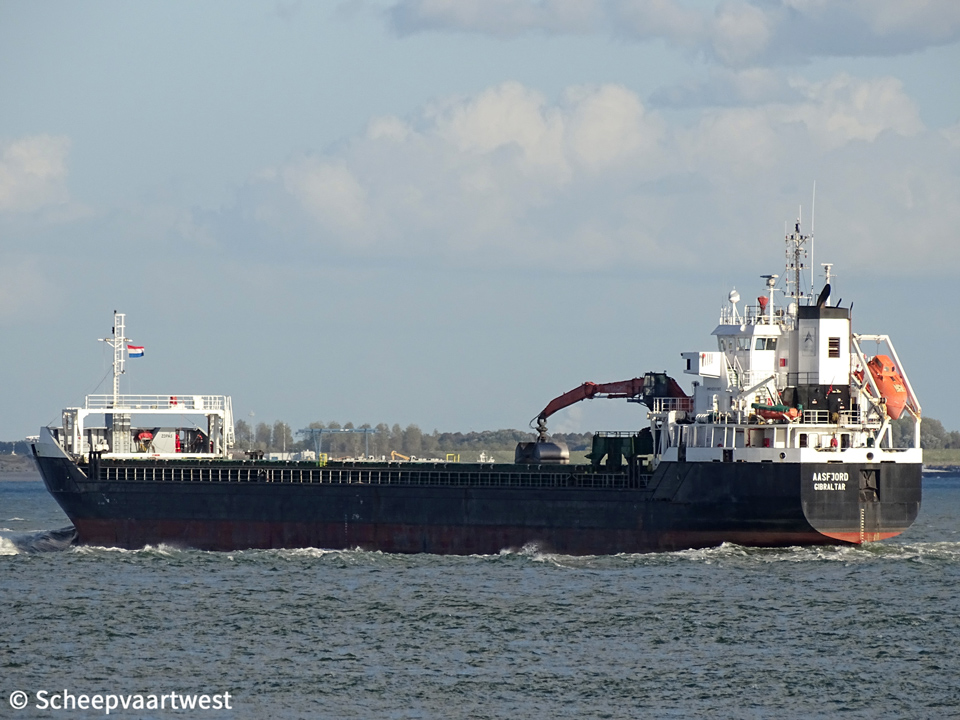

Westerschelde 26 November 2017 |
 |
 |
 |
 |
 |
||||
| Westerschelde 26/11/17 | Westerschelde 01/05/15 | Westerschelde 01/05/15 | Westerschelde 24/09/18 | Westerschelde 09/10/19 | ||||
|
Name |
AASFJORD |
|
Previous names |
2006 - 10/2014 Humberborg |
|
Type |
General dry cargo ship - Heavycargo - Container ship Selfdischarger |
|
IMO-number |
9321392 |
|
Call sign |
CQLC |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
|
|
GT |
4.266 |
|
DWT |
Summer: 6.053 t |
|
DWCC |
Summer: 9.300 t Winter: 9.150 t |
|
NT |
2.256 |
|
Number of 20ft containers |
256 |
|
Length |
113,76 m overall 107,64 m between perpendiculars |
|
Breadth |
14,60 m |
|
Draught |
6,57 m |
|
Air draft |
31,10 m from keel to top mast |
|
Freeboard |
1.542 mm |
|
Depth |
8,10 m |
|
Speed |
12,0 knots loaded 13,0 knots ballast |
|
Built |
2006 |
|
Keel laid |
05/07/2004 |
|
Launch date |
2005 |
|
Delivery date |
28/04/2006 |
|
Builder casco |
Maritim Sp. z.o.o. Gdansk Poland |
|
Builder completion |
Royal Niestern Sander BV Delfzijl The Netherlands |
|
Yard number |
826 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L32 - 4 stroke single acting 6 cylinder 320 x 400 mm combustion engine 2.999 kW / 4.077 hp at 750 rpm Built: 2005 Builder: Wärtsilä Finland OY, Vaasa - Finland |
|
Electrical propulsion gen. |
1x 408 kW - 400 Volt |
|
Propellers |
1x Controllable pitch propeller - aft at 194 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V |
|
Shaft generator |
1x 510 kVA - 408 kW |
|
Generators |
2x Diesel generatorsets each 231 kVA - 185 kW - 272 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 150 hp |
|
Bow thruster |
1x 350 kW |
|
Number of holds |
2 Hold 1: 38,22 x 11,70 x 8,98 m Hold 2: 44,48 x 11,70 x 8,98 m Narrowing fore/aft - Steel-floored |
|
Cargo hold capacity |
Hold 1: 121.521 ft³ Hold 2: 162.430 ft³ Total: 283.951 ft³ / 8.375 m³ |
|
Hold ventilation |
30 Air changes per hour |
|
Number of hatches |
2 Hatch 1: 38,22 x 11,70 m Hatch 2: 44,48 x 11,70 m |
|
Max. permitted loads |
Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel oil: 301 m³ |
|
Cargo gear |
1x Hitachi ZX870 LCH 5 Outreach from ship's side: abt. 16,00 m Discharge capacity: abt. 600 t/h |
|
ISM & commercial manager |
Aasen Shipping AS 60 Serklauvvegen 5440 Mosterhamn Norway |
|
Previous managers |
|
|
Registered owner |
Aasen Bulk AS Serklauvvegen 5440 Mosterhamn Norway |
|
Previous names & owners |
|
|
Latest data adjustment |
22 October 2025 |
