Westerschelde 01 May 2015 |
Name |

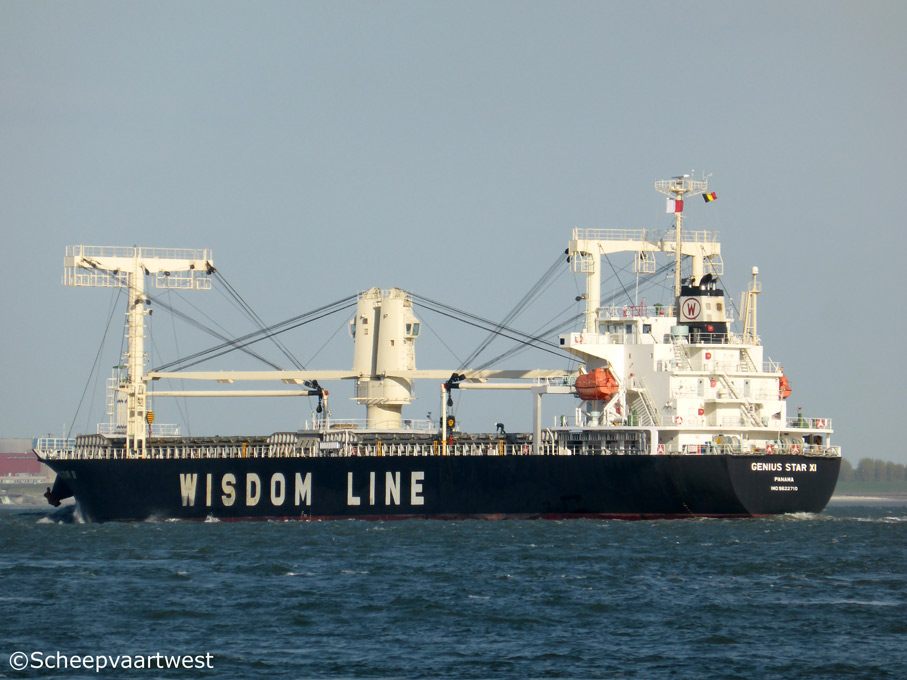

GENIUS STAR XI |
Type |
General cargo carrier |
IMO-number |
9622710 |
Call sign |
3FGS3 |
Flag |
Republic of panama |
Port of registry |
Panama City |
GT |
9.984 t registered |
DWT |
Summer: 13.663 t |
NT |
4.297 t registered |
Length |
124,98 m overall |
Breadth |
21,00 m moulded |
Draught |
Summer: 9,02 m |
Moulded L x B x D |
115,49 x 21,00 x 14,40 m |
Registered L x B x D |
117,59 x 21,00 x 14,40 m |
Freeboard |
Summer: 5.416 mm |
Depth |
14,40 m moulded |
Speed |
Max.: 15,0 knots Service: 13,2 knots |
Built |
2012 |
Keel laid |
30.03.2012 |
Launch date |
05.07.2012 |
Date of completion |
25.09.2012 |
Builder |
Kegoya Dock Co., Ltd. |
Yard number |
1139 |
Hull material |
Steel |
Main engine |
1x MAN B&W/Hanschin 6L35MC - 2 stroke single acting 6 cylinder 350 x 1.050 mm diesel engine 3.900 kW at 210,0 rpm Manufacturer: The Hanshin Diesel Works, Ltd. |
Propeller shaft |
1x Sea water lubrication shaft Diameter: 360 mm |
Propellers |
1 |
Boilers |
1x Auxiliary vertical boiler - 7.0 bar Evaporation: 1,15 t/h Manufacturer: Miura Co., Ltd. |
Generators |
4x Diesel generatorsets 1.550 kVA |
Cargo hold capacity |
Grain: 20.747 m³ Bale: 19.029 m³ |
Tank capacities |
Fuel oil: 875 m² Fresh water: 648 m³ Water ballast: 4.013 m³ |
Cargo gear |
2x Cranes - SWL 30,7 t each 2x Derricks - SWL 30,0 t each |
Manager |
Wisdom Marine Lines S.A. Room 711, 7th Floor, 237, Fuxing S Road, Section 2, Da-an District |
Operator |
Wisdom Marine group |
Registered owner |
GS Navigation S.A. Republic of Panama |
Latest data adjustment |
05 October 2016 |
